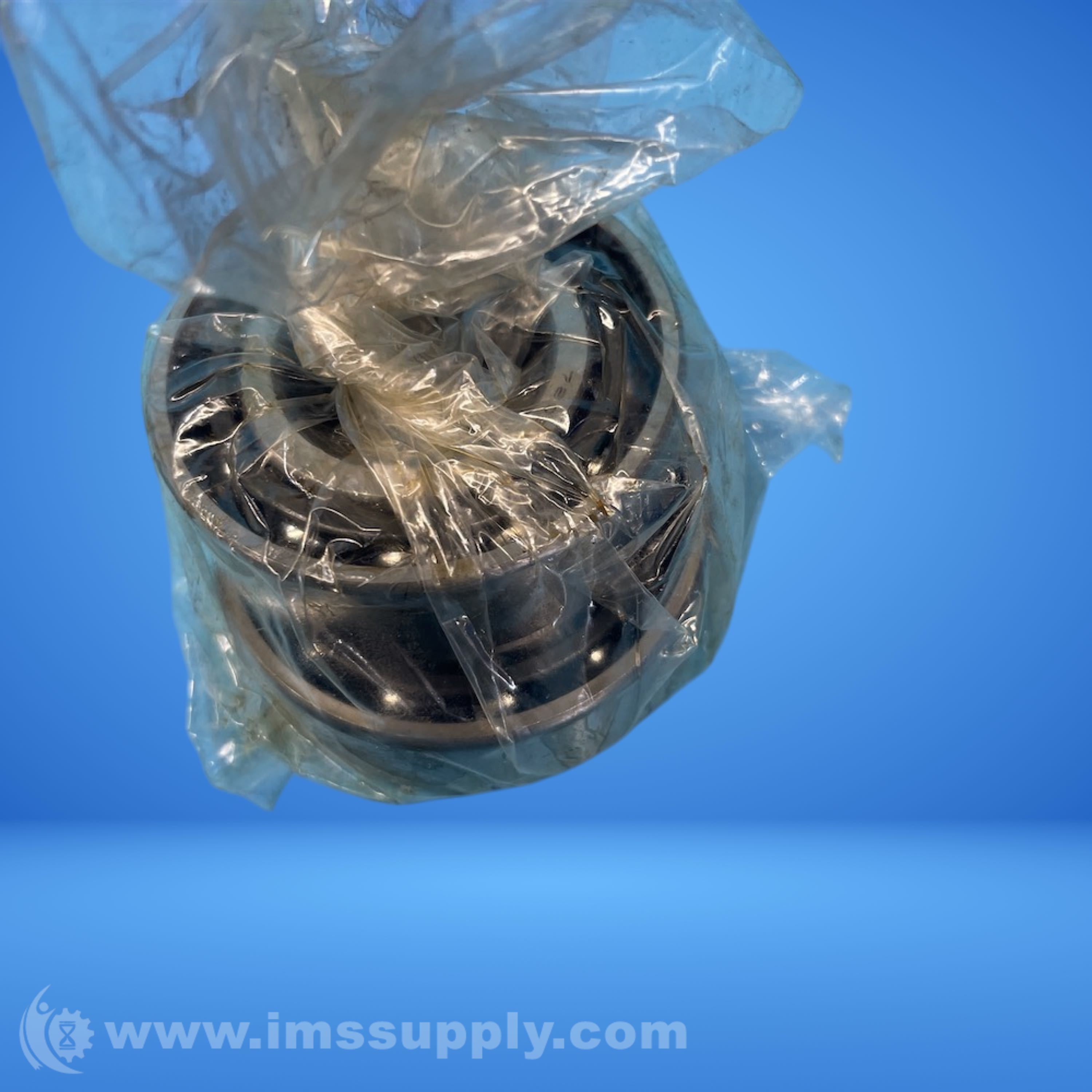

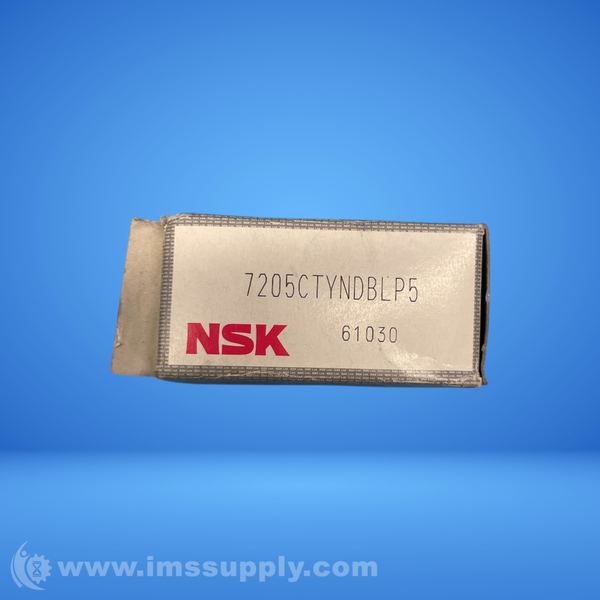

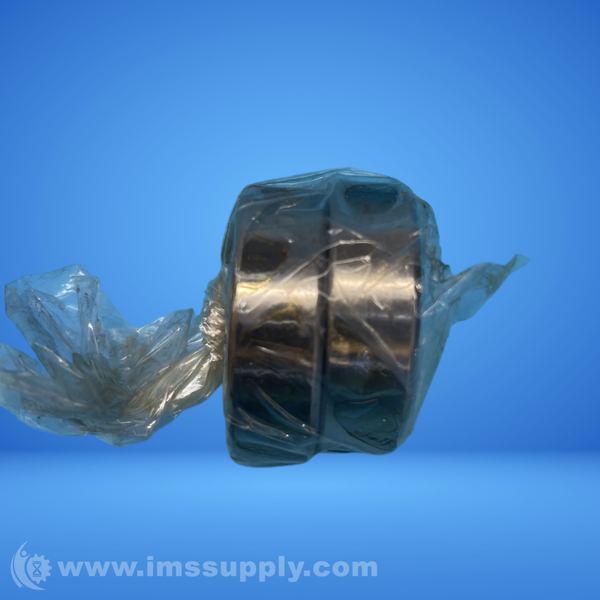

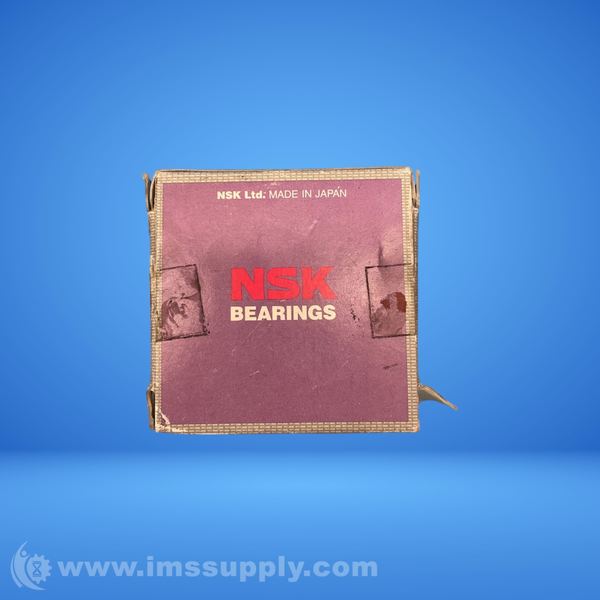

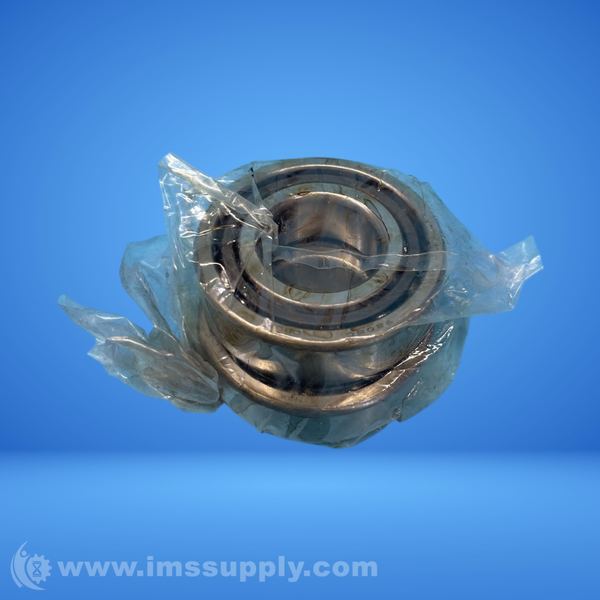

NSK 7205CTYNDBLP5 ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 7205CTYNDBLP5
IMS Product Code: 2125689
Packaging: Sold Individually
Description:
NSK 7205CTYNDBLP5 Angular Contact Ball Bearing
Angular contact ball bearing made of high carbon chromium steel with 25 mm bore diameter, 52 mm outer diameter, and 15 mm width.
Specifications
- Bore Diameter: 25 mm
- Outer Diameter: 52 mm
- Width: 15 mm
- Bearing Material: High Carbon Chromium Steel
- Contact Angle: 15 deg
- Enclosure: Open
- Outer Ring Type: Flat
- Load Direction: Radial
- Working Point: 12.7 mm
- Chamfering Size: Min 1 mm
- Coefficient: 14
- Standards: JIS Grade, Class 5
- Type of Ball Bearing: Angular Contact
- Primary Dimensions (mm): d = 25, D = 52, B = 15, r (min) = 1, r 1 (min) = 0.6
- Weight (Reference): 0.13 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
