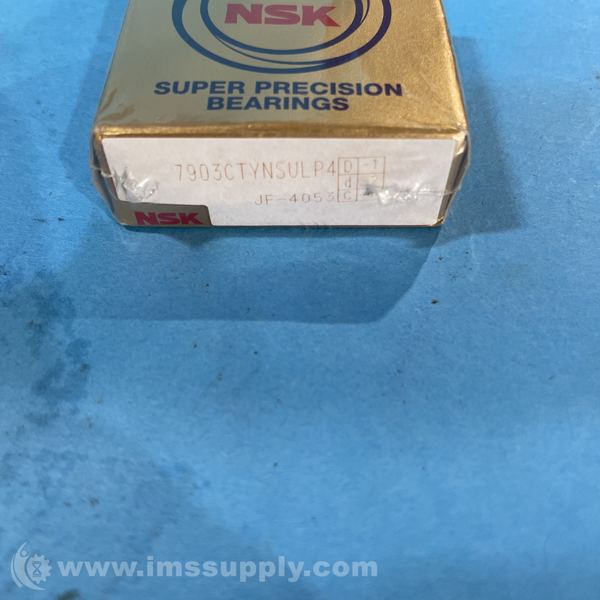

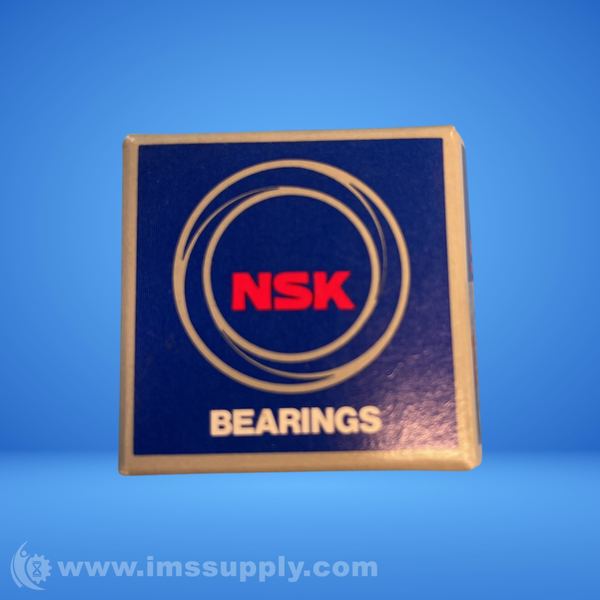

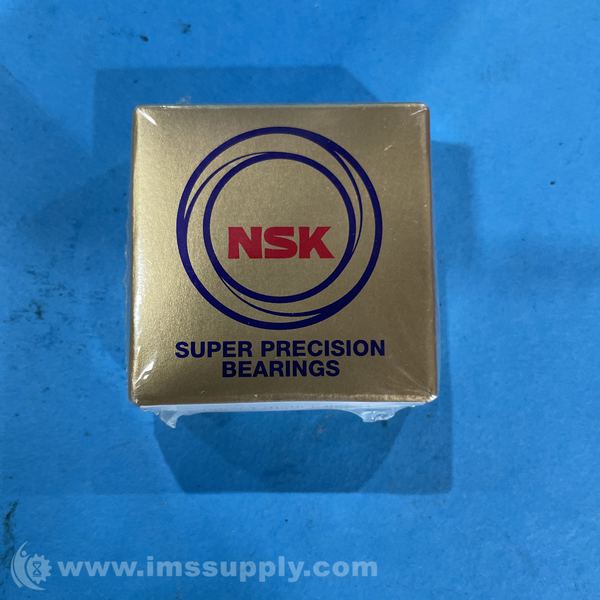

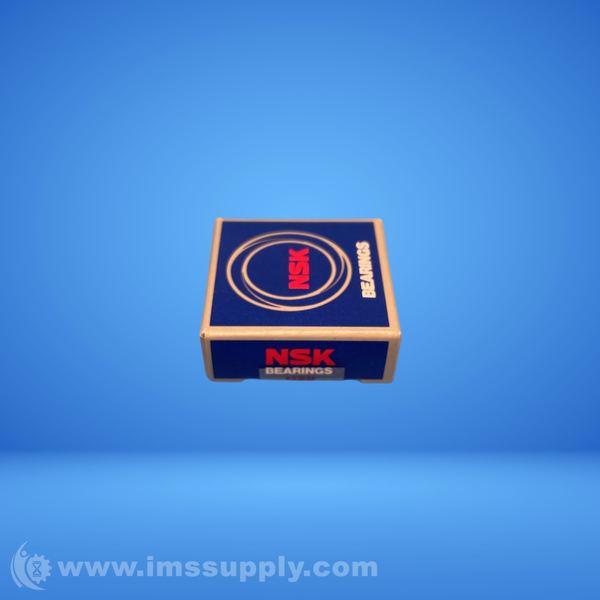

NSK 7903CTYNSULP4 ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 7903CTYNSULP4
IMS Product Code: 2136481
Packaging: Sold Individually
Description:
NSK 7903CTYNSULP4 Angular Contact Ball Bearing
Single row angular contact ball bearing with contact angle C: 15 degrees; polyamide resin cage, ball guided; universal combination bearing; light preload; P4: ISO Class 4.
Specifications
- Bore diameter: 17 mm
- Outside diameter: 30 mm
- Width: 7 mm
- Cr: 5.25 kN
- C0r: 2.94 kN
- Limiting speed: 60000 r/min
- Net weight: 0.017 kg
- Number of rows: 1
- Contact angle: 15 degrees
- Cage: Resin cage
- Bore type: Cylindrical
- Outer diameter type: Cylindrical
- Arrangement: Universal matching
- Bearing material: Steel
- Tolerance class: Class4 (P4)
- Internal clearance: CN
- Lubricant in bearing: None
- r min.: 0.3 mm
- r1 min.: 0.15 mm
- a: 6.6 mm
- da min.: 19.5 mm
- Da max.: 27.5 mm
- Db max.: 28.8 mm
- ra max.: 0.3 mm
- rb max.: 0.15 mm
- Pa: 2.09 kN
- Preload: 25N
- Axial Rigidity: 21N/µm
- Measured axial clearance: 0µm
- Recommended Grease Quantities: 0.12 g/brg
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
