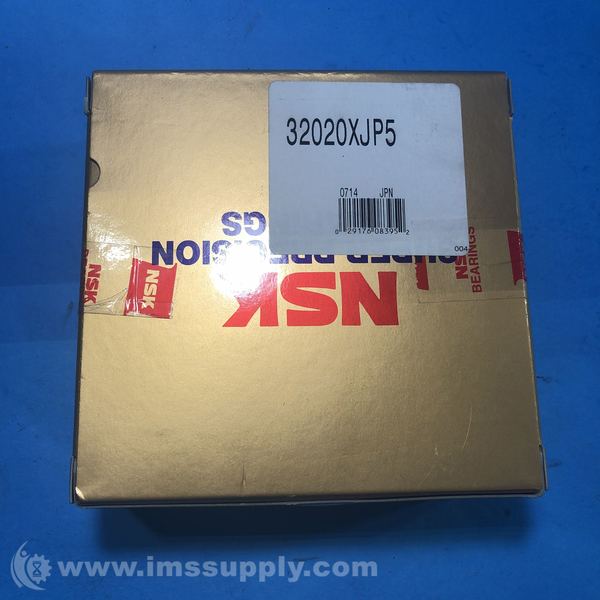

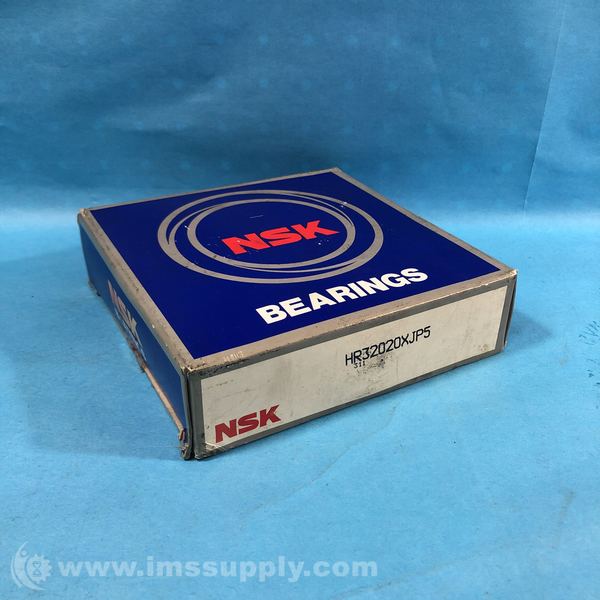

NSK HR32020XJP5 TAPERED ROLLER BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: HR32020XJP5
IMS Product Code: 1907998
Packaging: Sold Individually
Sold Individually
Pack of 2
Description:
NSK HR32020XJP5 Tapered Roller Bearing
Single-row tapered roller bearing with inner diameter 100 mm, outer diameter 150 mm, and width 32 mm.
Specifications
- d: 100 mm
- D: 150 mm
- T: 32 mm
- B: 32 mm
- C: 24 mm
- Cup r (min.): 1.5 mm
- Cone r (min.): 2 mm
- Cr: 216000 N
- C0r: 294000 N
- Grease: 2200 min-1
- Oil (Oil-bath): 3000 min-1
- a: 32.5 mm
- da (min.): 112 mm
- Db (min.): 144 mm
- Da (min.): 136 mm
- Da (max.): 141 mm
- Sa: 6 mm
- Sb: 8 mm
- db (max.): 109 mm
- ra (max.): 2 mm
- e: 0.46
- Y0: 0.72
- Y1: 1.3
- Mass: 1.95 kg
- Precision: P5 Precision (Higher than P6)
- Material: High carbon chrome bearing steel
- Shield shape: Open type
- Accuracy: Grade 5
