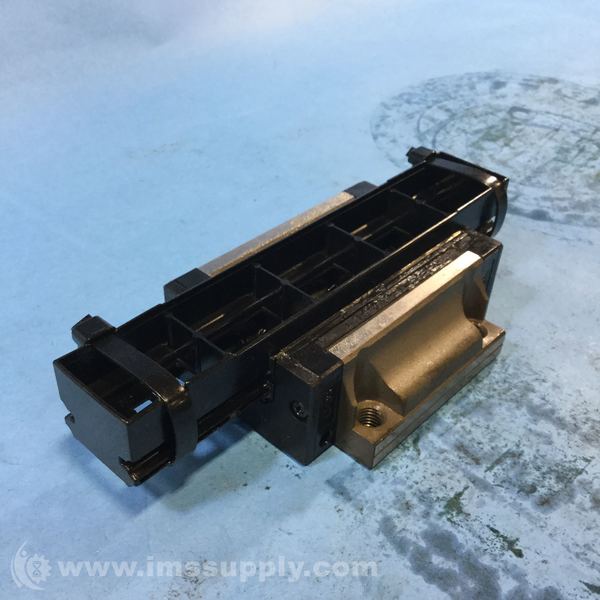

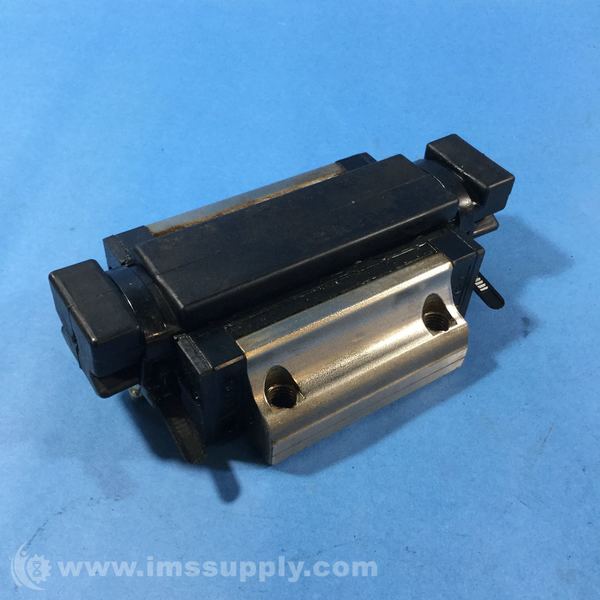

NSK LAH35EL LINEAR BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: LAH35EL
IMS Product Code: 1768099
Packaging: Sold Individually
Description:
NSK LAH35EL Linear Bearing
Flange type linear ball bearing unit with 34 mm bore diameter, 100 mm outside diameter, and 109 mm width.
Specifications
- Total Height H: 48 mm
- Block Height K: 38.5 mm
- Width W: 100 mm
- Block Length L: 109 mm
- B: 82 mm
- J: 62 mm
- L1: 80 mm
- Block Type: Flange Type
- Mounting Hole: 4 Tapped holes
- Hole size: M6 x 0.75
- Dynamic C: 3960 N
- Static C0: 7010 N
- Bore Dia: 34 mm
- Outside Dia: 100 mm
- Width Dia: 109 mm
- Inside diameter(I.D.): 34 mm
- Outside diameter(O.D.): 100 mm
- Thickness(W.D.): 109 mm
- Bearing Type: Linear Ball Bearing Unit
- Size(metric): 34,00 mm * 100,00 mm * 109,00 mm
- Seals Type: No Seal
- Precision Rating: DIN: P2~P0; ANSI: ABEC9~ABEC1; JIS: JIS~JIS0; ISO: CLASS2~NORMAL CLASS; GB/T30794 B~G
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 42 minutes.
