NTN 4T-33209 TAPERED ROLLER BEARING
Quick Overview
Manufactured By: NTN BEARING
Manufacturer Part Number: 4T-33209
IMS Product Code: 1911748
Packaging: Sold Individually
Description:

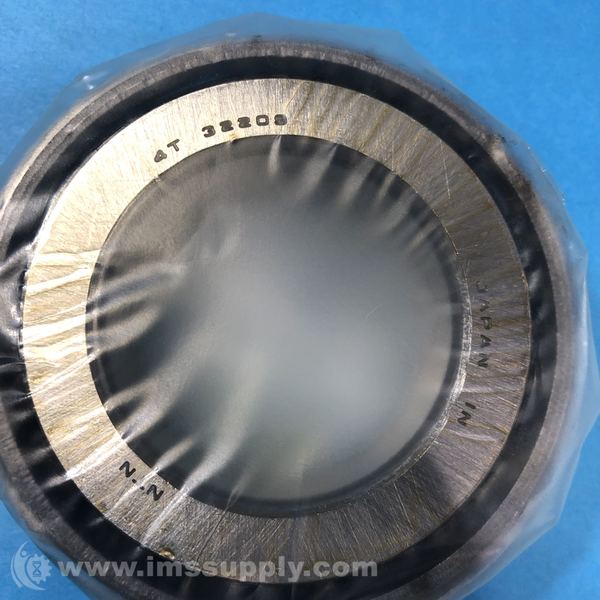

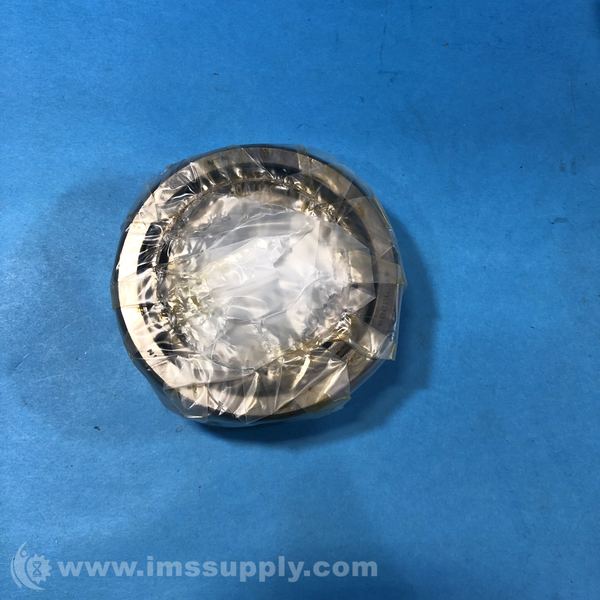

Ntn 4T-33209 Tapered Roller Bearing
Single-row, metric-series tapered roller bearing measuring 45x85x32 mm. Features separable cone and cup design with pressed steel cage for high combined radial and axial loads.
Specifications
- Bore Type: Round
- Cage Material: Pressed Steel/Sheet steel cage
- Cone Width: 32mm
- Cup Width: 25mm
- Dinside Diameter/ Bore Diameter (ID): 45 mm
- Dynamic Load Rating/Basic dynamic load rating: 107/119 kN
- Limiting speed - Grease/Maximum Speed - Grease: 4400 rpm/min-1
- Limiting speed - Oil/Maximum Speed - Oil: 5900 rpm/min-1
- Material/Bearing Material: Case Carburised Steel/Chrome Steel
- Number of Rows: 1/Single Row
- Outside Diameter (OD): 85 mm
- Race Type: Tapered
- Roller Material: Case Hardening Steel
- Series: 4T-33209
- Static Load Rating/Basic static load rating: 141 kN
- Type/Bearing Type: Taper Roller/Tapered roller bearings
- Width (B): 32 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 55 minutes.
