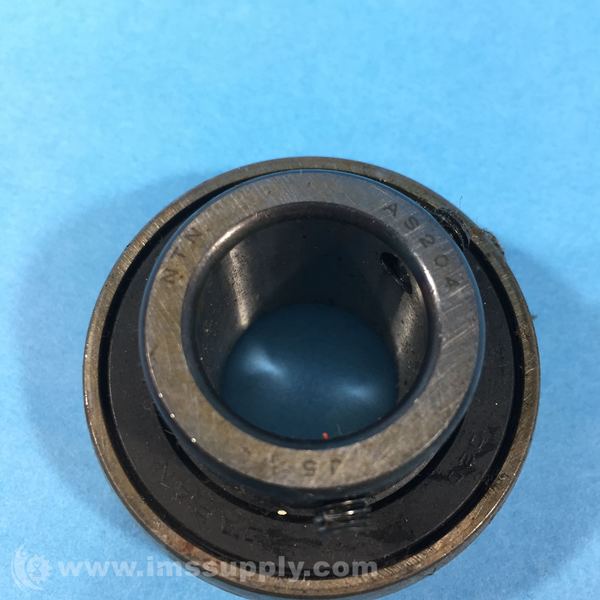

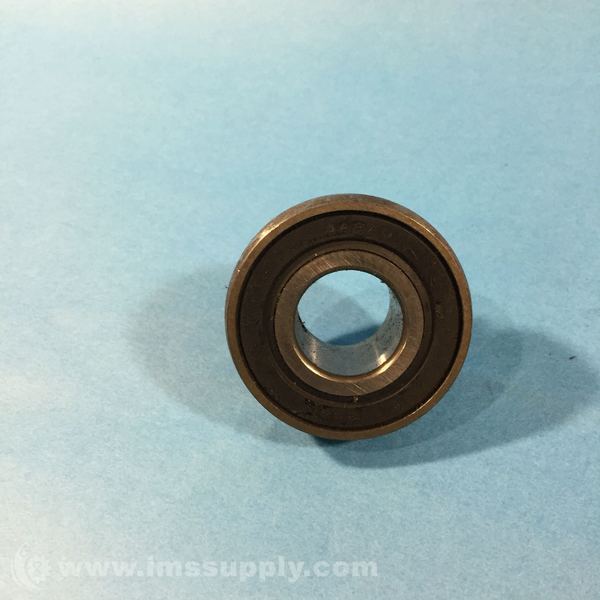

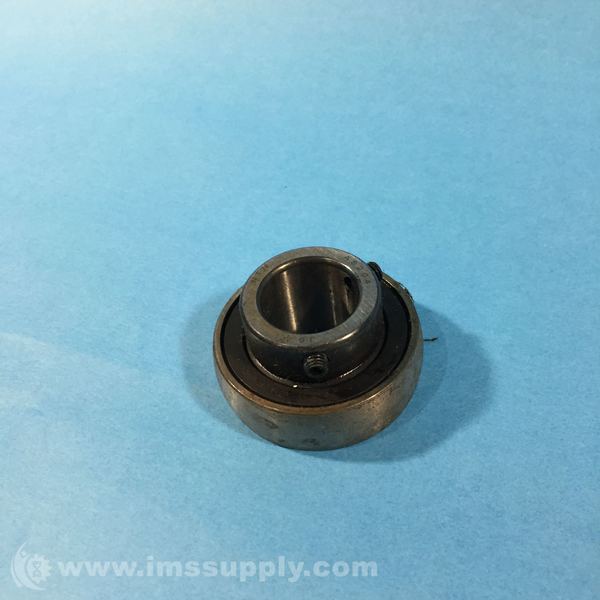

NTN BEARING AS204 INSERT BEARING
Quick Overview
Manufactured By: NTN BEARING
Manufacturer Part Number: AS204
IMS Product Code: 1836558
Packaging: Sold Individually
Description:
NTN Bearing AS204 Insert Bearing
Insert Bearing
Specifications
- Type: Insert Bearing
- Bore Type: Round
- Bearing Type: Ball Bearing
- Material: Through Hardened Steel
- Ball Material: Through Hardened
- Limiting Speed - Grease: 6700 RPM
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Precision Rating: ISO Class 0
- Performance: Standard Duty
- Locking Device: Set Screw
- Lubrication: Non-Relubricatable
- Basic Outer Ring: 204
- Clearance: CN
- Static Load Rating: 1500 lbf, 6650 N, 6.65 kN
- Dynamic Load Rating: 2880 lbf, 12800 N, 12.80 kN
- Enclosure: Double Sealed
- Weight: 0.289 lb, 0.131 kg
- Operating Temperature Range: -40 to 250 degrees F, -40 to 120 degrees C
- d: 0.7874 in, 20.000 mm
- D: 1.8504 in, 47.000 mm
- C: 0.5512 in, 14.000 mm
- B: 0.9843 in, 25.000 mm
- r: 0.0394 in, 1.000 mm
- ds: M5x0.8
- G: 0.1654 in, 4.200 mm
- d4: 1.1654 in, 29.600 mm
- S1: 0.7087 in, 18.000 mm
- S: 0.2756 in, 7.000 mm
- Radial Dynamic Load Rating: 2878 lbf, 12800 N
- Radial Static Load Rating: 1495 lbf, 6650 N
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships today if ordered in the next 13 hours and 17 minutes.
