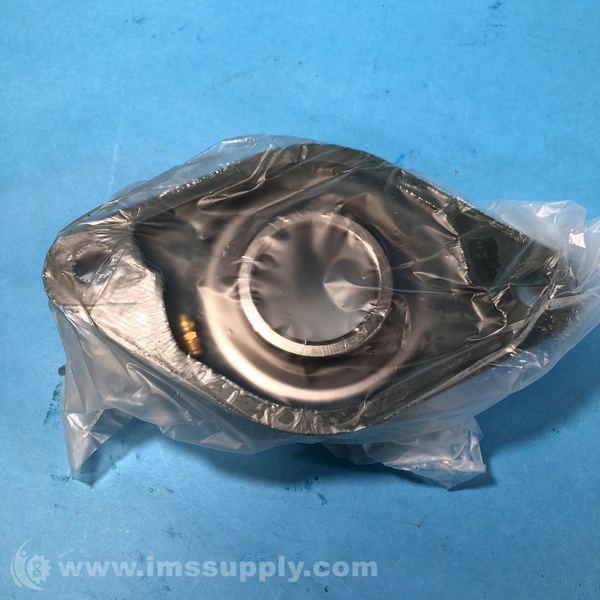

NTN BEARING UCFL208D1 2-BOLT RHOMBUS FLANGED UNIT
Quick Overview
Manufactured By: NTN BEARING
Manufacturer Part Number: UCFL208D1
IMS Product Code: 1914521
Packaging: Sold Individually
Description:
Ntn Bearing UCFL208D1 2-Bolt Rhombus Flanged Unit
2-Bolt Rhombus Flanged Unit
Specifications
- Type: 2-Bolt Rhombus Flanged Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC208D1
- Housing Number: FL208D1
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- End Type: Open
- Performance: Light Duty
- Dynamic Load Rating: 6542 lbf, 29100 N, 29.10 kN
- Static Load Rating: 4002 lbf, 17800 N, 17.80 kN
- Rotational Speed [Max]: 3700 RPM
- Weight: 1.510 lb, 0.680 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- Lubrication: Outer Ring Relubricatable
- d: 1.5750 in, 40.000 mm
- H: 6.8750 in, 175.0 mm
- L: 3.9375 in, 100.0 mm
- J: 5.6719 in, 144.0 mm
- A: 1.4062 in, 36.0 mm
- A0: 2.0156 in, 51.200 mm
- A1: 0.5937 in, 15.0 mm
- A2: 0.8281 in, 21.0 mm
- N: 0.6250 in, 16.0 mm
- B: 1.9370 in, 49.200 mm
- S: 0.7480 in, 19.000 mm
- F: 0.1772 in, 4.500 mm
- Ball Material: Through Hardened
- Bore Type: Cylindrical
- Outside Ring Width: 0.8270 in, 21.000 mm
- Inside Ring Width: 1.9370 in, 49.200 mm
- Clearance: CN
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0
- Series: UCFL2
- Standards Met: AFBMA, ISO
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 17 In Stock
Ships today if ordered in the next 13 hours and 17 minutes.
