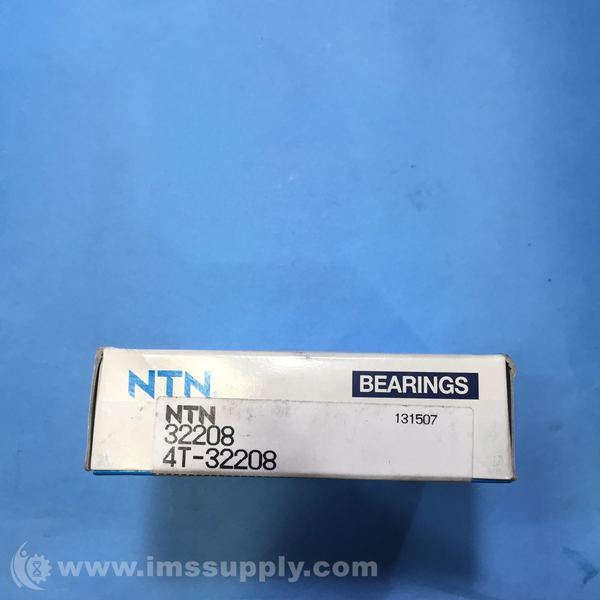

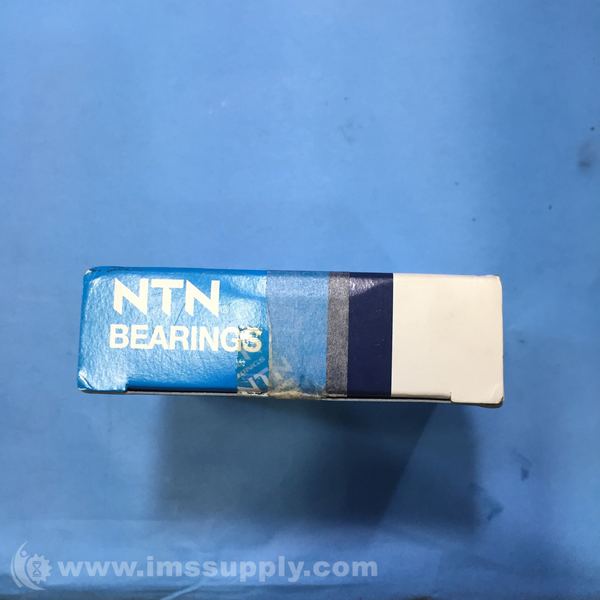

NTN 32208 TAPERED ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 32208
IMS Product Code: 1866853
Packaging: Sold Individually
Description:
NTN 32208 Tapered Roller Bearing
Tapered roller bearing with 40 mm bore, 80 mm outside diameter, and 24.75 mm width.
Specifications
- Assembly Type: Cone & Cup
- Bore Diameter: 40 mm
- Outside Diameter: 80 mm
- Overall Width: 0.9744 in
- Precision Rating: Class 0
- Bore Type: Round
- Fillet Radius: 0.0600 in, 1.500 mm
- Closure Type: Open
- Inner Ring Width: 0.9055 in, 23.000 mm
- Bearing Material: Case Carburized Steel
- Operating Temperature Range: -40 to 250 ºF
- Max Rpm: 6600 rpm
- Type: Tapered Roller Bearing
- Limiting Speed - Oil: 6600 RPM
- Limiting Speed - Grease: 4900 RPM
- Style: Cone & Cup
- Configuration: One
- Lubrication: w/o Oil Hole
- e (Axial Load Factor): 0.37
- Y2 (Axial Load Factor): 1.60
- Y0 (Axial Load Factor): 0.88
- Static Load Rating: 21000 lbf/93500 N/93.50 kN
- Dynamic Load Rating: 17900 lbf/79500 N/79.50 kN
- Enclosure: Open
- d: 1.5748 in/40.000 mm
- D: 3.1496 in/80.000 mm
- C: 0.7480 in/19.000 mm
- B: 0.9055 in/23.000 mm
- a (Effective Load Center): -0.2264 in/-5.750 mm
- T: 0.9744 in/24.750 mm
- r: 0.0600 in/1.500 mm
- R: 0.06 in/1.5 mm
- da: 1.91 in/48.5 mm
- db: 1.89 in/48.0 mm
- Da: 2.81 in/71.5 mm
- Da min: 2.68 in/68.0 mm
- Db: 2.95 in/75.0 mm
- Dynamic Load Capacity N: 88000.0
- Dynamic Load Capacity kN: 88.0
- Max Speed RPM Grease: 4 900
- Max Speed RPM Oil: 6 600
- Radius Inch: 0.0591
- Radius MM: 1.5
- Cone Width Inch: 0.9055
- Cone Width MM: 23.0
- Cup Width Inch: 0.748
- Cup Width MM: 19.0
- Static Load Capacity N: 93500.0
- Static Load Capacity kN: 93.5
- Cage Type: Steel
- Seals Or Shields: Open Type
- Clearance: Standard
- Dyanmic Load Rating (kN): 79.5
- Static Load Rating (kN): 93.5
- Grease Limiting Speed (r/min): 4900
- Oil Limiting Speed (r/min): 6600
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
