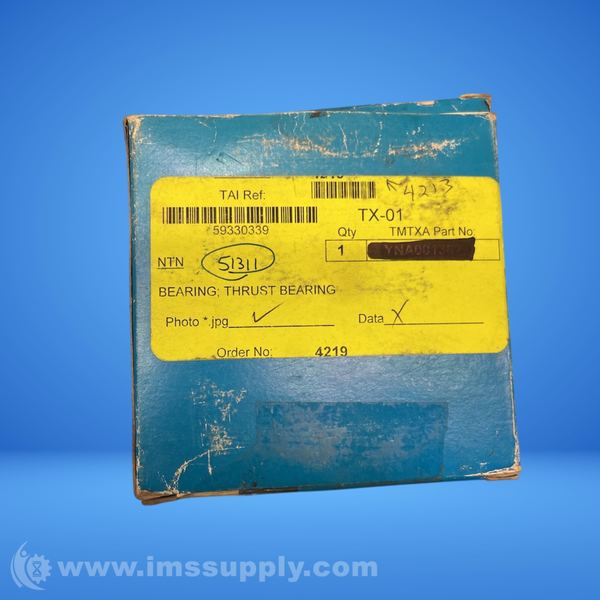

NTN 51311 THRUST BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 51311
IMS Product Code: 2152170
Packaging: Sold Individually
Description:
NTN 51311 Thrust Ball Bearing
Single Direction Thrust Ball Bearings
Specifications
- Type: Thrust Ball Bearing
- Bore Type: Round
- Outside Ring Type: Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 2300 RPM
- Limiting Speed - Grease: 1600 RPM
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 55303 lbf
- Dynamic Load Rating: 26752 lbf
- Enclosure: Open
- Weight: 2.822 lb
- Operating Temperature Range: -40 to 250 degrees F
- d: 2.1650 in
- D1: 2.2441 in
- d1: 4.1339 in
- D: 4.1339 in
- T: 1.3780 in
- r: 0.0433 in
- da min: 3.3465 in
- Da max: 3.3465 in
- ras max: 0.0394 in
- Bore Diameter: 55 mm
- Face Type: Flat Back
- Load Capacity: 246000 N
- Maximum Speed: 1600 RPM Grease/2300 RPM Oil
- Number of Rows: 1
- Outside Diameter: 105 mm
- Series: 513
- Temperature Rating: -40 to 120 degrees C
- Thrust Direction: Single
- Width: 35 mm
- Size: 55x105x35mm
- Dimensions: 55x57x105mm
- Country of Origin: Japan

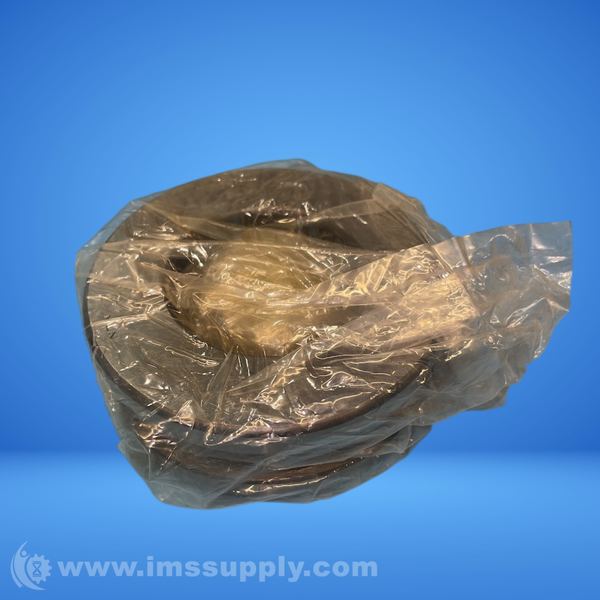

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 9 minutes.
