NTN 6003 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6003
IMS Product Code: 2158953
Packaging: Sold Individually
Description:

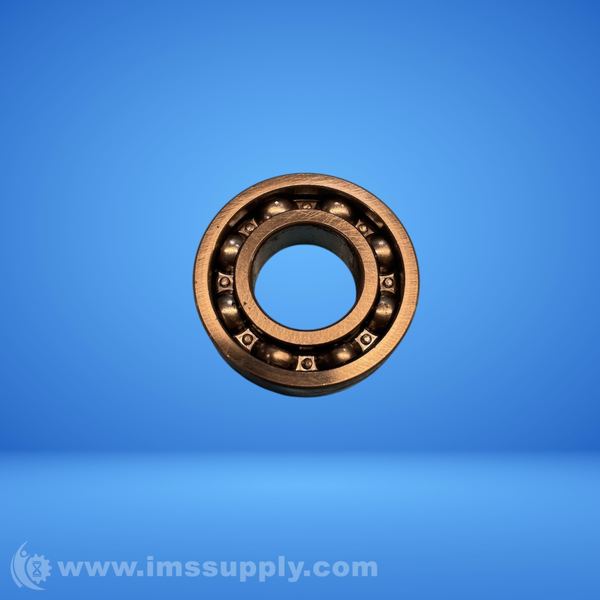

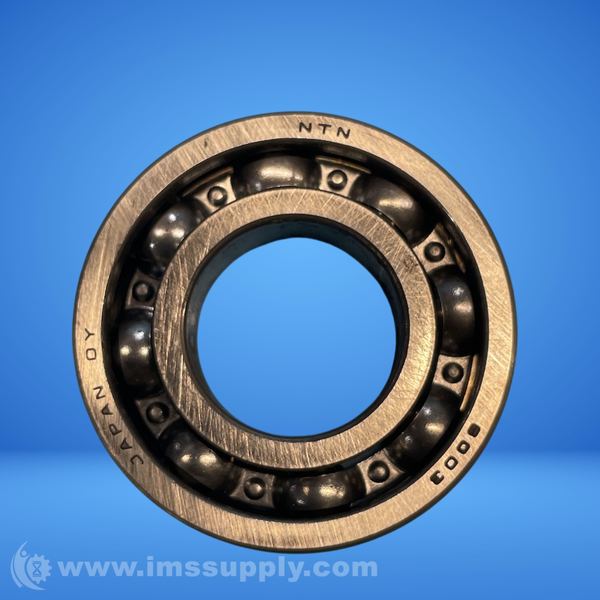

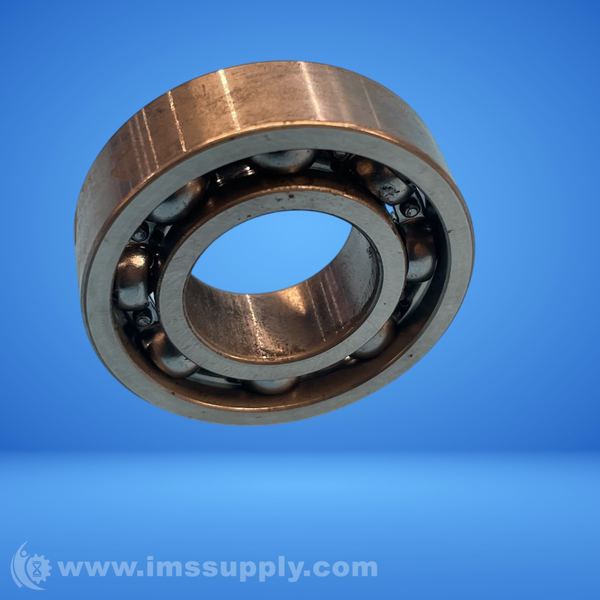

NTN 6003 Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Open Type
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 24000 RPM
- Limiting Speed - Grease: 20000 RPM
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 753 lbf 3350 N 3.35 kN
- Dynamic Load Rating: 1697 lbf 7550 N 7.55 kN
- Enclosure: Open
- Weight: 0.088 lb 0.040 kg
- Operating Temperature Range: -40 to 250 ºF -40 to 120 ºC
- d: 0.6690 in 17.000 mm
- D: 1.3780 in 35.000 mm
- B: 0.3937 in 10.000 mm
- r: 0.0118 in 0.300 mm
- r1: 0.0118 in 0.300 mm
- da min: 0.7480 in 19.000 mm
- Da max: 1.2992 in 33.000 mm
- ras max: 0.0118 in 0.300 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
