NTN 6007LU DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6007LU
IMS Product Code: 2157050
Packaging: Sold Individually
Description:

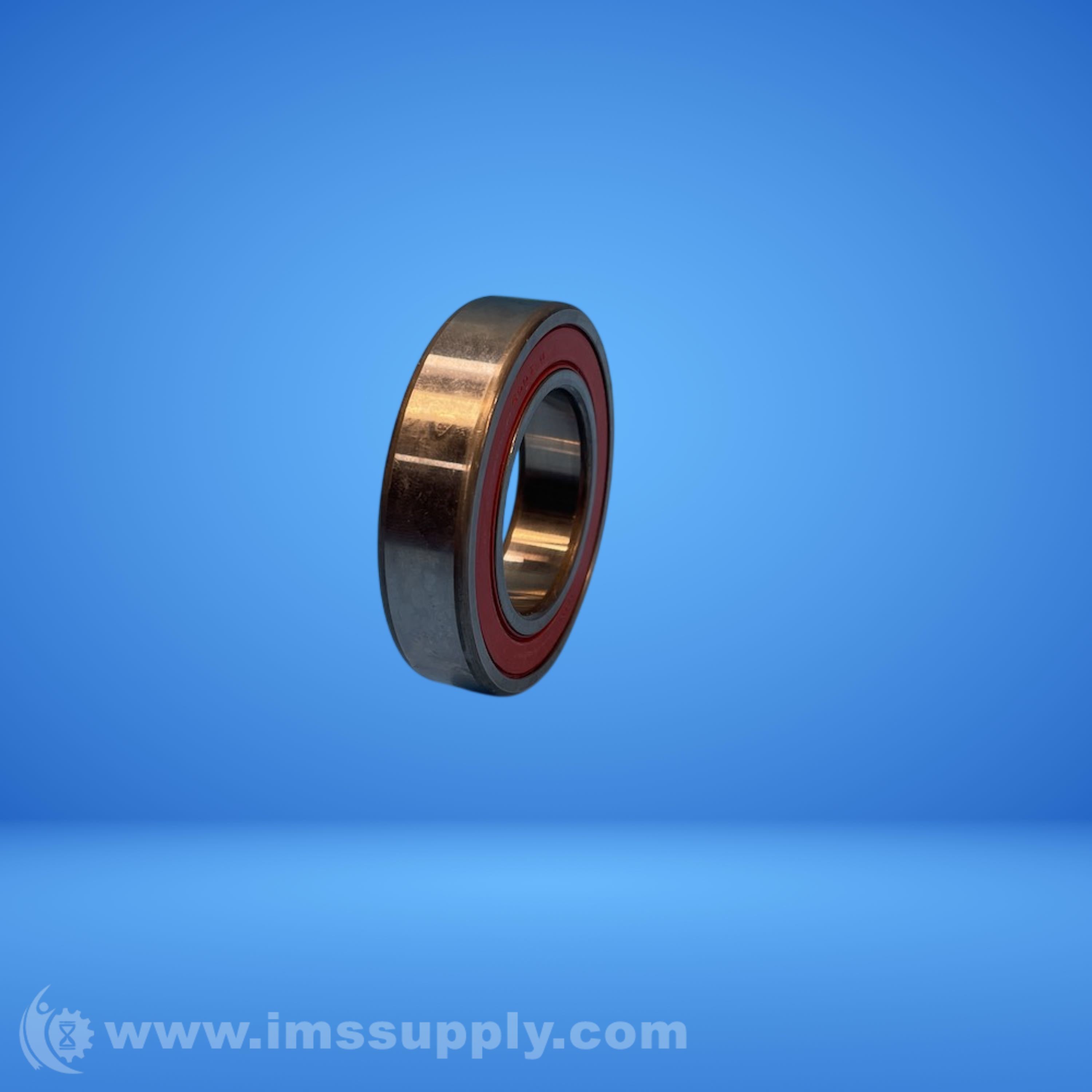

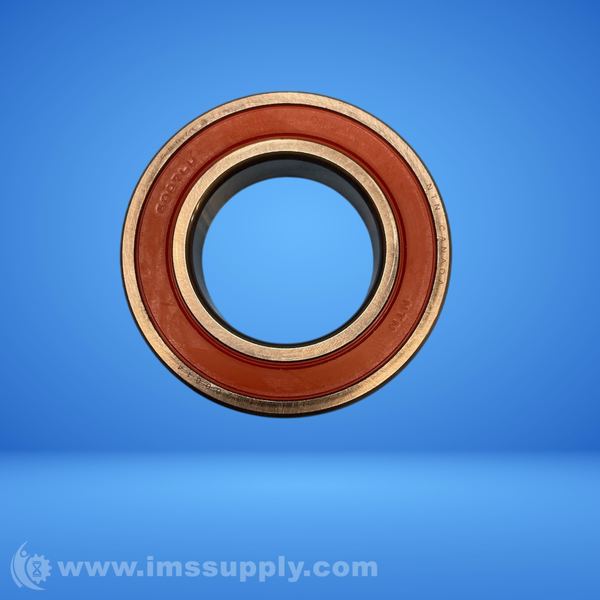

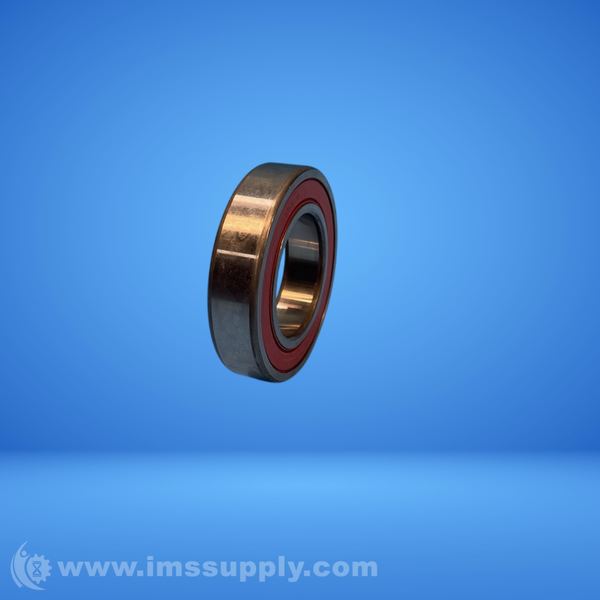

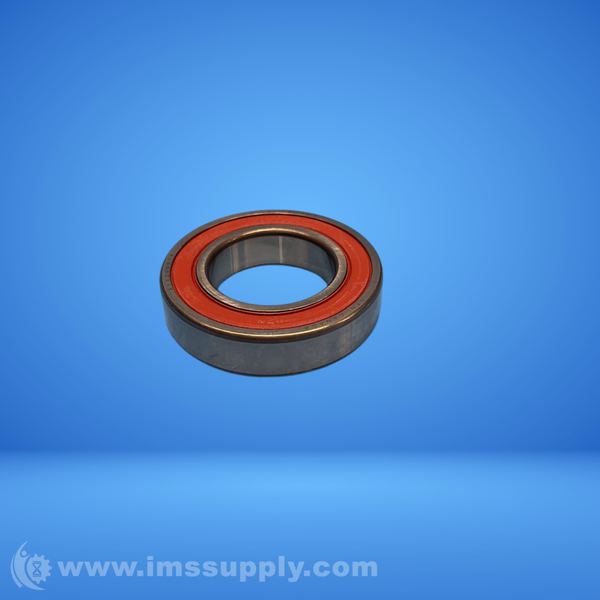

NTN 6007LU Deep Groove Ball Bearing
Single-row deep groove ball bearing with a 35 mm straight bore, single rubber contact seal (LU) on one side, and a stamped steel cage. Designed for radial loads in electric motors, pumps, fans, and general rotating machinery.
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Grease: 6800 RPM
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 2320 lbf
- Dynamic Load Rating: 3970 lbf
- Enclosure: Single Sealed
- Weight: 0.320 lb
- Operating Temperature Range: -40 to 250 °F
- Inner Diameter: 35 mm
- Outer Diameter: 62 mm
- Width: 14 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 20 minutes.
