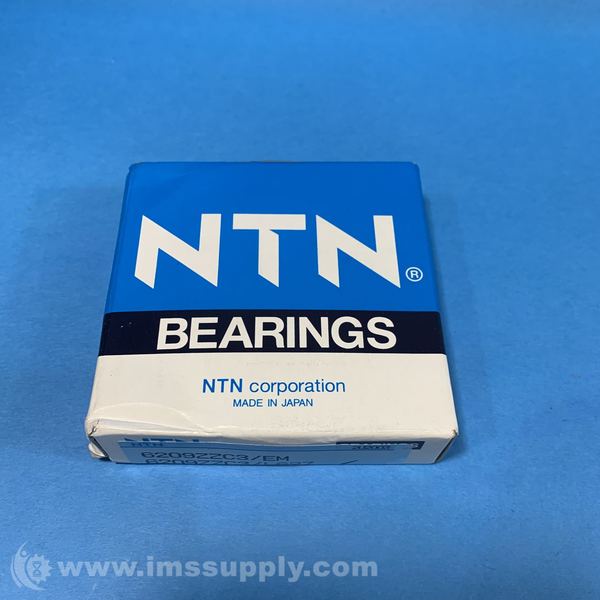

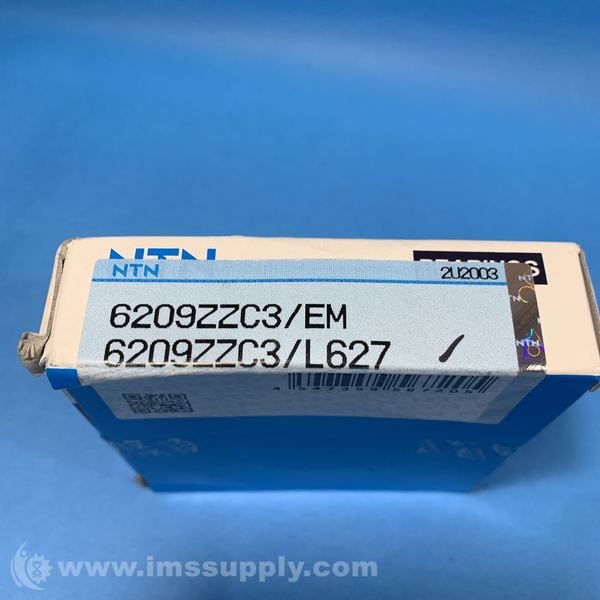

NTN 6209ZZC3/EM DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6209ZZC3/EM
IMS Product Code: 1899191
Packaging: Sold Individually
Description:
NTN 6209ZZC3/EM Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Double Shielded
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Grease: 7800 RPM
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: C3
- Static Load Rating: 4600 lbf, 20400 N, 20.40 kN
- Dynamic Load Rating: 8090 lbf, 36000 N, 36.00 kN
- Enclosure: Double Shielded
- Weight: 0.877 lb, 0.398 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- d: 1.7717 in, 45.000 mm
- D: 3.3465 in, 85.000 mm
- B: 0.7480 in, 19.000 mm
- r: 0.0433 in, 1.100 mm
- r1: 0.0197 in, 0.500 mm
- da min: 2.0276 in, 51.500 mm
- da max: 2.1850 in, 55.500 mm
- Da max: 3.0906 in, 78.500 mm
- ras max: 0.0394 in, 1.000 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 1 hours and 5 minutes.
