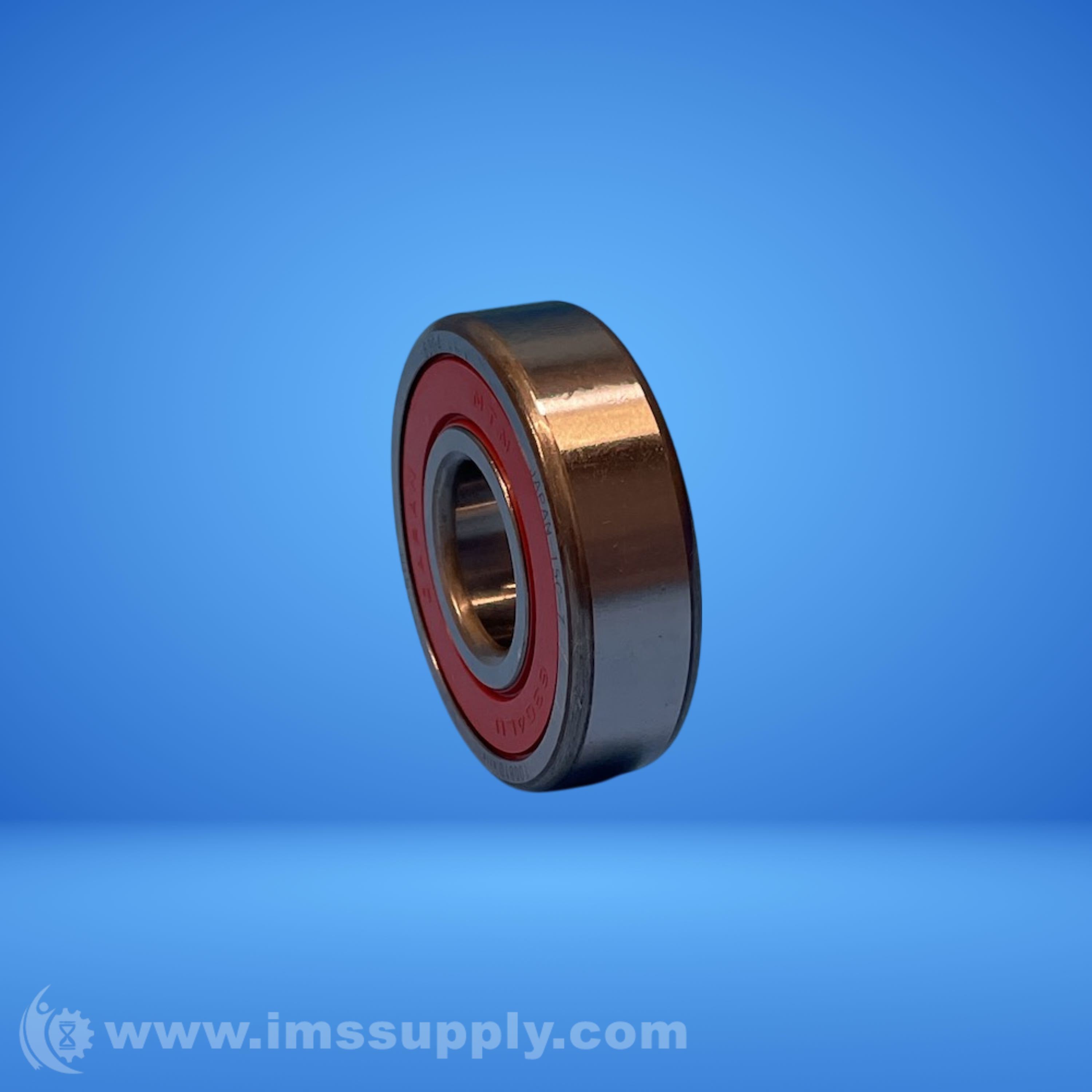

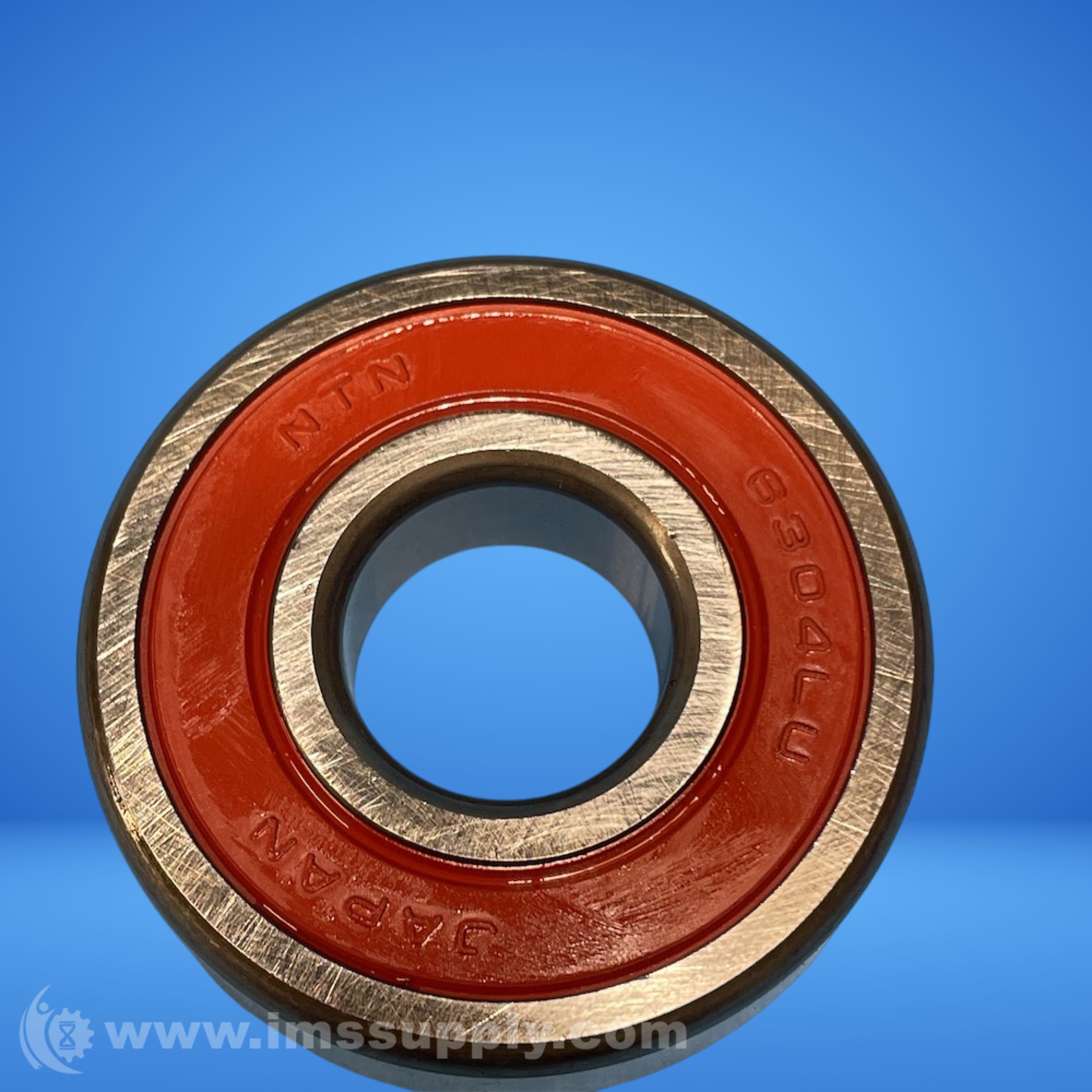

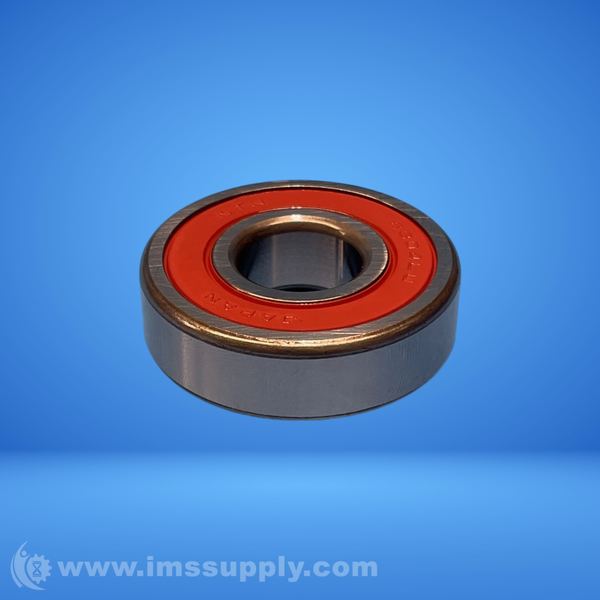

NTN 6304LU DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6304LU
IMS Product Code: 2120042
Packaging: Sold Individually
Description:
NTN 6304LU Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Single Sealed (Contact Rubber Seal)
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round/Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Grease: 10000 RPM
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Precision: ISO Class 0
- Configuration: One/Single Row Non-Fill Slot
- Radial Internal Clearance: CN
- Static Load Rating: 1776 lbf, 7900 N, 7.90 kN
- Dynamic Load Rating: 3957 lbf, 17600 N, 17.60 kN
- Enclosure: Single Sealed
- Weight: 0.304 lb, 0.140 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- d: 0.7870 in, 20.000 mm
- D: 2.0472 in, 52.000 mm
- B: 0.5906 in, 15.000 mm
- r: 0.0433 in, 1.100 mm
- r1: 0.0197 in, 0.500 mm
- da min: 1.0433 in, 26.500 mm
- da max: 1.1220 in, 28.500 mm
- Da max: 1.7913 in, 45.500 mm
- ras max: 0.0394 in, 1.000 mm
- Max Rpm: 17000 rpm
- Series: 63
- Radial Dynamic Load Capacity: 3950 lbf
- Radial Static Load Capacity: 1780 lbf
- Finish Coating: Uncoated
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships Tomorrow
