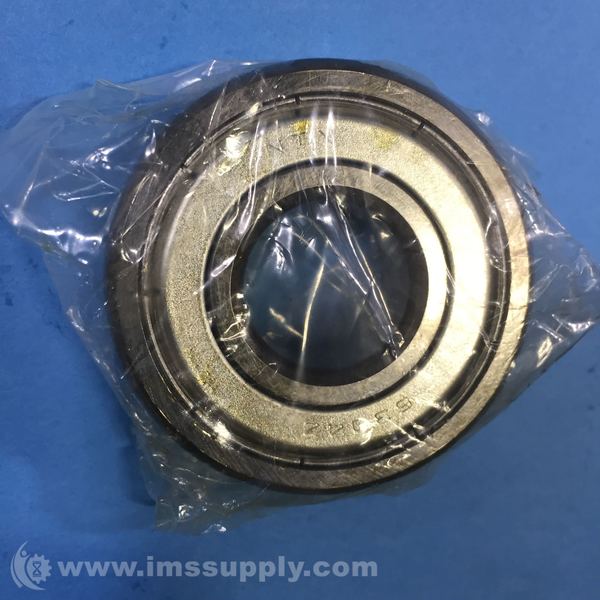

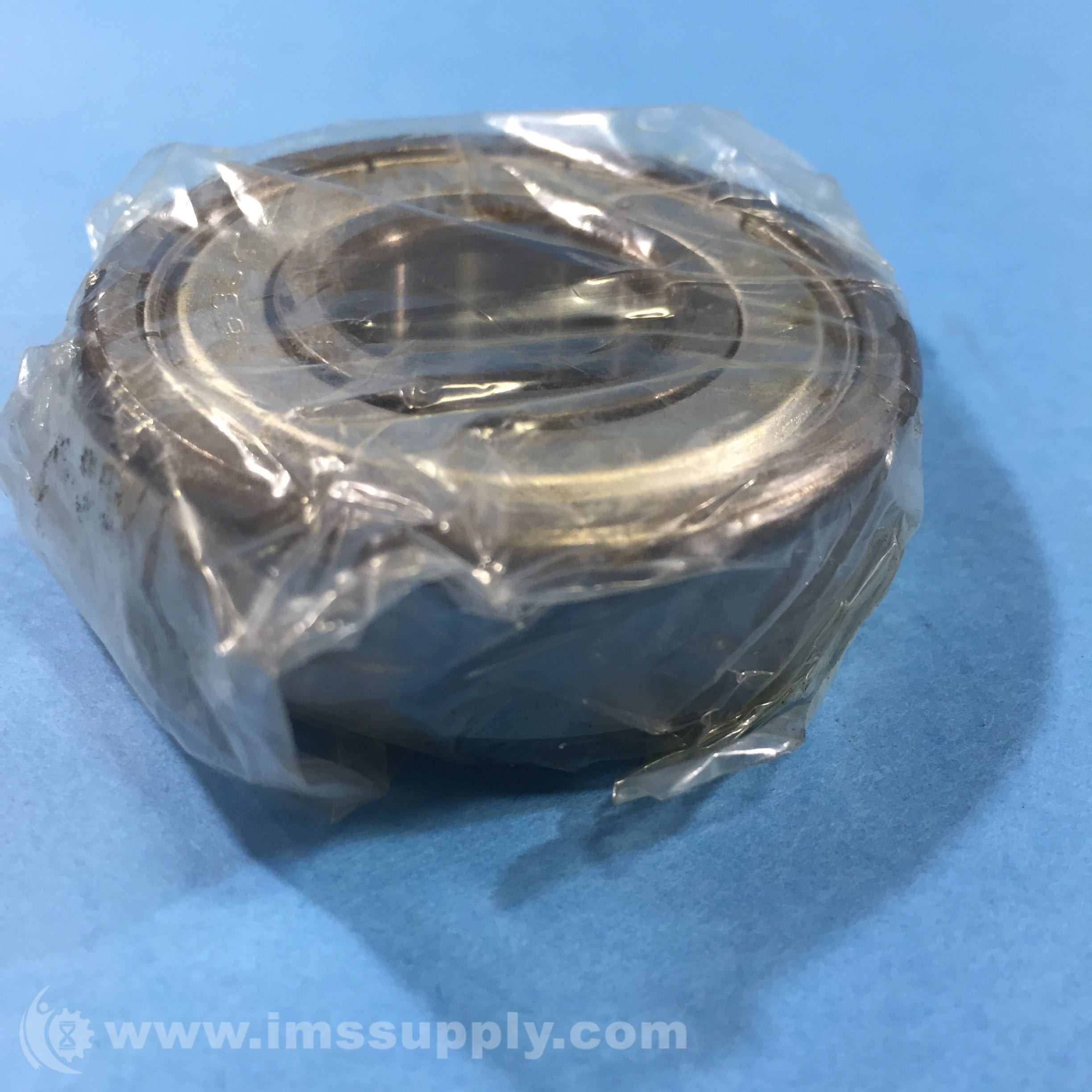

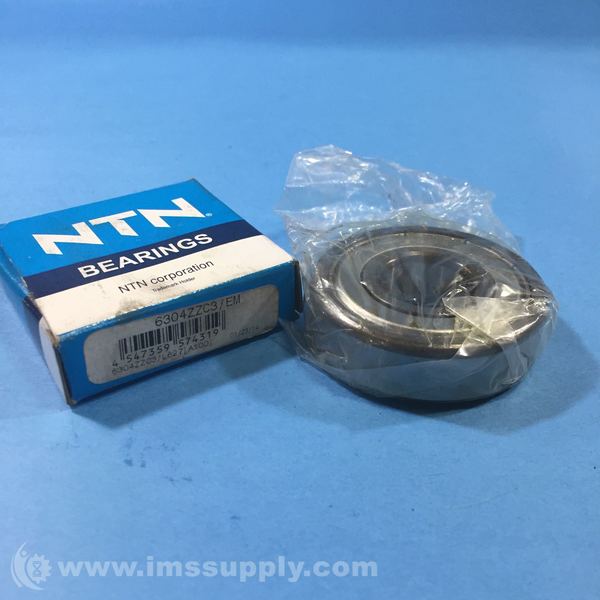

NTN 6304ZZC3/EM DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6304ZZC3/EM
IMS Product Code: 1898480
Packaging: Sold Individually
Description:
NTN 6304ZZC3/EM Deep Groove Ball Bearing
Deep Groove Ball Bearing
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round, Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Grease: 14000.0 RPM
- Max Rpm: 17000 rpm
- Precision: ISO Class 0
- Configuration: One, Single Row Non-Fill Slot
- Radial Internal Clearance: C3
- Static Load Rating: 1780 lbf, 7900 N, 7.90 kN
- Dynamic Load Rating: 3950 lbf, 17600 N, 17.60 kN
- Enclosure: Double Shielded
- Weight: 0.320 lb, 0.145 kg, 0.32 lbs
- Operating Temperature Range: -40 to 250 �F, -40 to 120 �C
- d: 0.7874 in, 20.000 mm
- D: 2.0472 in, 52.000 mm
- B: 0.5906 in, 15.000 mm
- r: 0.0433 in, 1.100 mm
- r1: 0.0197 in, 0.500 mm
- da min: 1.0433 in, 26.500 mm
- da max: 1.1220 in, 28.500 mm
- Da max: 1.7913 in, 45.500 mm
- ras max: 0.0394 in, 1.000 mm
- Bore Diameter: 20 mm
- Fillet Radius: 0.0433 in, 1.100 mm
- Inner Ring Width: 0.5906 in, 15.000 mm
- Outside Diameter: 52 mm
- Overall Width: 15 mm
- ID: 20mm
- OD: 52mm
- Width: 15mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
