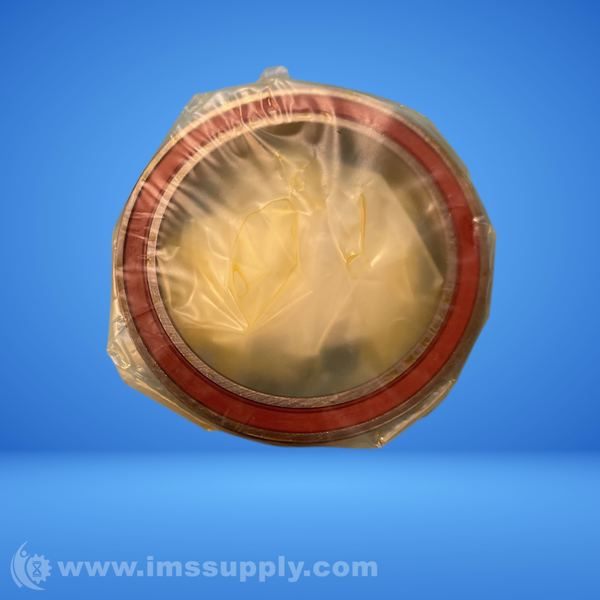

NTN 6812LLU DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6812LLU
IMS Product Code: 2166576
Packaging: Sold Individually
Description:
NTN 6812LLU Deep Groove Ball Bearing
Single-row deep groove ball bearing with double contact rubber seals (LLU) for contaminant exclusion. Designed for radial loads in electric motors, pumps, and general industrial machinery.
Specifications
- Bore Diameter: 60 mm
- Outer Diameter: 78 mm
- Overall Width: 10 mm
- Bore Type: Round/Cylindrical
- Cage Material: Steel
- Cage Type: Pressed
- Ball Material: Steel
- Seal Material: Nitrile Rubber
- Seal Type: Contact/Contact Seal on Both Sides
- Dynamic Load Rating: 2850 lbf/12700 N/12.70 kN
- Static Load Rating: 2380 lbf/10600 N/10.60 kN
- Limiting Speed - Grease: 4400 RPM
- Operating Temperature Range: -40 to 250 degrees F/-40 to 120 degrees C
- Precision Class: ISO Class 0/Class Normal (P0)
- Radial Internal Clearance: CN
- Material: High Carbon Chrome Steel
- Enclosure: Double Sealed
- Weight: 0.225 lb/0.100 kg/0.110000 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships on Monday, October 19, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
