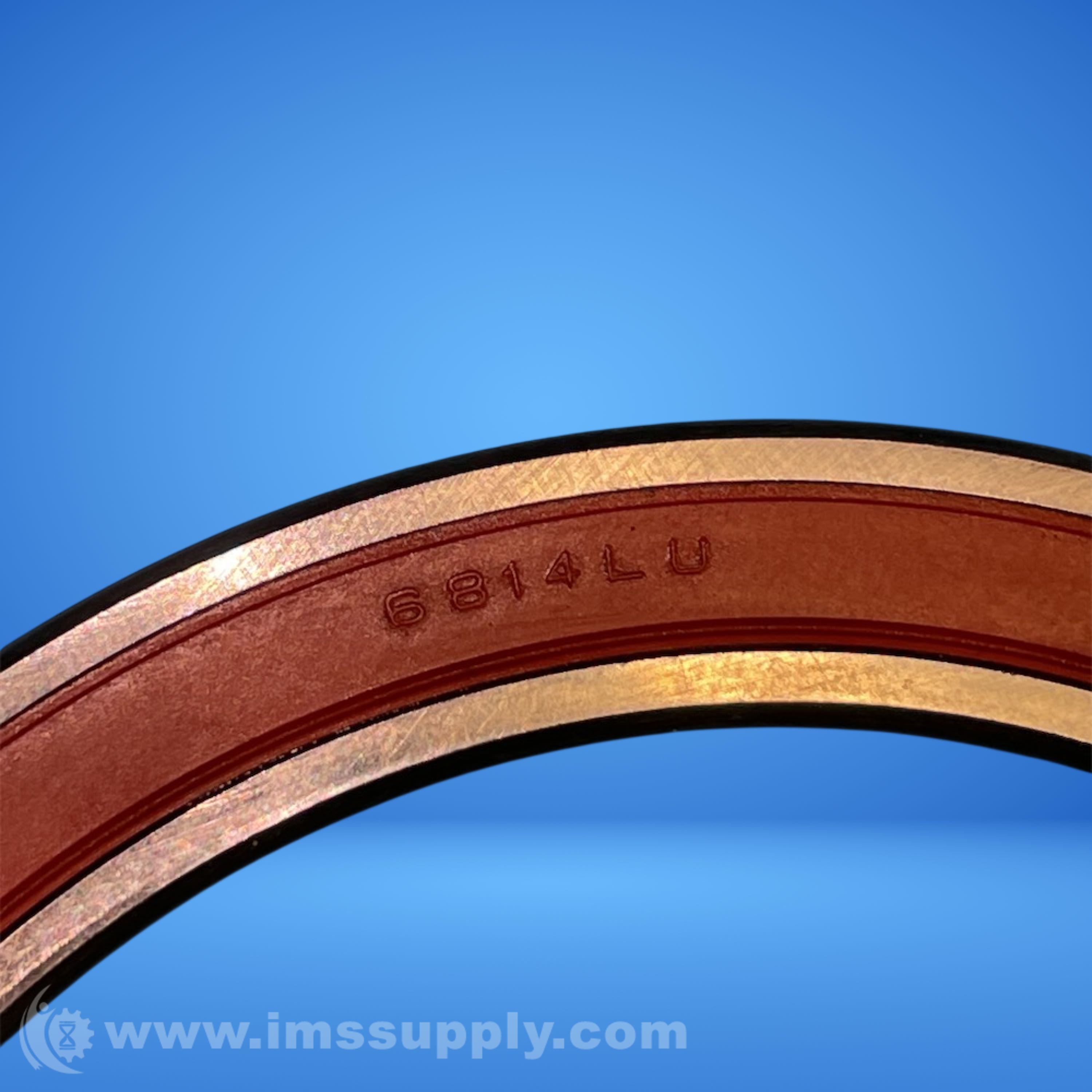

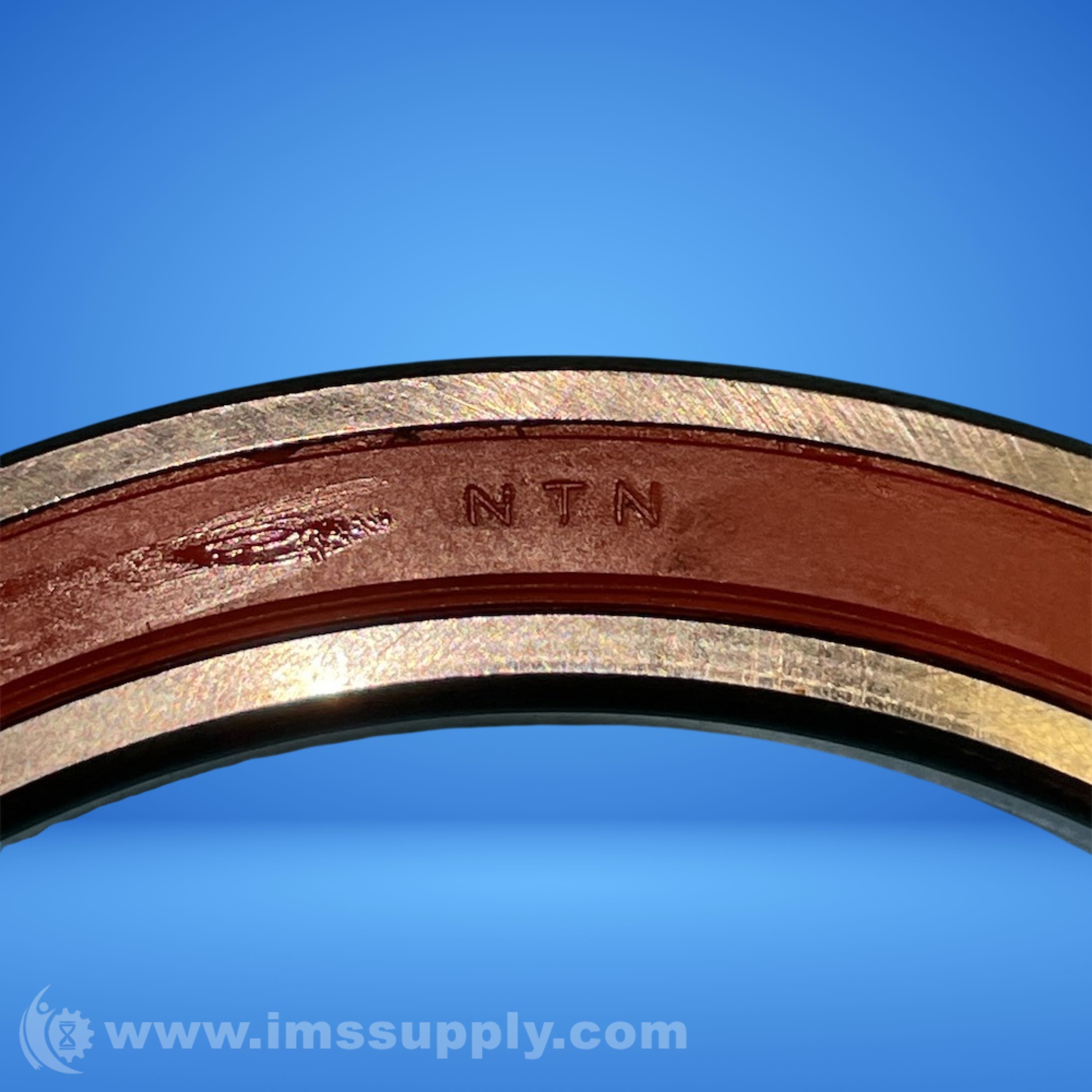

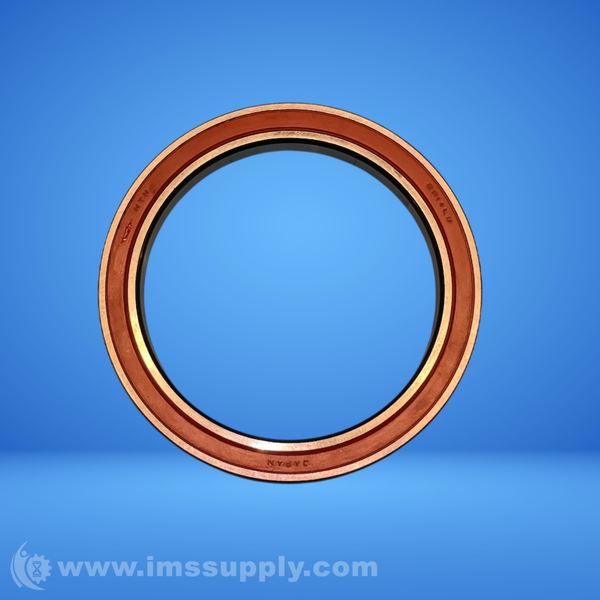

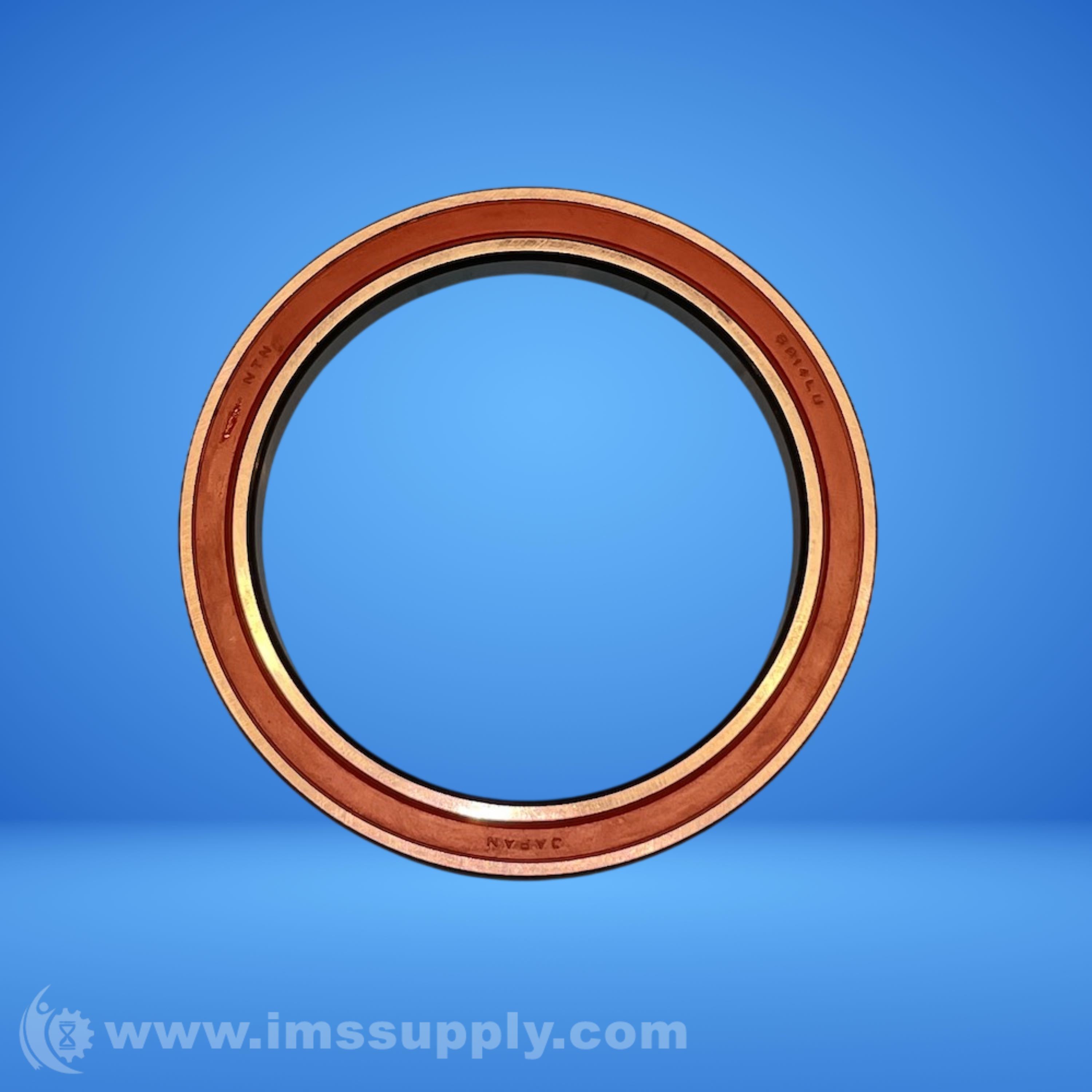

NTN 6814LU DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6814LU
IMS Product Code: 2158389
Packaging: Sold Individually
Description:
NTN 6814LU Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Single Sealed (Contact Rubber Seal)
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Grease: 3800 RPM
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 2680 lbf/11900 N/11.90 kN
- Dynamic Load Rating: 3010 lbf/13400 N/13.40 kN
- Enclosure: Single Sealed
- Weight: 0.284 lb/0.129 kg
- Operating Temperature Range: -40 to 250 F/-40 to 120 C
- d: 2.7559 in/70.000 mm
- D: 3.5433 in/90.000 mm
- B: 0.3937 in/10.000 mm
- r: 0.0236 in/0.600 mm
- r1: 0.0197 in/0.500 mm
- da min: 2.9134 in/74.000 mm
- Da max: 3.3858 in/86.000 mm
- ras max: 0.0236 in/0.600 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
