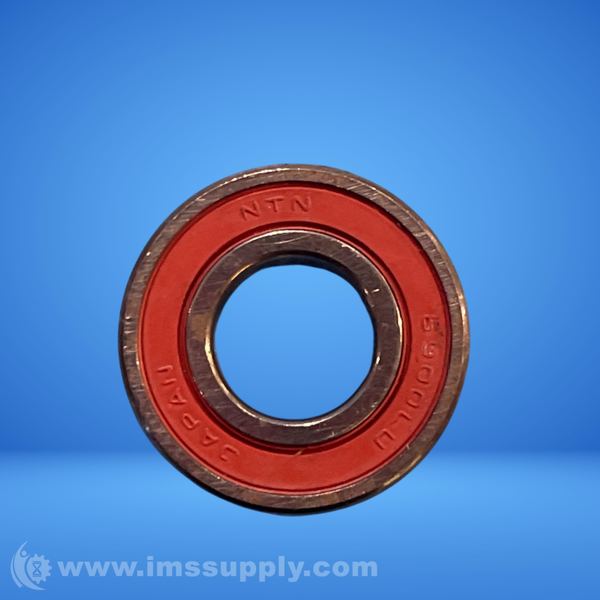

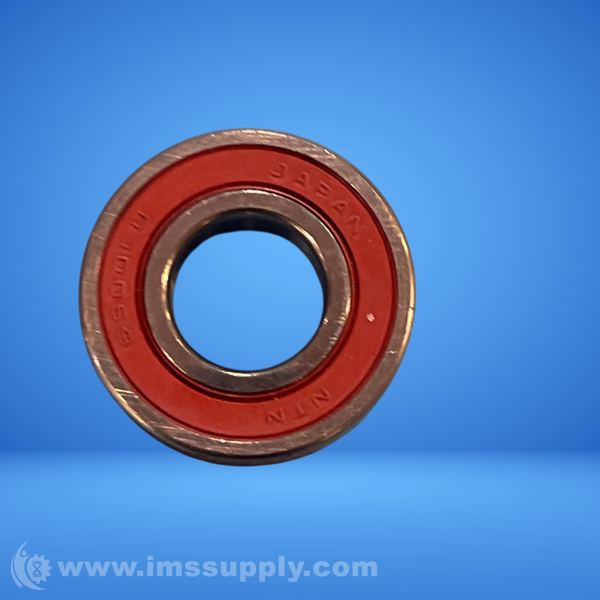

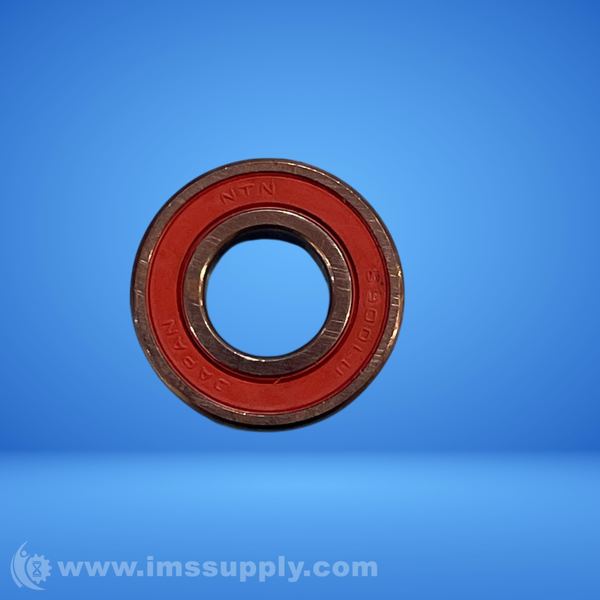

NTN 6900LU DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6900LU
IMS Product Code: 2165698
Packaging: Sold Individually
Description:
NTN 6900LU Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Single Sealed (Contact Rubber Seal)
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Grease: 21000 RPM
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 286 lbf, 1270 N, 1.27 kN
- Dynamic Load Rating: 670 lbf, 2990 N, 2.99 kN
- Enclosure: Single Sealed
- Weight: 0.020 lb, 0.009 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- d: 0.3937 in, 10.000 mm
- D: 0.8661 in, 22.000 mm
- B: 0.2362 in, 6.000 mm
- r: 0.0118 in, 0.300 mm
- r1: 0.0118 in, 0.300 mm
- da min: 0.4724 in, 12.000 mm
- Da max: 0.7874 in, 20.000 mm
- ras max: 0.0118 in, 0.300 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
