NTN 698ZZ DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 698ZZ
IMS Product Code: 2127677
Packaging: Sold Individually
Description:

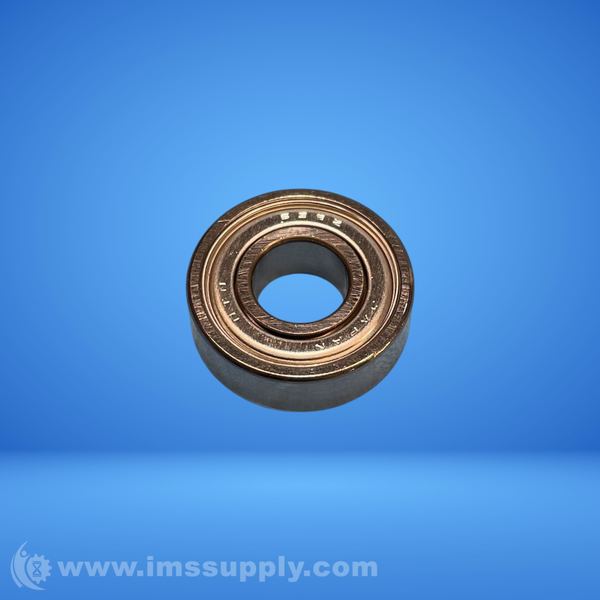

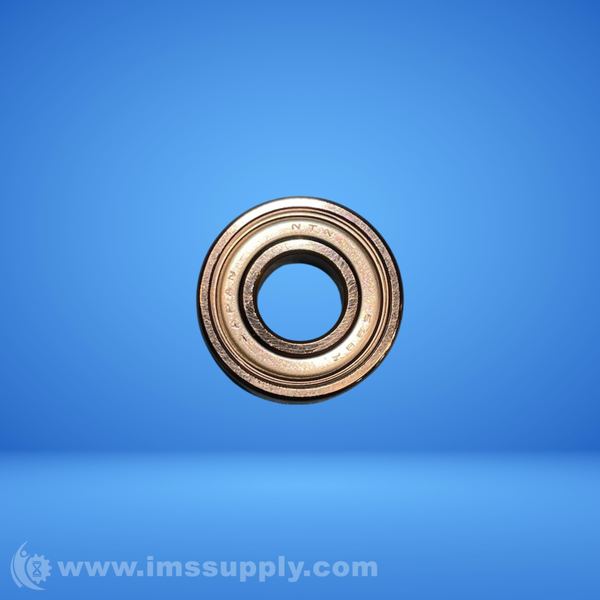

NTN 698ZZ Deep Groove Ball Bearing
Single row, deep groove ball bearing with double shields, straight bore, 8 mm ID, 19 mm OD, 6 mm width, high carbon chrome steel construction.
Specifications
- Bore Type: Straight
- Bore Diameter: 8 mm
- Outside Diameter: 19 mm
- Overall Width: 6 mm
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: CN
- Operating Temperature Range: -40 to 250 degrees F
- Cage Type: Pressed
- Precision Rating: ISO Class 0
- Finish Coating: Uncoated
- Bearing Material: High Carbon Chrome Steel
- Cage Material: Steel
- Inner Ring Width: 6 mm
- Fillet Radius: 0.3 mm
- Max Rpm: 39000 rpm
- Series: 69
- Radial Dynamic Load Capacity: 490 lbf
- Radial Static Load Capacity: 194 lbf
- Weight: 0.02 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 14 hours and 42 minutes.
