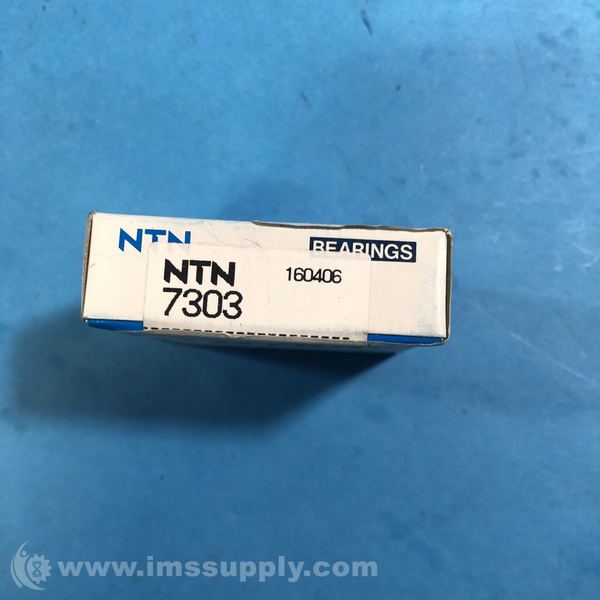

NTN 7303 ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 7303
IMS Product Code: 1922212
Packaging: Sold Individually
Description:
NTN 7303 Angular Contact Ball Bearing
Angular contact ball bearing with dimensions 17x47x14mm, made of high carbon chrome steel.
Specifications
- Type: Angular Contact Ball Bearing
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 24000 RPM
- Limiting Speed - Grease: 18000 RPM
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 1945 lbf, 8650 N, 8.65 kN
- Dynamic Load Rating: 3574 lbf, 15900 N, 15.90 kN
- Enclosure: Open
- Weight: 0.251 lb, 0.110 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- d: 0.6690 in, 17.000 mm
- D: 1.8504 in, 47.000 mm
- B: 0.5512 in, 14.000 mm
- r: 0.0394 in, 1.000 mm
- r1: 0.0236 in, 0.600 mm
- Contact Angle: 30 degrees
- a (Load Center): 0.6299 in, 16.000 mm
- da min: 0.8858 in, 22.500 mm
- db min: 0.8465 in, 21.500 mm
- Da max: 1.6339 in, 41.500 mm
- Db max: 1.6732 in, 42.500 mm
- ras max: 0.0394 in, 1.000 mm
- r1as max: 0.0236 in, 0.600 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
