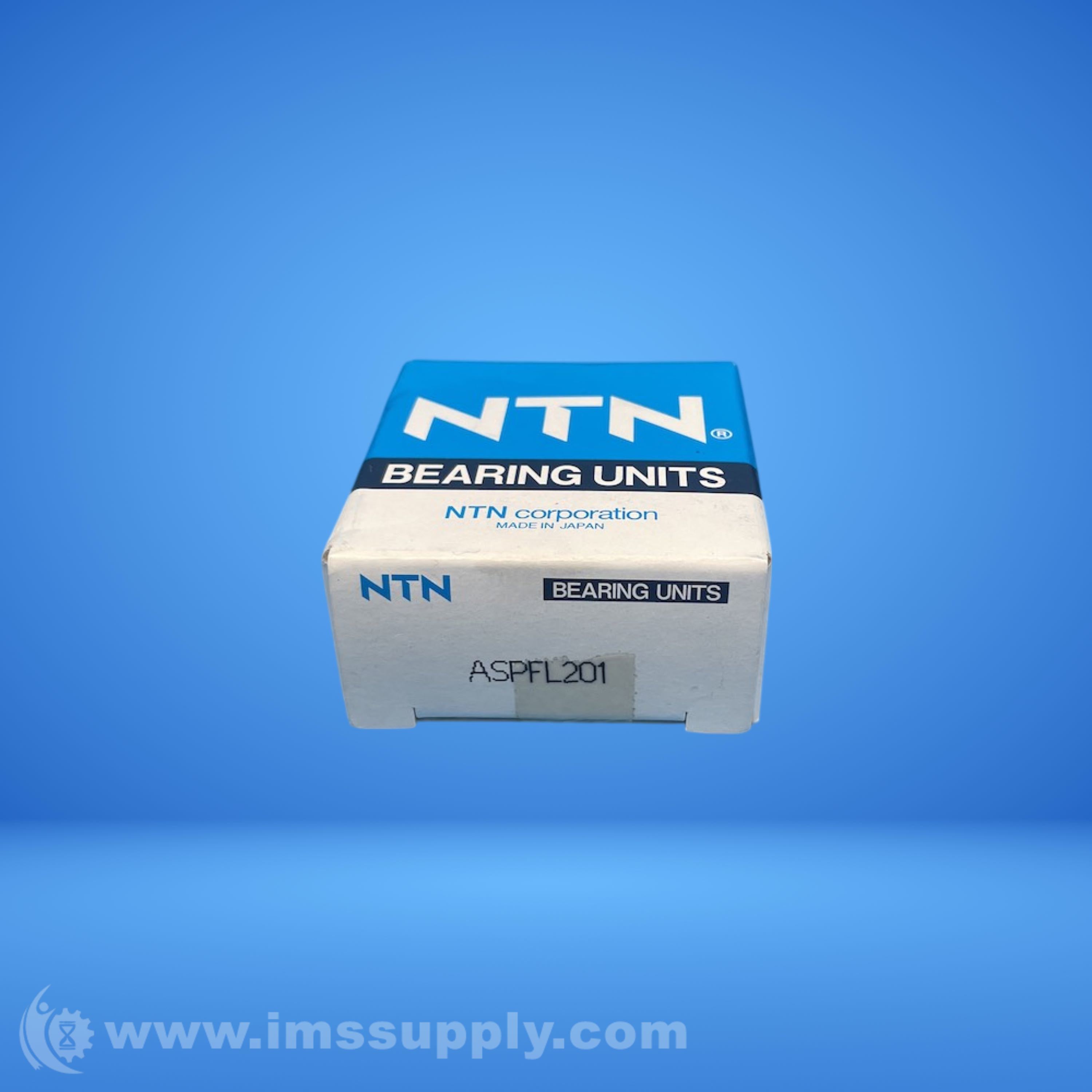

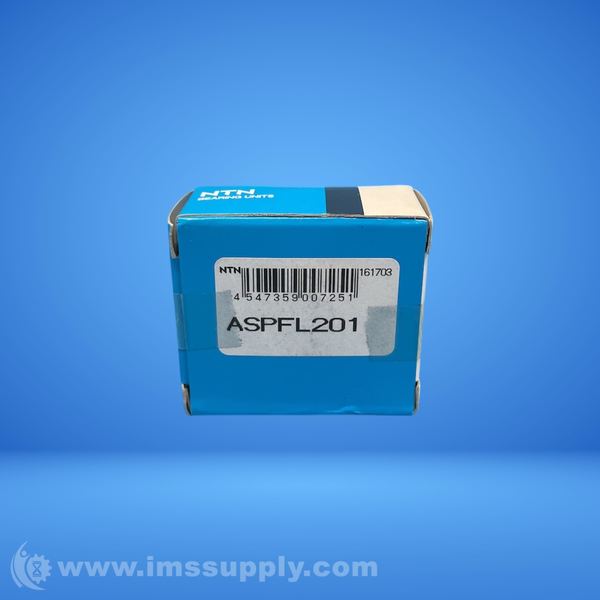

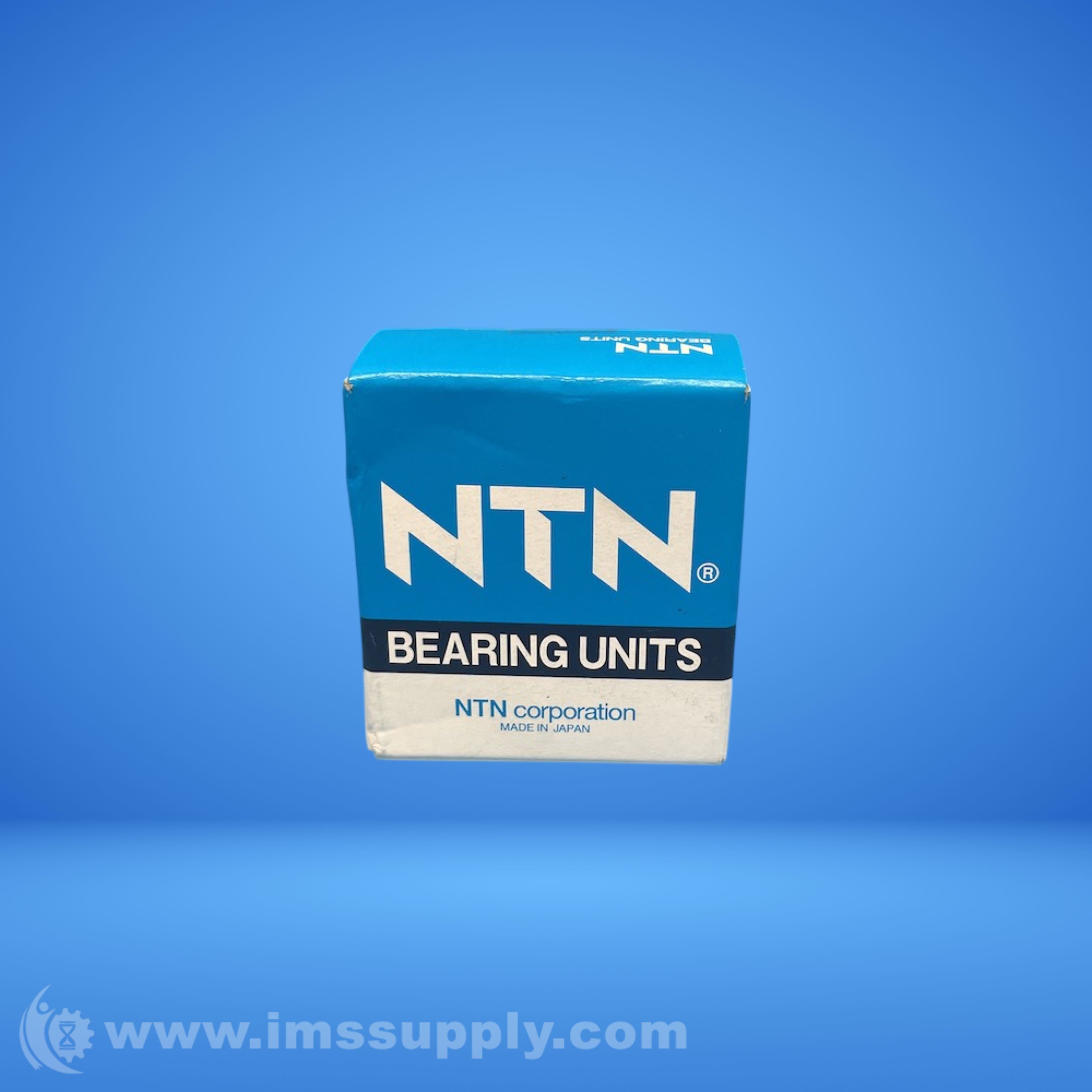

NTN ASPFL201 2-BOLT FLANGED UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: ASPFL201
IMS Product Code: 2146031
Packaging: Sold Individually
Description:
NTN ASPFL201 2-Bolt Flanged Unit
2-Bolt Flanged Unit with Ball Bearing, Set Screw Locking, Contact Seal, and Steel Housing
Specifications
- Type: 2-Bolt Flanged Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: AS201
- Housing Number: PFL203
- Housing Construction: 2 Piece
- End Type: Open
- Performance: Light Duty
- Dynamic Load Rating: 2158 lbf, 9600 N, 9.60 kN
- Static Load Rating: 1034 lbf, 4600 N, 4.60 kN
- Rotational Speed [Max]: 11000.0 RPM
- Weight: 0.441 lb, 0.200 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- Lubrication: Non-Relubricatable
- d: 0.4720 in, 12.000 mm
- H: 3.1875 in, 81.0 mm
- L: 2.3125 in, 59.0 mm
- J: 2.5000 in, 63.5 mm
- A: 0.5625 in, 14.0 mm
- A1: 0.1570 in, 4.0 mm
- N: 0.2812 in, 7.1 mm
- B: 0.8661 in, 22.000 mm
- S: 0.2362 in, 6.000 mm
- H1: 1.9219 in, 49.0 mm
- Ball Material: Through Hardened
- Bore Type: Cylindrical
- Clearance: CN
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0
- Radial Dynamic Load Rating: 2158 lbf, 9600 N
- Rotational Speed [Max]-Grease: 10600.0 RPM
- Outside Ring Width: 0.5906 in, 15.000 mm
- Inside Ring Width: 0.5906 in, 15.000 mm
- Radial Static Load Rating: 1034 lbf, 4600 N
- Bore Diameter: 12 mm
- Housing Material: Steel
- Duty Type: Intermediate Duty
- Bolt Center To Center Length: 2.5000 in
- Overall Length: 3.1875 in
- Bolt Circle Diameter: 2.5000 in
- Expansion Type: Non-Expansion Bearing (Fixed)
- Housing Width: 0.5625 in
- Lubrication Type: Non-Relubricatable
- Overall Width: 0.9114 in
- Series: ASPFL2
- Standards Met: AFBMA, ISO
