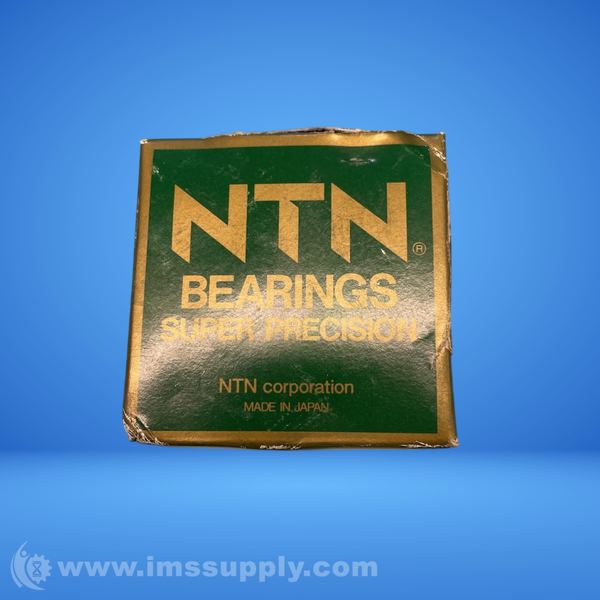

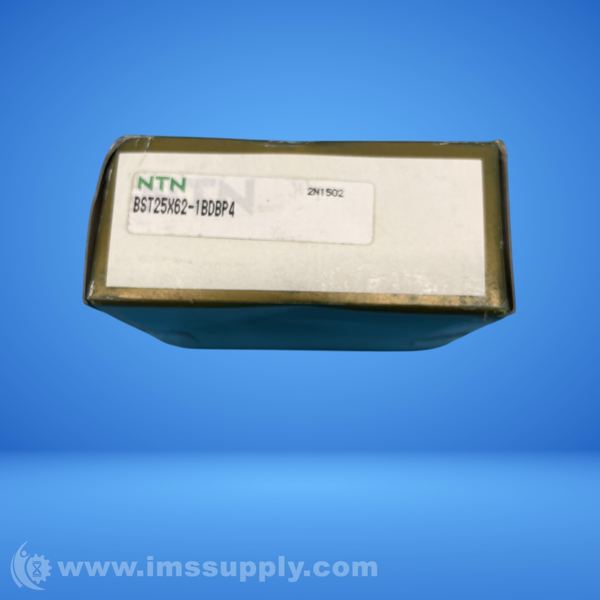

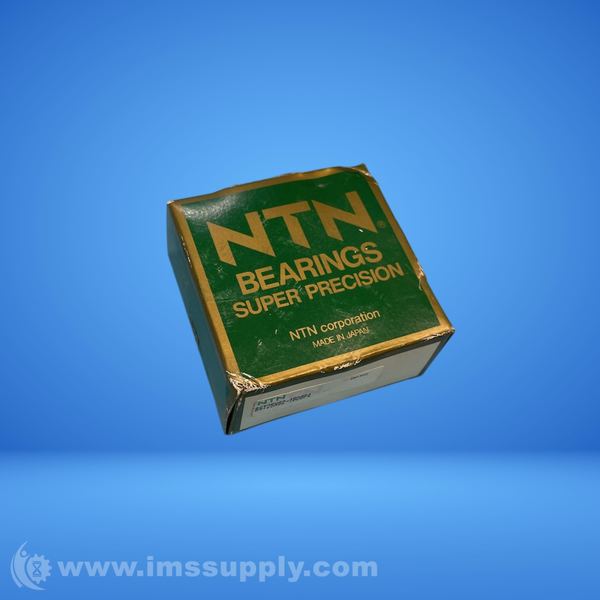

NTN BST25X62-1BDBP4 DUPLEX ANGULAR CONTACT THRUST BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: BST25X62-1BDBP4
IMS Product Code: 2172068
Packaging: Sold Individually
Description:
NTN BST25X62-1BDBP4 Duplex Angular Contact Thrust Ball Bearing
Duplex angular contact thrust ball bearing for ball screws, back-to-back arrangement, open type, P4 precision class.
Specifications
- Type: Ball Screw Support Bearing
- Bore Type: Round/Straight
- Material: High Carbon Chrome Steel
- Cage Type: Fiber Glass Reinforced
- Cage Material: Nylon
- Precision Rating: ISO Class 4/P4
- Configuration: Two/Back to Back
- Static Load Rating: 13300 lbf, 59000 N
- Dynamic Load Rating: 6550 lbf, 29200 N
- Enclosure: Open
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- Bore Diameter (d): 0.9843 in, 25 mm
- Outside Diameter (D): 2.4409 in, 62 mm
- Width (B): 0.5906 in, 15 mm
- Total Width (2B): 1.1811 in, 30 mm
- d1: 1.7480-2.0315 in, 44.4-51.6 mm
- d2: 1.5827-2.1929 in, 40.2-55.7 mm
- D1: 2.0315 in, 51.6 mm
- D2: 2.1929 in, 55.7 mm
- Fillet Radius (r): 0.0394 in, 1 mm
- r1: 0.0236 in, 0.6 mm
- Contact Angle: 60 degrees
- Duplex Type: Back to Back
- Internal Clearance: C0
- Bearing Material: High Carbon Chrome Steel
- Cage Material: Nylon/Fiber Glass Reinforced
- Finish Coating: Uncoated
- Weight: 1.04 lbs, 1.036 lb
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 40 minutes.
