NTN FC213 FLANGE MOUNT HOUSING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: FC213
IMS Product Code: 2143266
Packaging: Sold Individually
Description:

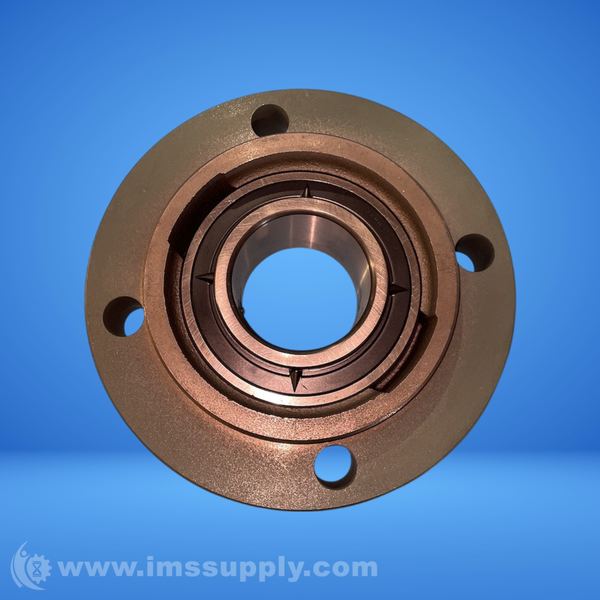

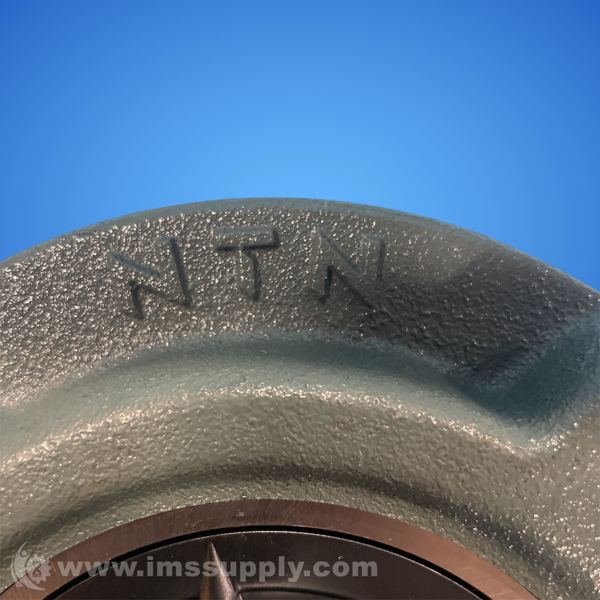

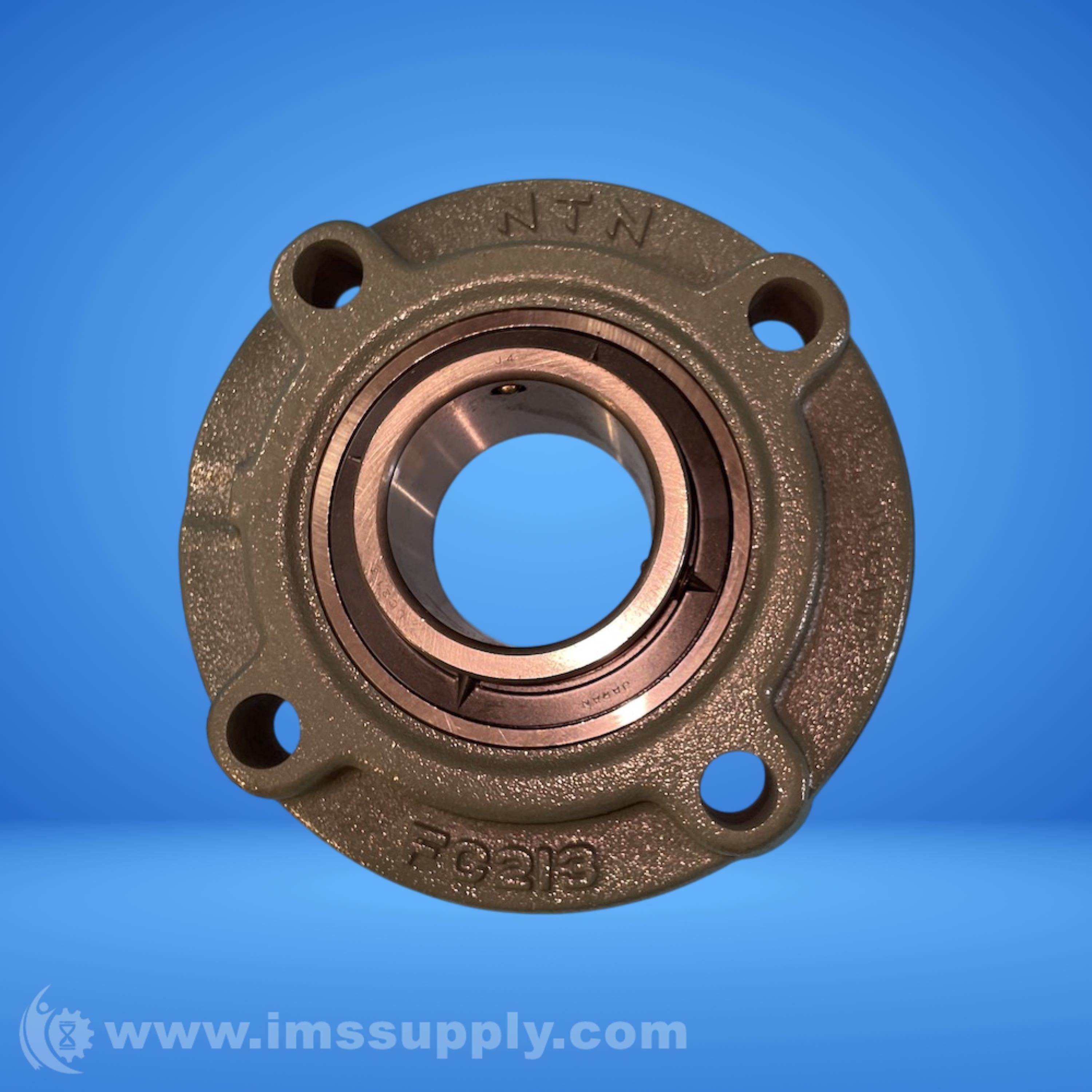

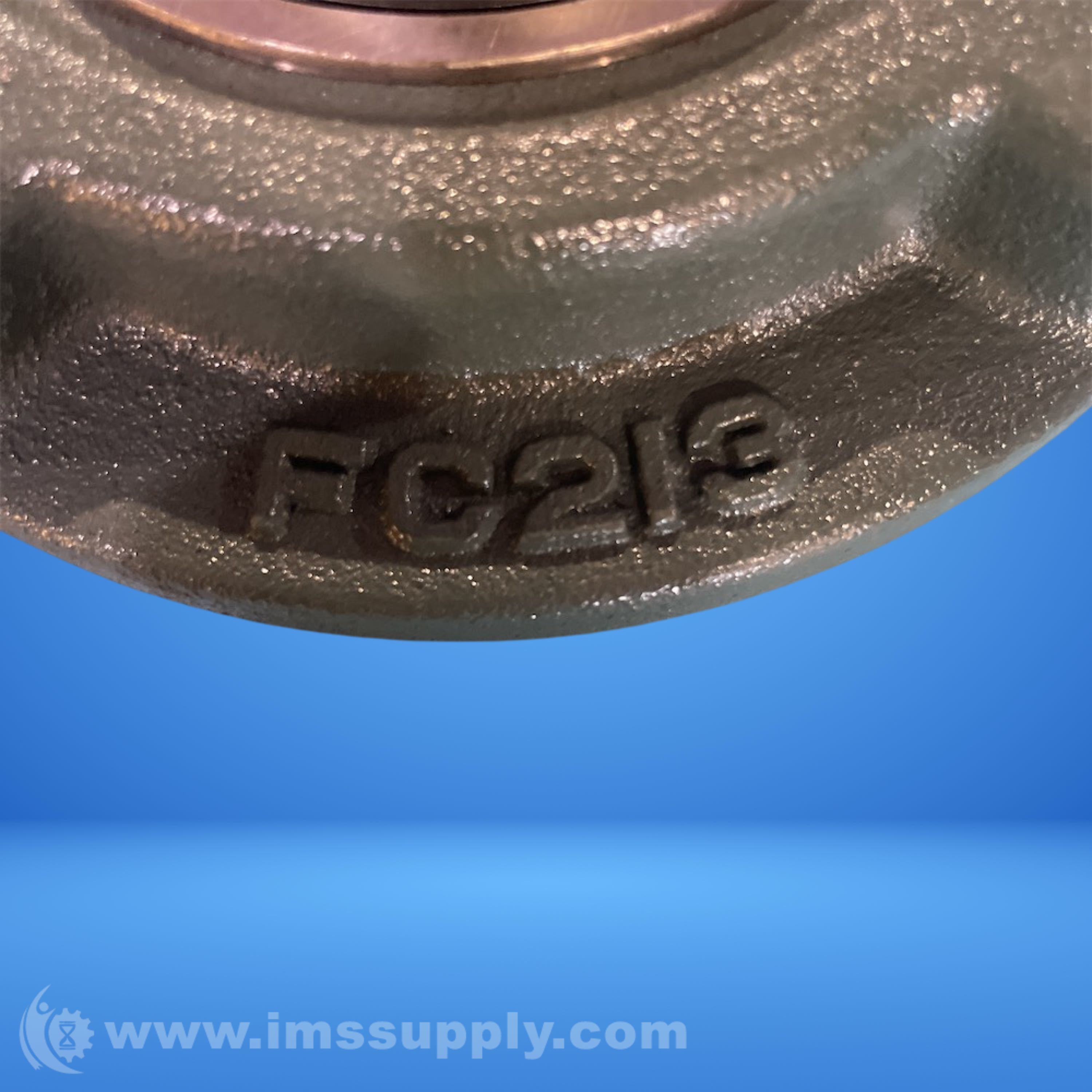

NTN FC213 Flange Mount Housing
Cast iron flange mount housing for ball bearing units. Four-bolt piloted flange with solid housing construction.
Specifications
- Mounting Type: 4-Bolt Flange
- Housing Construction: Solid
- Compatible Bore Diameter: 2.5000 in, 2.5625 in, 65 mm
- Bolt Center To Center Length: 4.7322 in
- Bolt Circle Diameter: 6.6875 in
- Overall Length Diameter: 8.0625 in
- Pilot Diameter: 5.7087 in
- Housing Material: Cast Iron
- Weight: 9.04 lbs
- Bore Diameter: 65mm
- Outside Diameter: 120mm
- Width: 23mm
- Dynamic Load Rating: 31.9kN
- Static Load Rating: 20.5kN
