NTN HMK1215 NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: HMK1215
IMS Product Code: 2139429
Packaging: Sold Individually
Description:

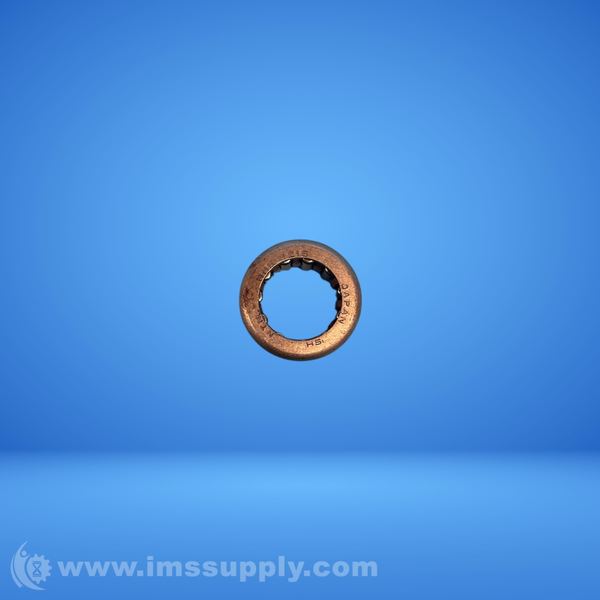

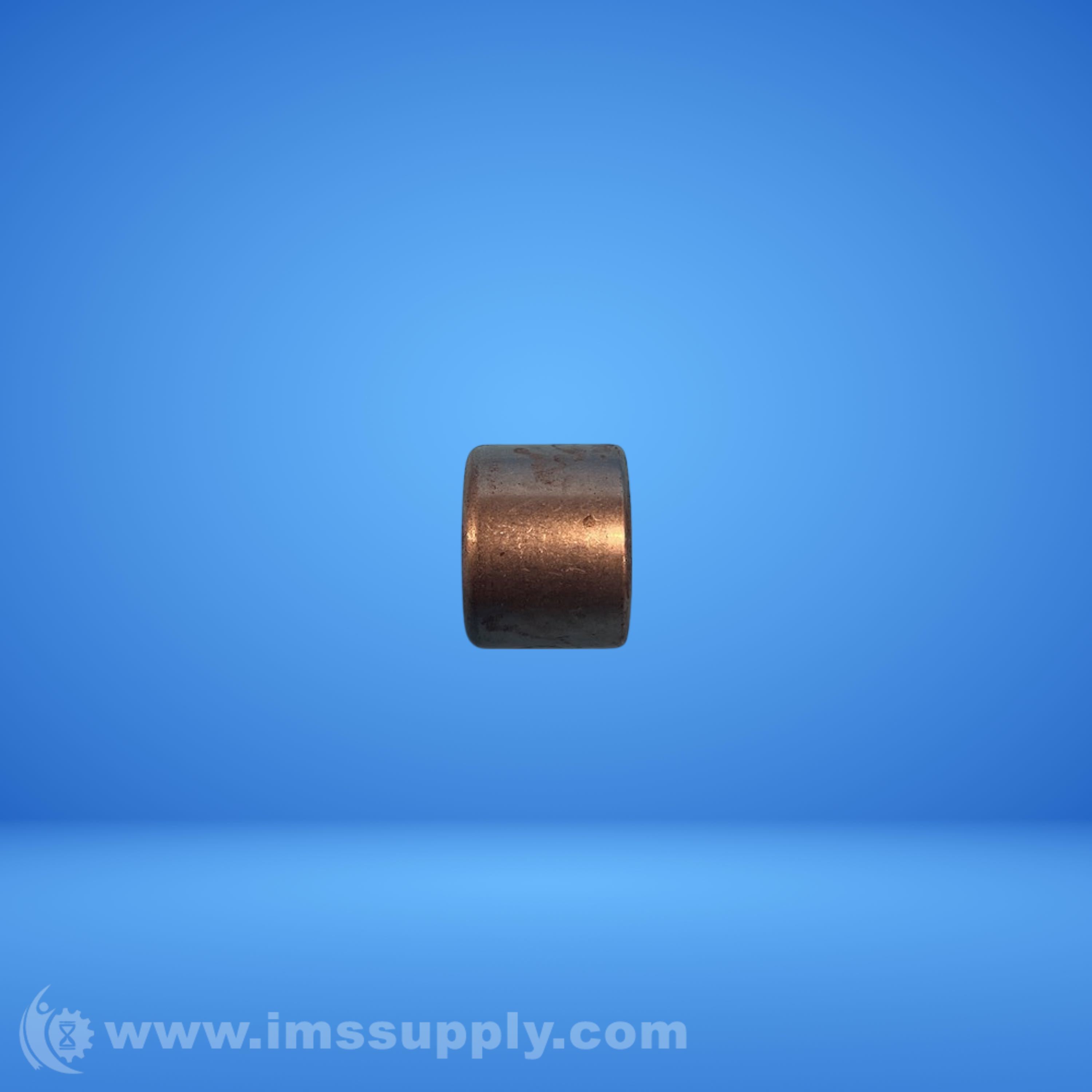

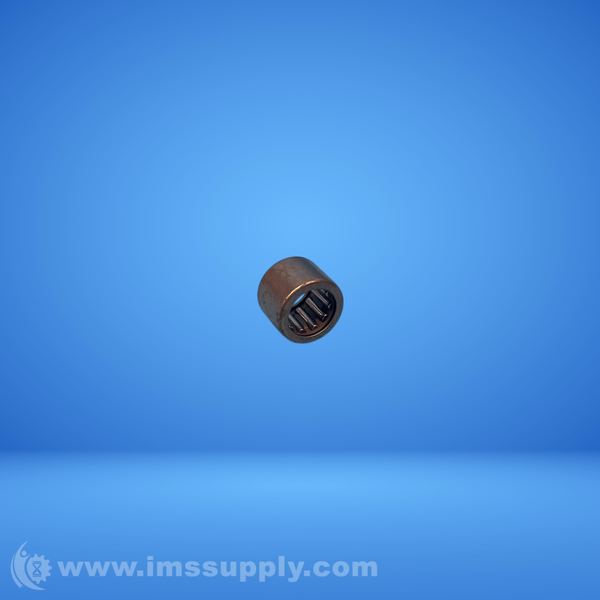

NTN HMK1215 Needle Roller Bearing
Drawn Cup Needle Roller Bearing, Steel, Open Ends, 12 mm Bore, 19 mm OD, 15 mm Width
Specifications
- Bore Type: Round
- Material: Steel
- Cage Material: Steel
- Limiting Speed - Oil: 20000 RPM
- Limiting Speed - Grease: 13000 RPM
- Bearing Type: Needle Roller Bearing
- Configuration: One
- Enclosure: Open
- Radial Internal Clearance: CN
- Precision: ISO Class 0
- Oil Hole: w/o Oil Hole
- Static Load Rating: 2226 lbf, 9900 N, 9.90 kN
- Dynamic Load Rating: 2113 lbf, 9400 N, 9.40 kN
- Weight: 0.031 lb, 0.010 kg, 14g
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- Fw: 0.4720 in, 12.000 mm, 0.4724 in
- D: 0.7480 in, 19.000 mm
- C: 0.5906 in, 15.000 mm
- Bore Diameter: 0.4724 in
- Closure Type: Open
- Drawn Cup Type: Open Ends
- Internal Clearance: CN
- Lubrication Hole Type: No Hole
- Max Rpm: 20000 rpm
- Number Of Rows: One
- Outside Diameter: 0.7480 in
- Overall Width: 0.5906 in
- Precision Rating: ISO Class 0
- Series: HMK
- Type Of Bearing: Needle Roller Bearing
- Height: 15mm
- Inner Diameter: 12mm
- Outer Diameter: 19mm
- Dimensions: 12x19x15mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
