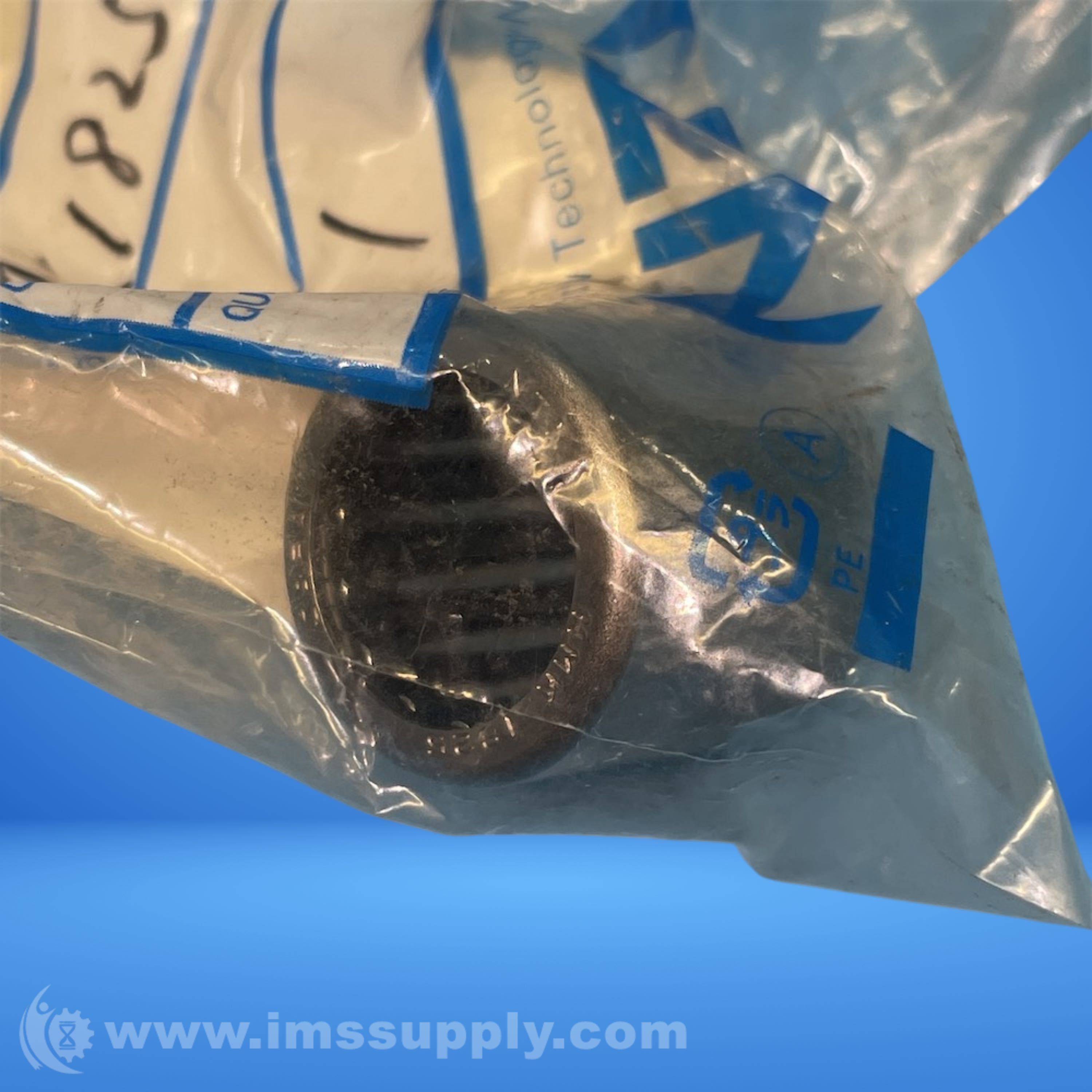

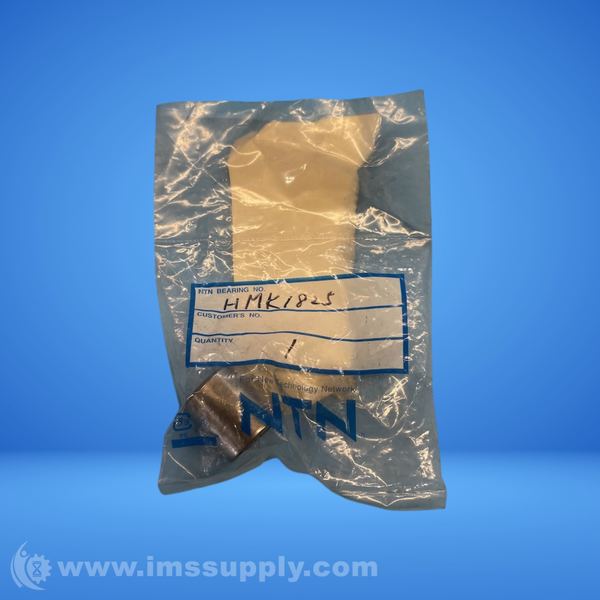

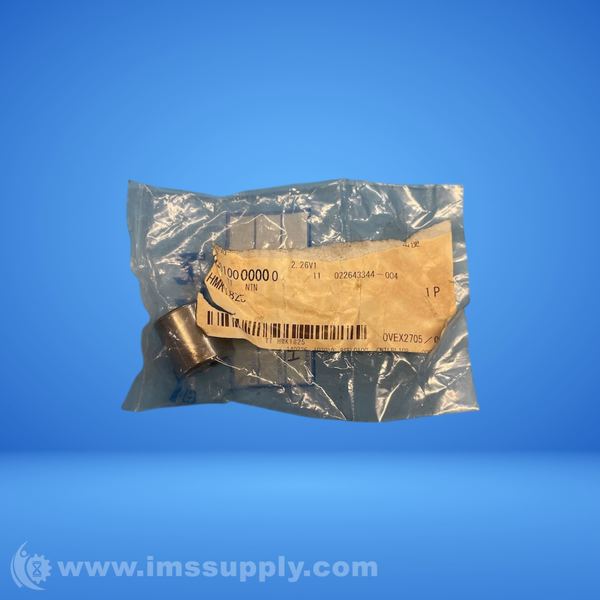

NTN HMK1825 DRAWN CUP NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: HMK1825
IMS Product Code: 2120844
Packaging: Sold Individually
Description:
NTN HMK1825 Drawn Cup Needle Roller Bearing
Drawn Cup Needle Roller Bearing
Specifications
- Bore Type: Round
- Material: Steel
- Cage Material: Steel
- Limiting Speed - Oil: 13000 RPM
- Limiting Speed - Grease: 8500 RPM
- Bearing Type: Needle Roller Bearing
- Configuration: One
- Enclosure: Open
- Radial Internal Clearance: CN
- Precision: ISO Class 0
- Oil Hole: w/o Oil Hole
- Static Load Rating: 6654 lbf/29600 N/29.60 kN
- Dynamic Load Rating: 4564 lbf/20300 N/20.30 kN
- Weight: 0.068 lb/0.030 kg
- Operating Temperature Range: -40 to 250 ºF/-40 to 120 ºC
- Fw: 0.7090 in/18.000 mm
- D: 0.9843 in/25.000 mm
- C: 0.9843 in/25.000 mm
- Bore Diameter: 18 mm
- Outside Diameter: 25 mm
- Overall Width: 25 mm
- Precision Rating: ISO Class 0
- Inner Diameter: 18mm
- Outer Diameter: 25mm
- Width: 25mm
- Height: 25mm
- Seal: Without seal
- Cage: Sheet steel cage
- Temperature Range: -20 to +120 °C
- Needle Rows: Single-row bearing
- Lubrication Hole: Without lubrication groove
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 44 minutes.
