NTN KR26 CAM FOLLOWER
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: KR26
IMS Product Code: 2158269
Packaging: Sold Individually
Description:

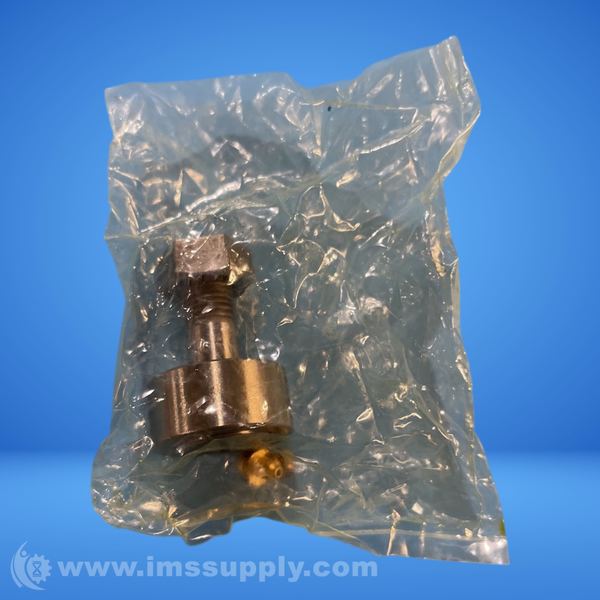

NTN KR26 Cam Follower
Stud type track roller bearing with spherical outer diameter, needle roller bearing configuration.
Specifications
- Type: Cam Follower
- Material: Through Hardened Steel
- Thread Type: Metric
- Cage Material: Pressed Steel
- Limiting Speed - Oil: 16000 RPM
- Limiting Speed - Grease: 12000 RPM
- Roller Type: Crowned
- Stud Type: Standard
- Bearing Type: Needle Roller Bearing
- Outside Ring Type: Spherical
- Enclosure: Open
- Drive Type: Slot
- Configuration: One
- Torque: 14.0 N·m
- Static Load Rating: 1500 lbf, 6650 N
- Dynamic Load Rating: 1190 lbf, 5300 N
- Load Rating of Track: 475 lbf, 2120 N
- Weight: 0.130 lb, 0.059 kg
- Operating Temperature Range: -40 to 250 degrees F, -40 to 120 degrees C
- G: M10x1.25
- B1: 1.4173 in, 36.000 mm
- B2: 0.9055 in, 23.000 mm
- D: 1.0236 in, 26.000 mm
- D Tolerance: 0/-0.0020 in, 0/-0.050 mm
- B: 0.5118 in, 13.000 mm
- C: 0.4724 in, 12.000 mm
- d1: 0.3937 in, 10.000 mm
- d1 Tolerance: 0/-0.0006 in, 0/-0.015 mm
- G1: 0.4724 in, 12.000 mm
- e: 0.6693 in, 17.000 mm
- F: 0.4724 in, 12.000 mm
- C1: 0.0236 in, 0.600 mm
- n: 0.1575 in, 4.000 mm
- m: 0.1575 in, 4.000 mm
- Grease Nipple Size: NIP-B4
