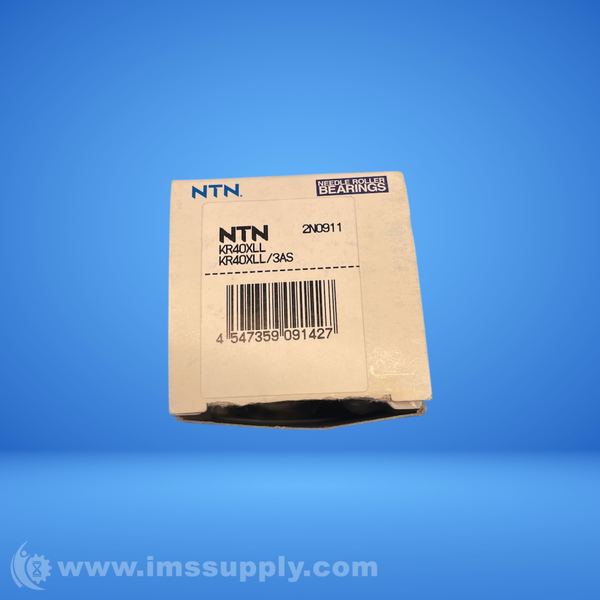

NTN KR40XLL NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: KR40XLL
IMS Product Code: 2145175
Packaging: Sold Individually
Description:
NTN KR40XLL Needle Roller Bearing
Cylindrical OD Cam Follower with 40 mm Dia x 21.5 mm W Roller and 18 mm Dia x 36.5 mm L Stud, Through Hardened Steel Roller
Specifications
- Bearing Element: Needle Rollers
- Closure Type: Double Seal
- Cage Material: Pressed Steel
- Drive Type: Slotted
- Head Type: Slotted
- Load Capacity: 14000 N Dynamic/22800 N Static
- Max Rpm: 9000 rpm
- Operating Temperature Range: -40 to 250 degrees F
- Outside Diameter: 40 mm
- Radial Dynamic Load Capacity: 3150 lbf
- Radial Static Load Capacity: 5150 lbf
- Roller Diameter: 40 mm
- Roller Material: Through Hardened Steel
- Roller Shape: Flat
- Roller Width: 21.5 mm
- Series: KR Series
- Stud Diameter: 18 mm
- Stud Length: 36.5 mm
- Stud Type: Standard
- Temperature Rating: -40 to 120 degrees C
- Thread Length: 19 mm
- Thread Size: M18 x 1.5
- Thread Type: Metric
- Torque: 76.0 N·m
- Type: Cylindrical OD
- Type Of Bearing: Needle Roller Bearing
- Weight: 0.547 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
