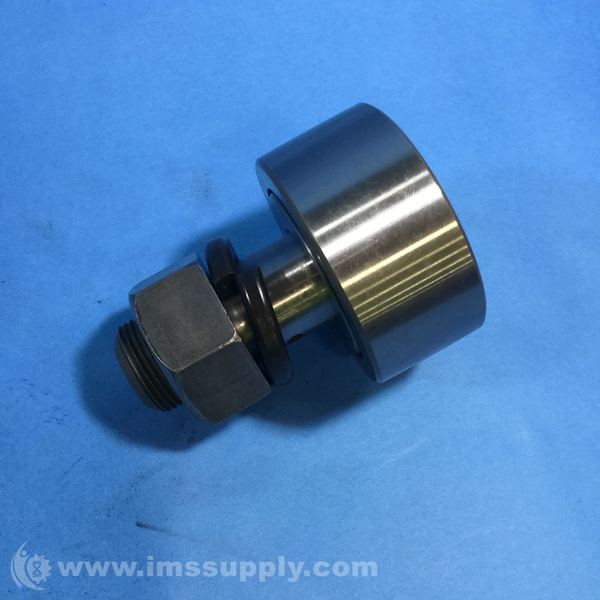

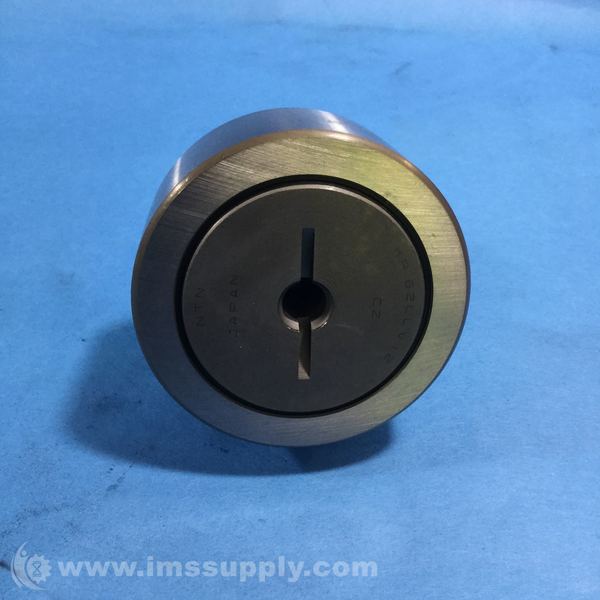

NTN KR62LLV12 CAM FOLLOWER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: KR62LLV12
IMS Product Code: 1803603
Packaging: Sold Individually
Description:
NTN KR62LLV12 Cam Follower Bearing
Cam Follower Stud Type Track Roller Bearing - Spherical O.D., KR..LL Type
Specifications
- Type: Cam Follower
- Material: Through Hardened Steel
- Thread Type: Metric
- Cage Material: Pressed Steel
- Roller Type: Crowned
- Stud Type: Standard
- Bearing Type: Needle Roller Bearing
- Outside Ring Type: Spherical
- Enclosure: Double Sealed
- Drive Type: Slot
- Configuration: One
- Static Load Rating: 12400 lbf/55000 N
- Dynamic Load Rating: 6550 lbf/29100 N
- Weight: 1.742 lb/0.790 kg
- Operating Temperature Range: -40 to 250 degrees F/-40 to 120 degrees C
- G: M24x1.5
- B1: 3.1496 in/80.000 mm
- B2: 1.9488 in/49.500 mm
- D: 2.4409 in/62.000 mm
- D Tolerance: 0/-0.0020 in/0/-0.050 mm
- B: 0 in/0.000 mm
- C: 1.1417 in/29.000 mm
- d1: 0.9449 in/24.000 mm
- G1: 0.9843 in/25.000 mm
- C1: 0.0315 in/0.800 mm
- Grease Nipple Size: NIP-B8
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 11 In Stock
Ships today if ordered in the next 14 hours and 16 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 16 minutes.
