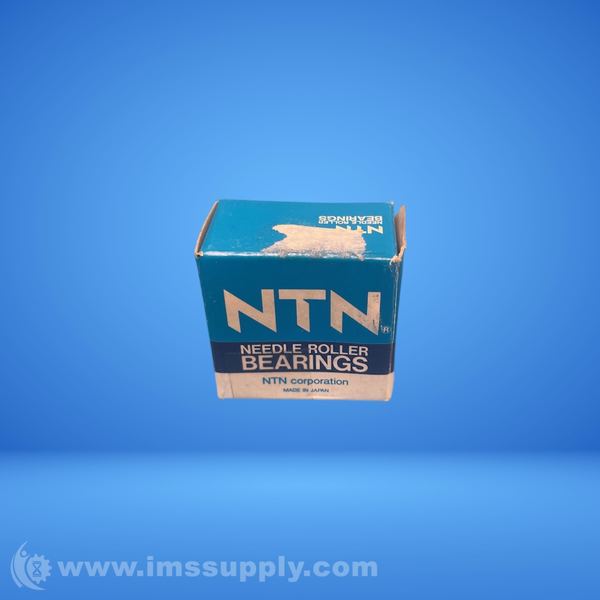

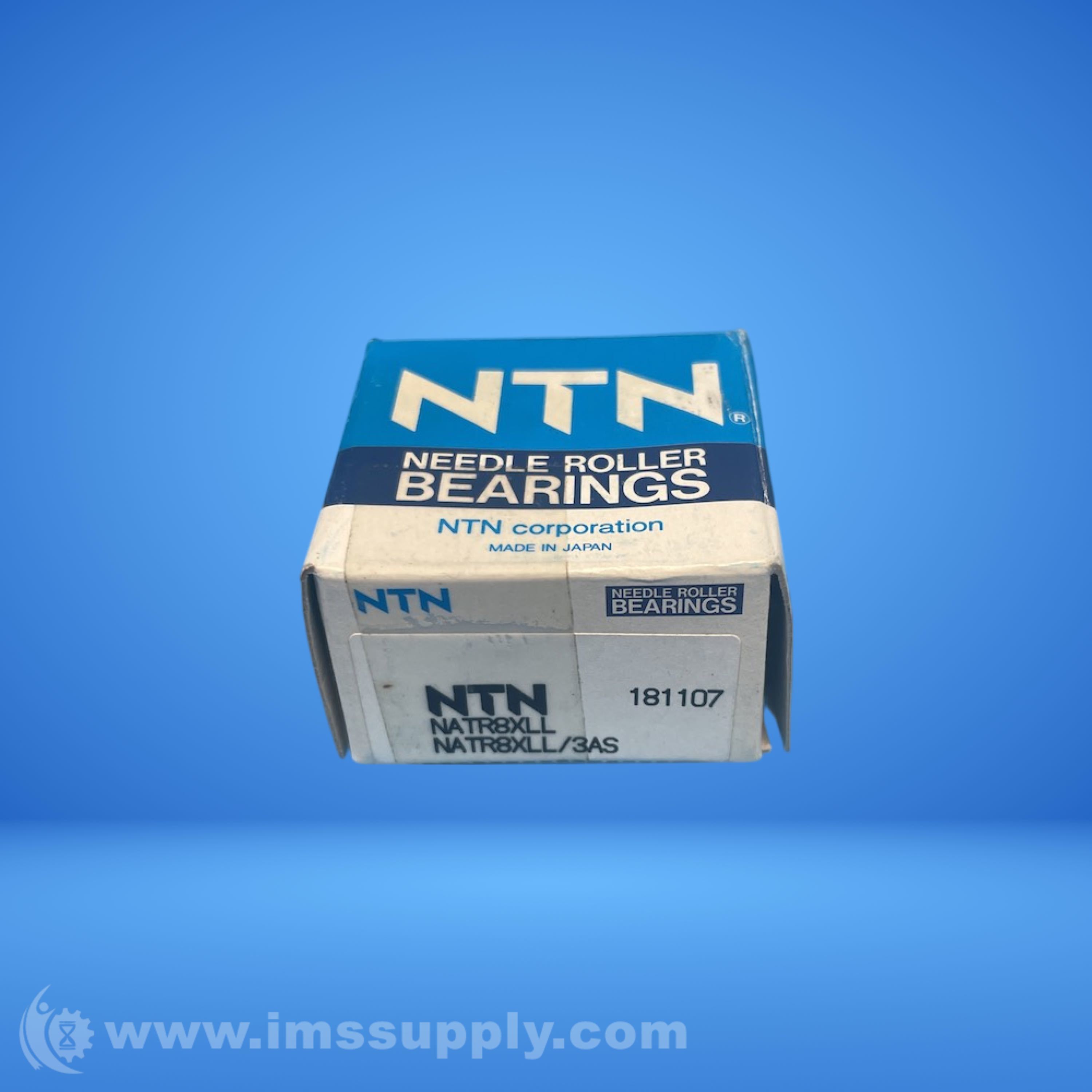

NTN NATR8XLL NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: NATR8XLL
IMS Product Code: 2144079
Packaging: Sold Individually
Description:

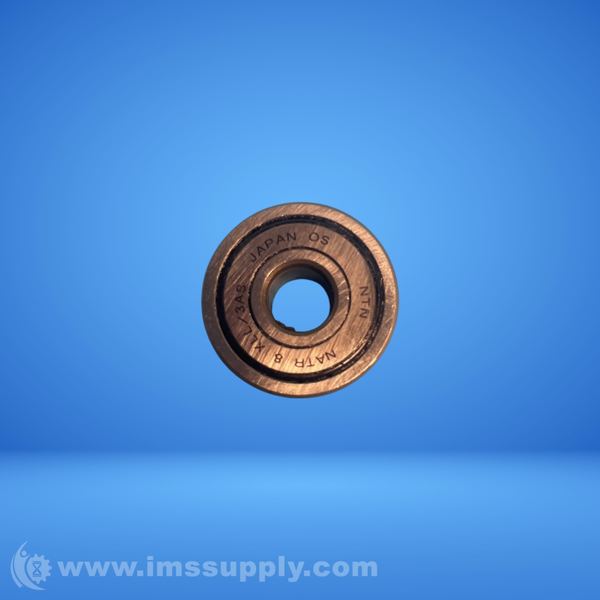

NTN NATR8XLL Needle Roller Bearing
Yoke Type Track Roller Bearing with Inner Ring, Double Sealed, NATR Type, Cylindrical O.D.
Specifications
- Type: Yoke Type Track Roller
- Roller Type: Needle
- Bearing Type: Needle Roller Bearing
- Material: High Carbon Chrome Steel
- Cage Material: Steel
- Outside Ring Type: Cylindrical
- Limiting Speed - Oil: 10000 RPM
- Limiting Speed - Grease: 10000 RPM
- Enclosure: Double Sealed
- Static Load Rating: 1731 lbf, 7700 N, 7.70 kN
- Dynamic Load Rating: 1551 lbf, 6900 N, 6.90 kN
- Load Rating of Track: 1500 lbf, 6650 N
- Weight: 0.093 lb, 0.040 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- d: 0.3150 in, 8.000 mm
- D (0/-0.050): 0.9449 in, 24.000 mm
- F: 0.4724 in, 12.000 mm
- e: 0.7480 in, 19.000 mm
- C: 0.5512 in, 14.000 mm
- B: 0.5906 in, 15.000 mm
- B Tolerance: 0/-0.180 mm
- Roller Shape: Flat
- Product Type: Crowned & Flat Yoke Rollers
- Roller Diameter: 24 mm
- Bore Diameter: 8 mm
- Roller Width: 14 mm
- Bearing Element: Needle Rollers
- Bearing Material: High Carbon Chrome Steel
- Overall Width: 15 mm
- Closure Type: Sealed
- Radial Dynamic Load Capacity: 1550 lbf
- Radial Static Load Capacity: 1730 lbf
- Roller Material: High Carbon Chrome Steel
- Max Rpm: 10000 rpm
- Lubrication Hole Location: Inner Ring
- Finish Coating: Uncoated
- Series: NATR
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
