NTN NUTR 302X ROLLER FOLLOWER
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: NUTR 302X
IMS Product Code: 2169700
Packaging: Sold Individually
Description:

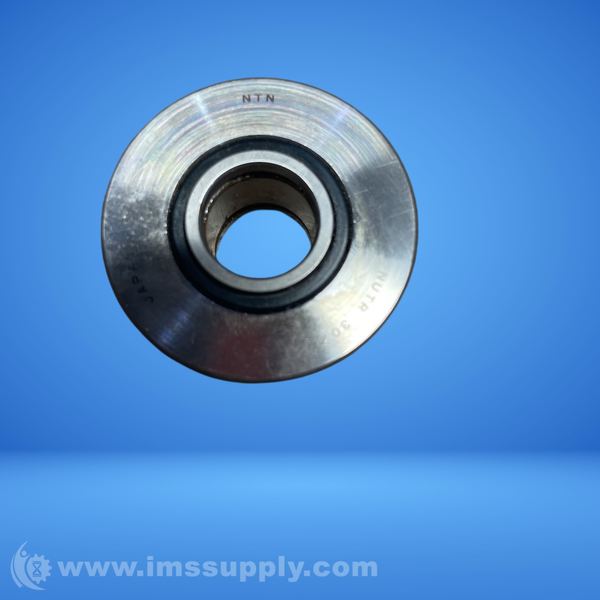

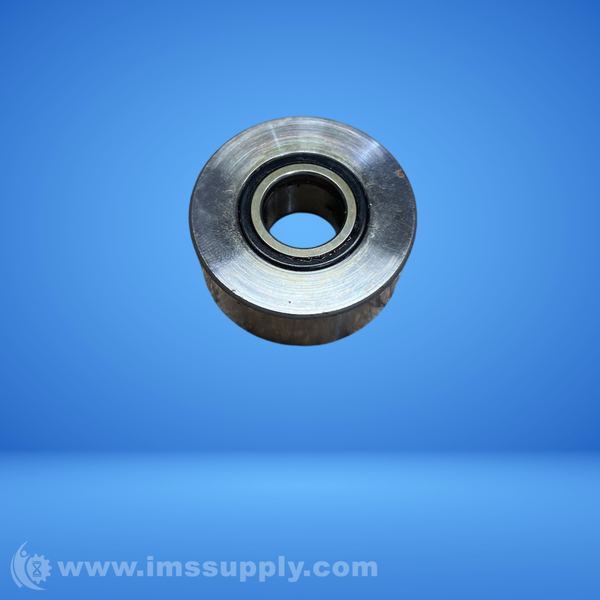

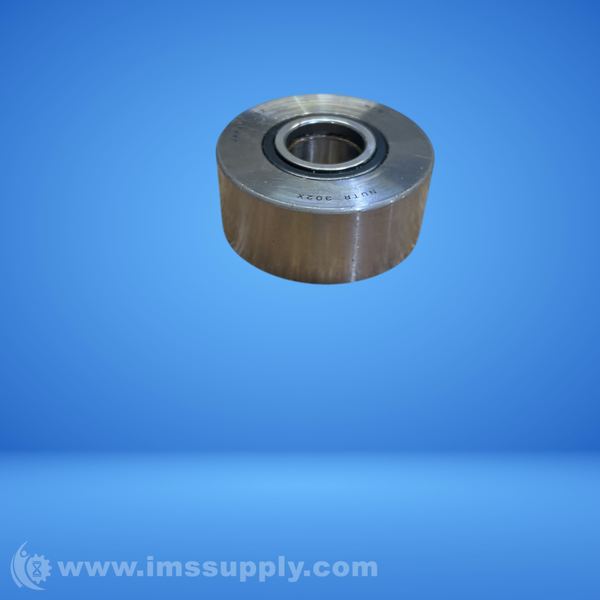

NTN NUTR 302X Roller Follower
Yoke type track roller bearing with cylindrical outer diameter and inner ring.
Specifications
- Type: Yoke Type Track Roller
- Bearing Type: Needle Roller Bearing
- Roller Type: Cylindrical
- Material: High Carbon Chrome Steel
- d: 15 mm, 0.591 in
- D: 42 mm, 1.6535 in
- F: 19 mm, 0.748 in
- C: 18 mm, 0.7087 in
- B: 19 mm, 0.748 in
- Dynamic Load Rating: 22.30 kN, 5013 lbf
- Static Load Rating: 25.70 kN, 5778 lbf
- Load Rating of Track: 14.30 kN, 3200 lbf
- Limiting Speed - Grease: 5500 RPM
- Operating Temperature Range: -40 to 120 degrees C, -40 to 250 degrees F
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
