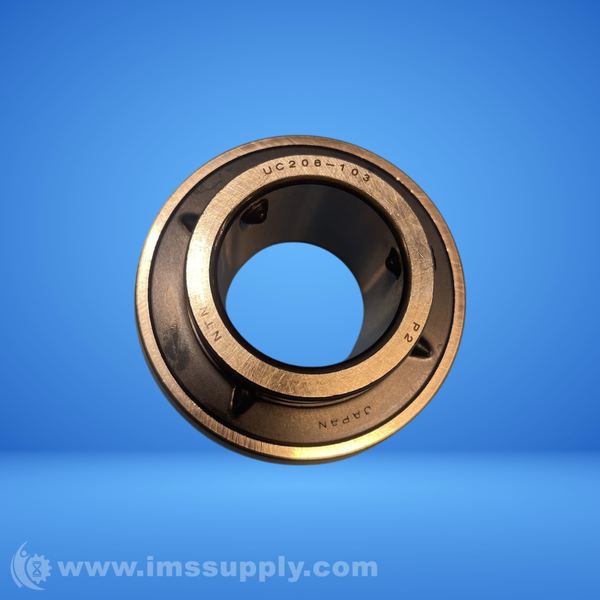

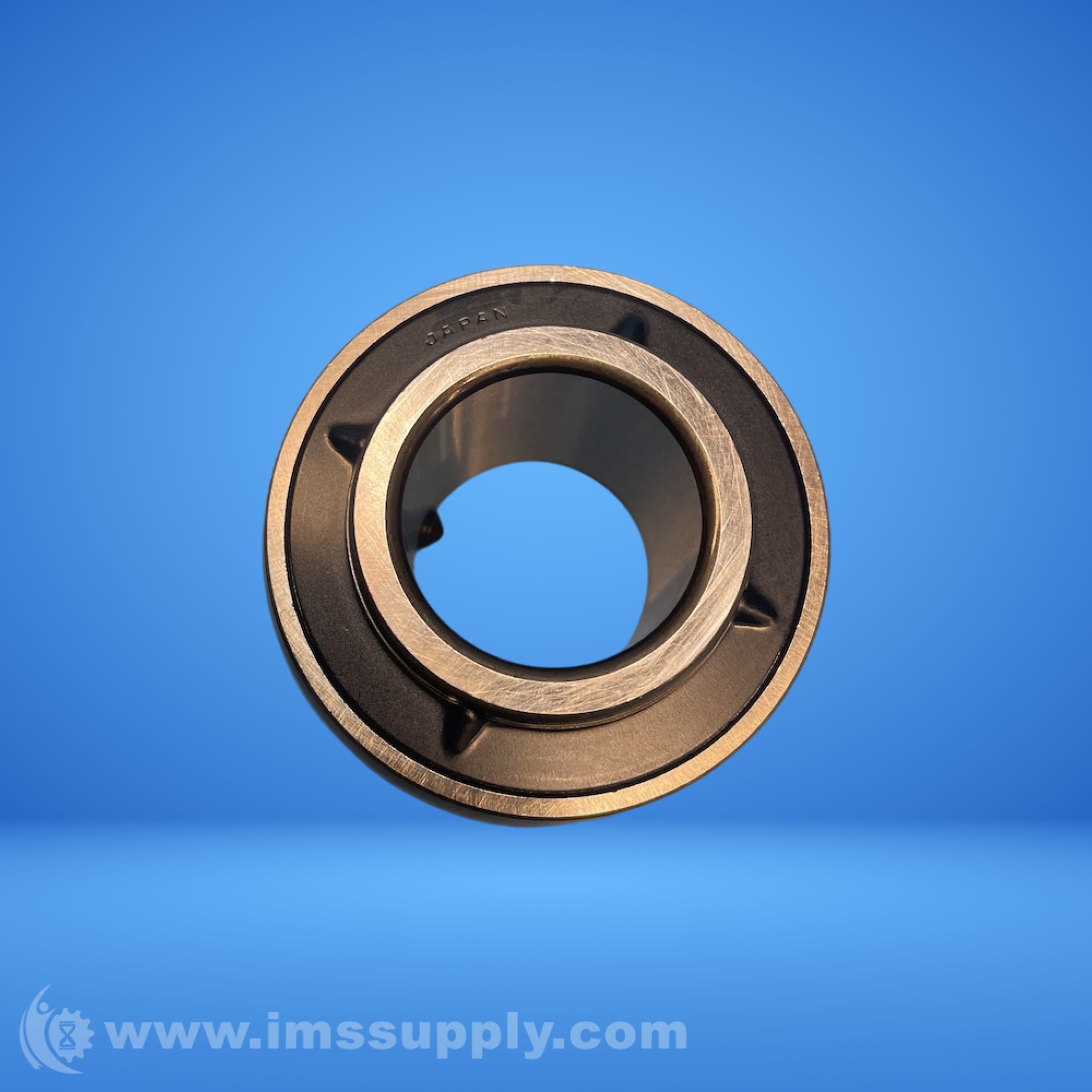

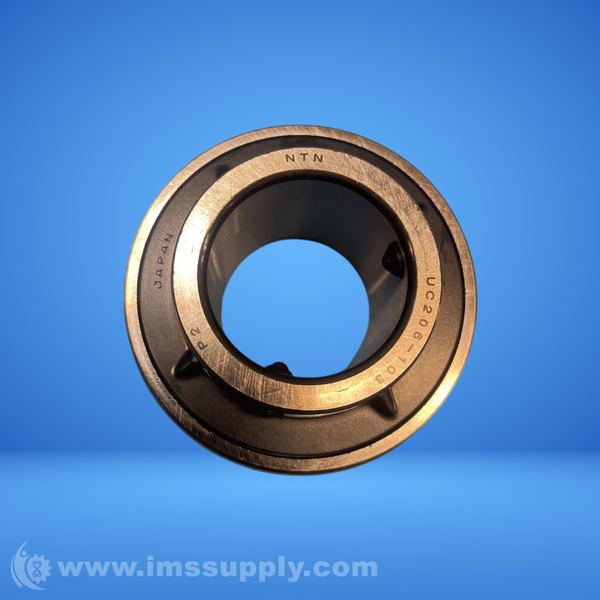

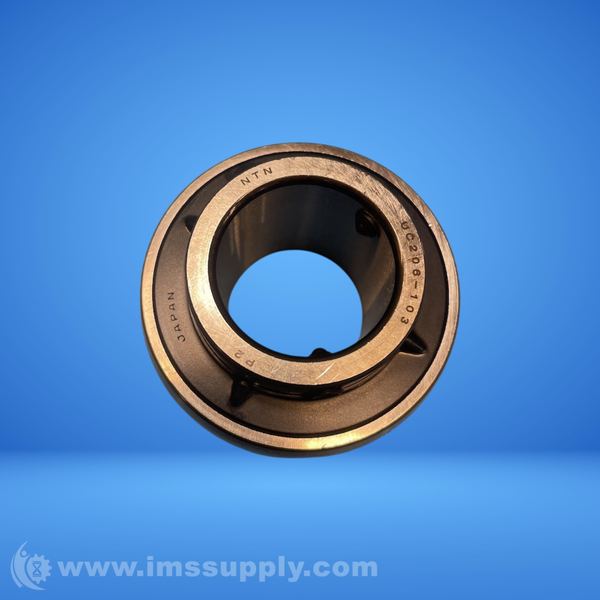

NTN UC206-103D1 INSERT BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UC206-103D1
IMS Product Code: 2124953

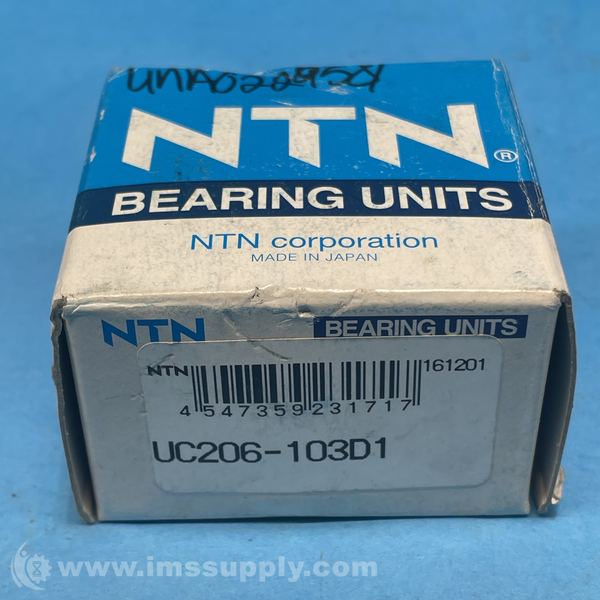

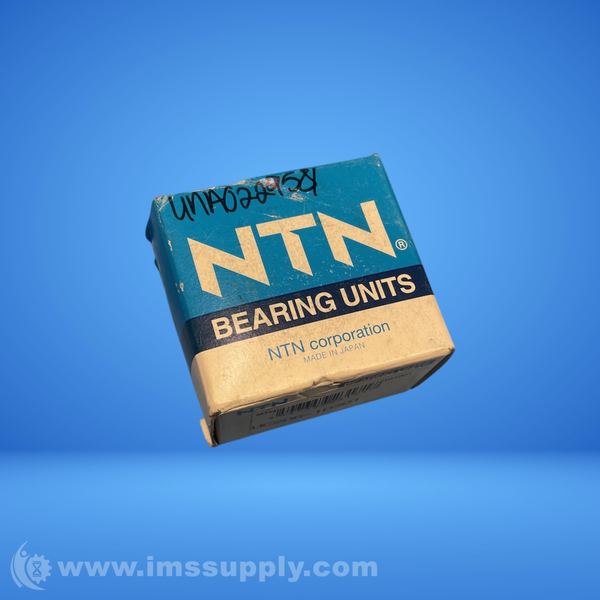

Packaging: Sold Individually
Description:
NTN UC206-103D1 Insert Bearing
Ball Insert Bearing - Straight Bore, 1-3/16 in Bore Diam., 2.4409 in OD, 1.5000 in Width, Standard Duty, Set Screw Locking
Specifications
- Type: Insert Bearing
- Bore Type: Round
- Bearing Type: Ball Bearing
- Material: Through Hardened Steel
- Ball Material: Steel
- Limiting Speed - Grease: 4900 RPM
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Precision Rating: ISO Class 0
- Performance: Standard Duty
- Locking Device: Set Screw
- Lubrication: Relubricatable
- Basic Outer Ring: 206
- Clearance: CN
- Static Load Rating: 2540 lbf, 11300 N, 11.30 kN
- Dynamic Load Rating: 4384 lbf, 19500 N, 19.50 kN
- Enclosure: Double Sealed
- Weight: 0.712 lb, 0.320 kg, 0.323 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C, -40 to 250 ºF, -40 to 120 ºC
- d: 1.1880 in, 30.163 mm, 1.1875 in
- D: 2.4409 in, 62.000 mm
- C: 0.7874 in, 20.000 mm
- B: 1.5000 in, 38.100 mm
- r: 0.0394 in, 1.000 mm
- ds: 1/4-28 UNF
- G: 0.1969 in, 5.000 mm
- d4: 1.6063 in, 40.800 mm
- S1: 0.8740 in, 22.200 mm
- S: 0.6260 in, 15.900 mm
- F: 0.1811 in, 4.600 mm
- Radial Dynamic Load Rating: 4384 lbf, 19500 N
- Radial Static Load Rating: 2540 lbf, 11300 N
- Shaft Diameter Inches: 1 3/16
- Bearing OD inch: 2.441
- Bearing OD mm: 62
- Length (inch): 1.500
- Length (mm): 38.1
- Outer Race Width (inch): 0.787
- Outer Race Width (mm): 20
- Collar Diameter (inch): 1.606
- Collar Diameter (mm): 40.8
- I.D.: 1.1875 in
- O.D.: 2.4409 in
- Width: 1.5 in
- Series: UC2
- Closure Type: Sealed
- Load Capacity: 19500 N
- Maximum Speed: 4900 rpm Grease
- Temperature Rating: -40 to 120 deg C
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
