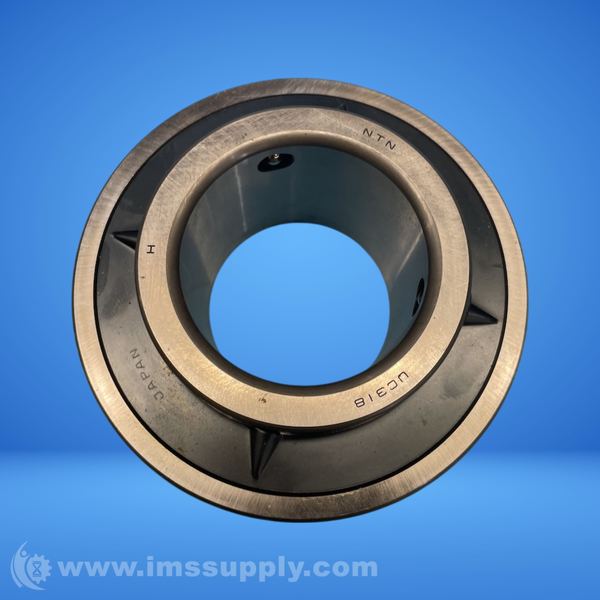

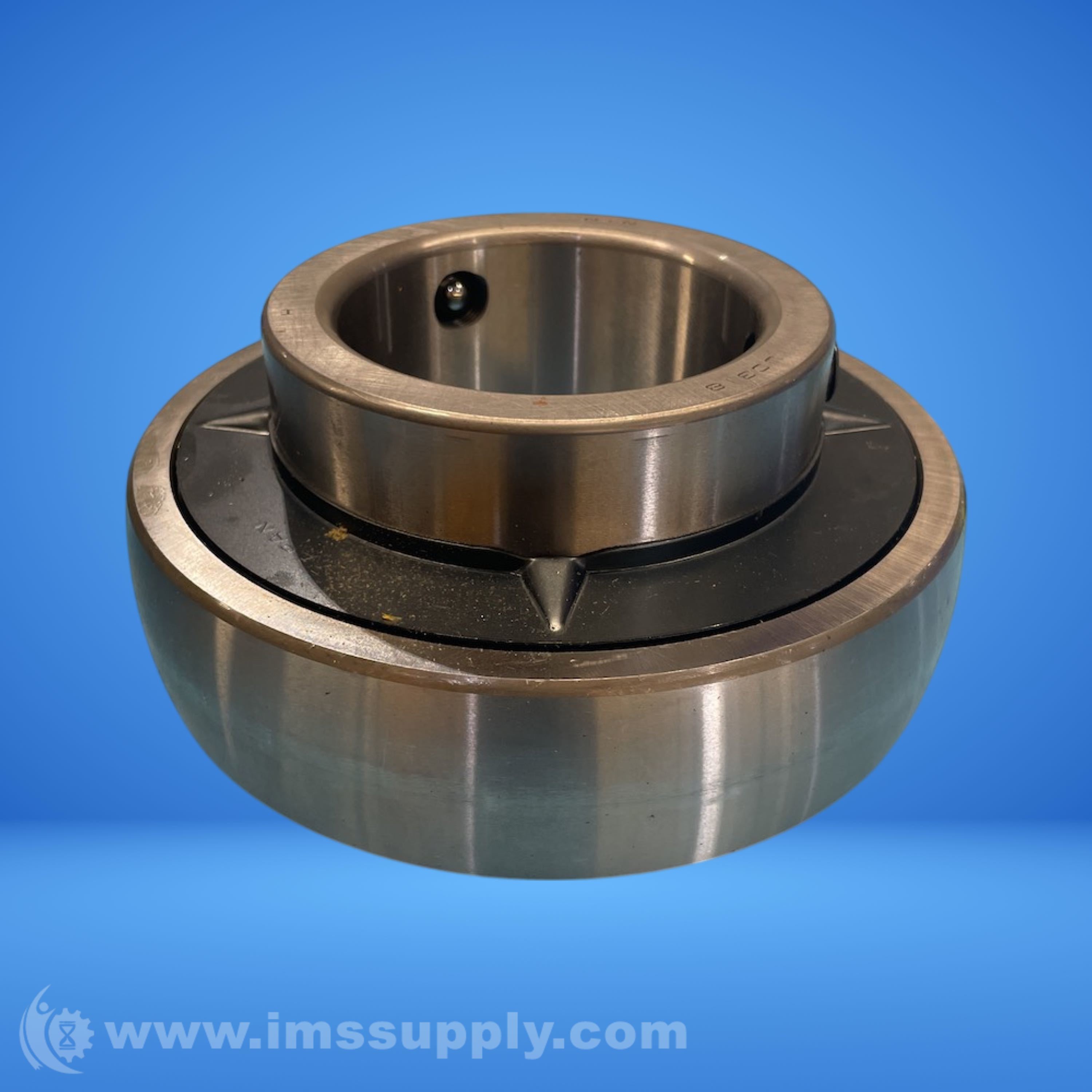

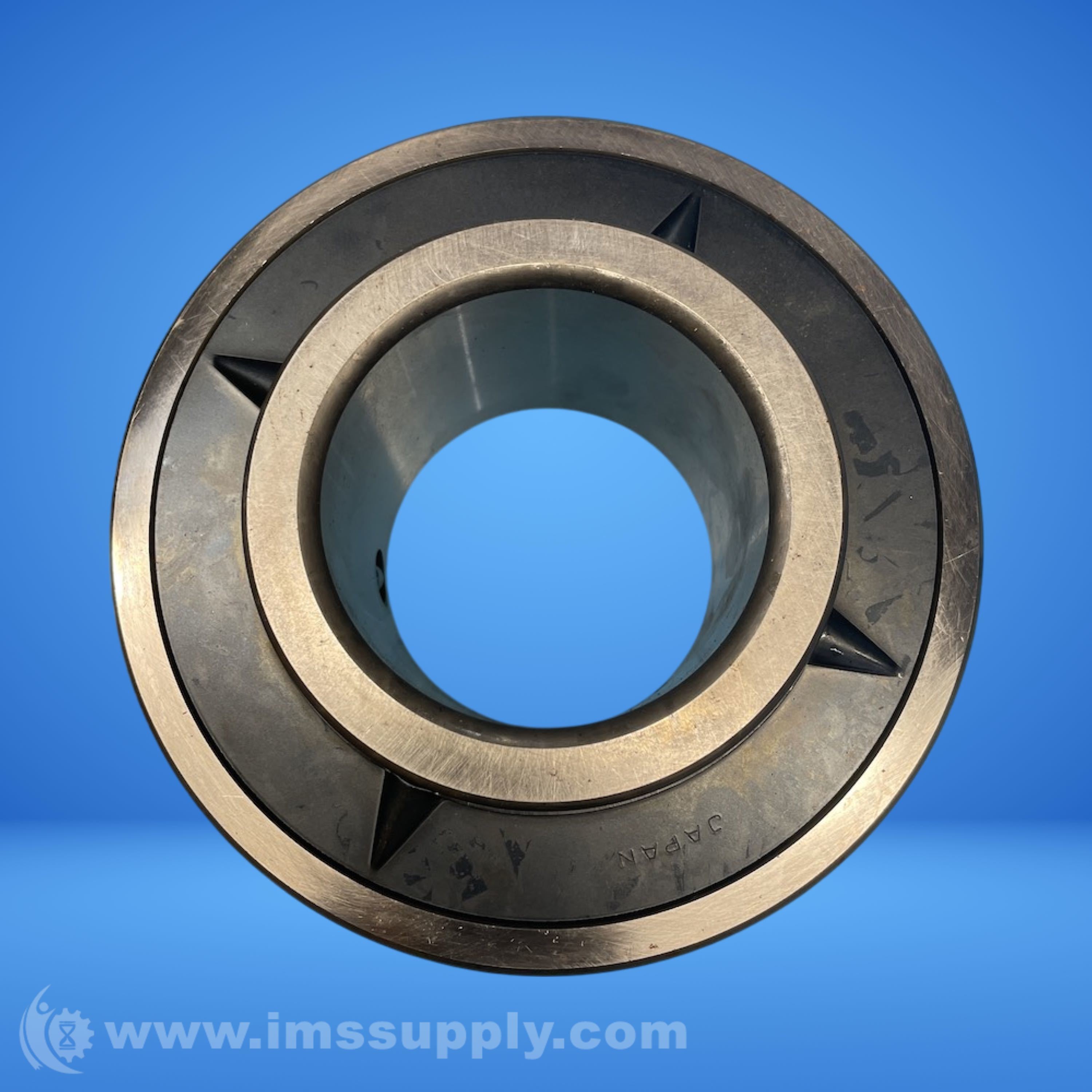

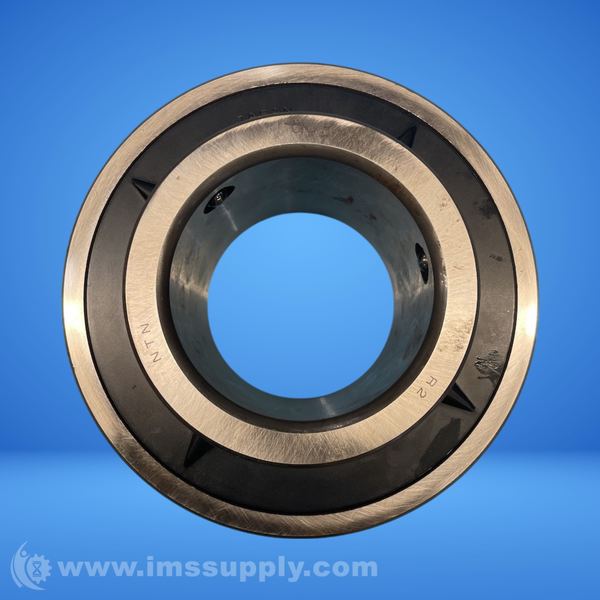

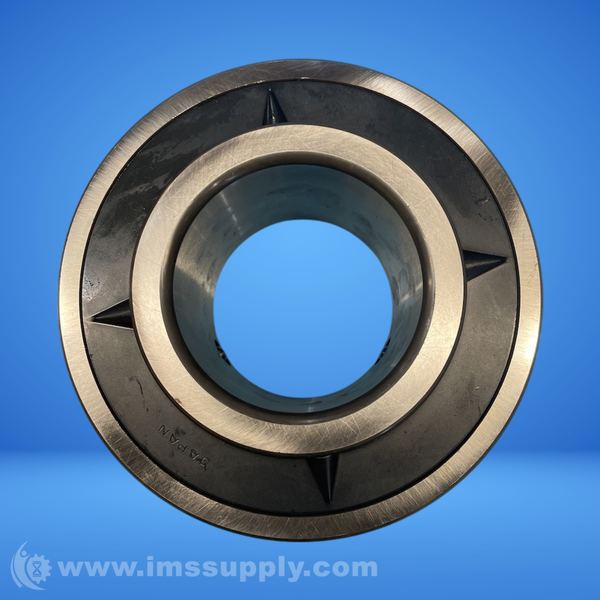

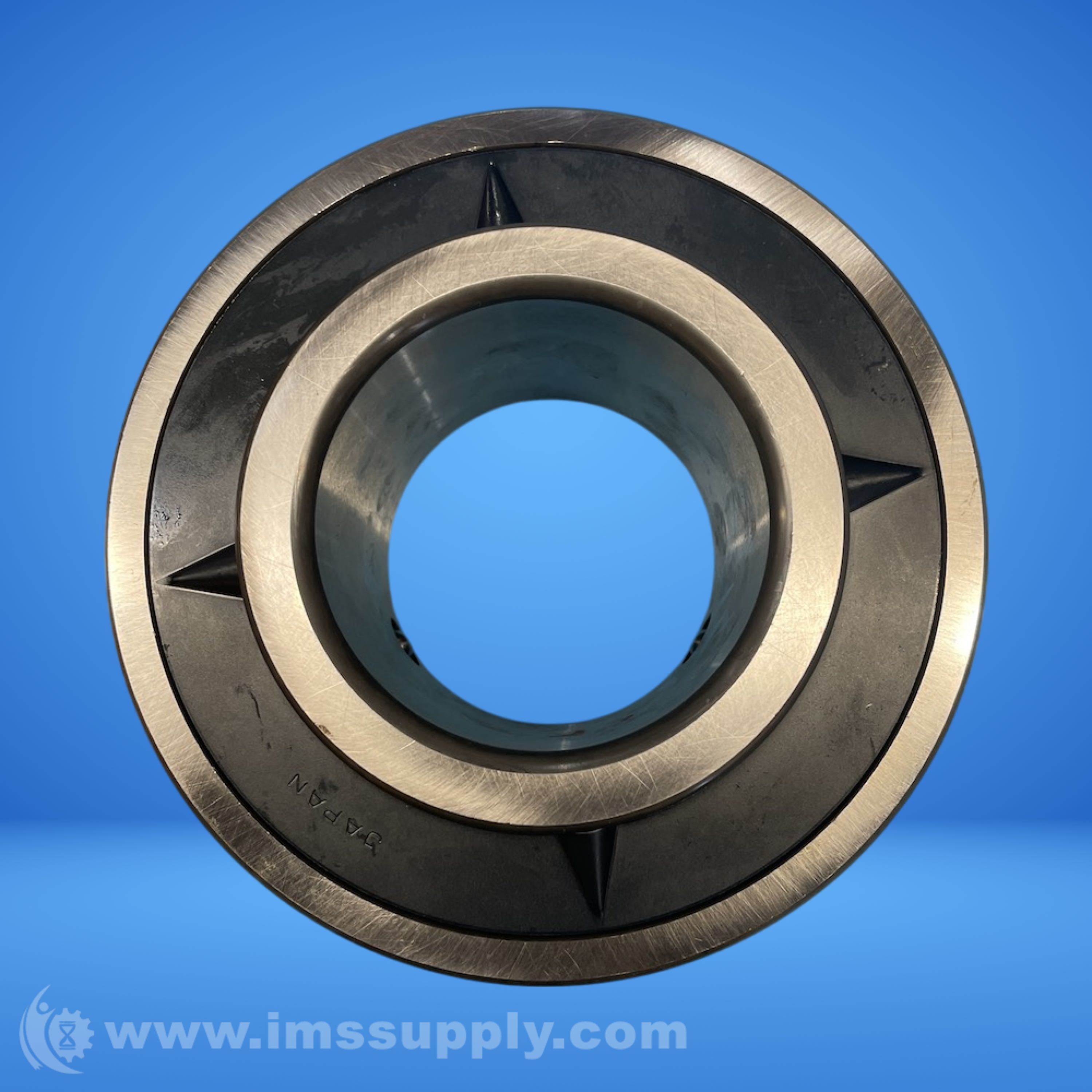

NTN UC318 INSERT BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UC318
IMS Product Code: 2127611
Packaging: Sold Individually
Description:
NTN UC318 Insert Bearing
Ball Bearing, Insert Bearing, Through Hardened Steel, Double Sealed, Set Screw Locking Device
Specifications
- Type: Insert Bearing
- Bore Type: Round
- Bearing Type: Ball Bearing
- Material: Through Hardened Steel
- Limiting Speed - Grease: 1600 RPM
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Precision Rating: ISO Class 0
- Performance: Heavy Duty
- Locking Device: Set Screw
- Lubrication: Non-Relubricatable
- Basic Outer Ring: 318
- Static Load Rating: 24100 lbf/107000 N/107.00 kN
- Dynamic Load Rating: 32000 lbf/143000 N/143.00 kN
- Enclosure: Double Sealed
- Weight: 16.579 lb/7.520 kg
- Operating Temperature Range: -40 to 250 F/-40 to 120 C
- d: 3.5433 in/90.000 mm
- D: 7.4803 in/190.000 mm
- C: 1.9291 in/49.000 mm
- B: 3.7795 in/96.000 mm
- r: 0.1181 in/3.000 mm
- ds: M16x1.5
- G: 0.6299 in/16.000 mm
- d4: 4.7598 in/120.900 mm
- S1: 2.2047 in/56.000 mm
- S: 1.5748 in/40.000 mm
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
