NTN UCFC207D1 4-BOLT ROUND FLANGED UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCFC207D1
IMS Product Code: 2129892
Packaging: Sold Individually
Description:

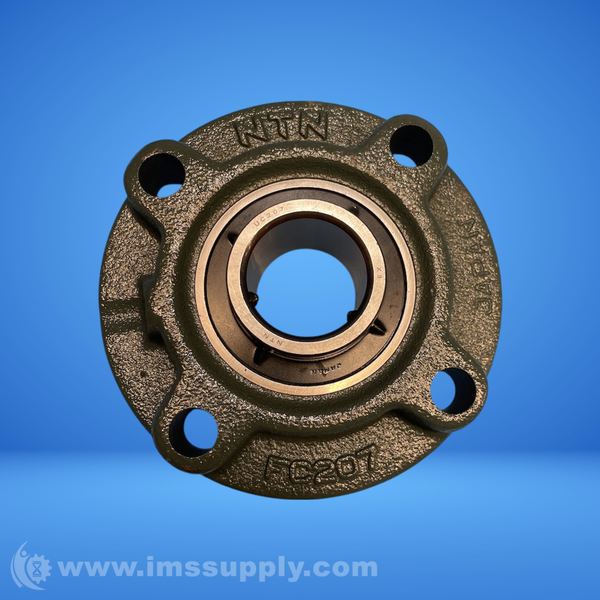

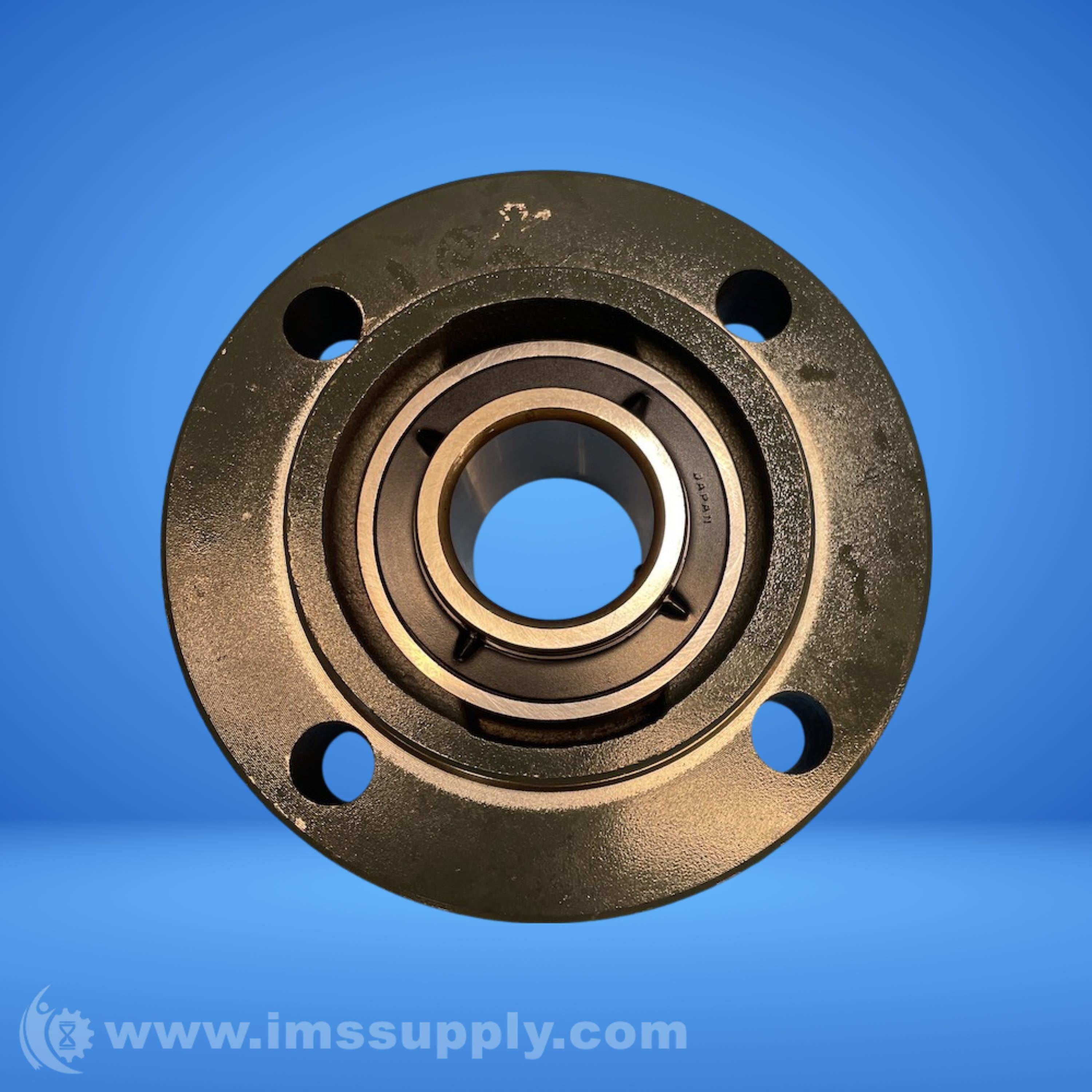

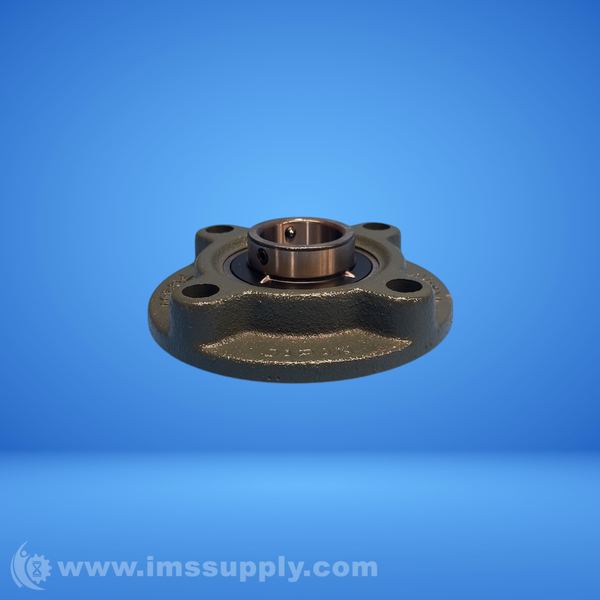

NTN UCFC207D1 4-Bolt Round Flanged Unit
Flange-Mount Ball Bearing Unit with 35 mm Bore, 4-Bolt Piloted Flange Mount, Set Screw Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Intermediate Duty, Contact Seal
Specifications
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC207D1
- Housing Number: FC207D1
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- End Type: Open
- Performance: Light Duty
- Dynamic Load Rating: 5778 lbf, 25700 N, 25.70 kN
- Static Load Rating: 3440 lbf, 15300 N, 15.30 kN
- Rotational Speed [Max]: 4200 RPM
- Weight: 3.678 lb, 1.670 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- Lubrication: Relubricatable
- d: 1.3780 in, 35.000 mm
- L: 5.3125 in, 135.0 mm
- J: 4.3281 in, 110.0 mm
- J1: 3.0625 in, 77.8 mm
- A: 1.3437 in, 34.0 mm
- A0: 1.7500 in, 44.400 mm
- A1: 1.0313 in, 26.0 mm
- A2: 0.4375 in, 11.0 mm
- A3: 0.3125 in, 8.0 mm
- H3: 3.5433 in, 90.0 mm
- N: 0.5469 in, 14.0 mm
- B: 1.6890 in, 42.900 mm
- S: 0.6890 in, 17.500 mm
- F: 0.1811 in, 4.600 mm
- Series: UCFC
- Duty Type: Intermediate Duty
- Bolt Circle Diameter: 4.3281 in
- Expansion Type: Non-Expansion Bearing (Fixed)
- Housing Width: 1.3437 in
- Overall Width: 1.7500 in
- Bore Type: Straight
- Radial Dynamic Load Capacity: 5800 lbf
- Radial Static Load Capacity: 3450 lbf
- Length Through Bore: 1-3/4 in
- Finish Coating: Uncoated
- Standards Met: JIS
