NTN UCFL205D1 2-BOLT RHOMBUS FLANGED UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCFL205D1
IMS Product Code: 2135819
Packaging: Sold Individually
Description:

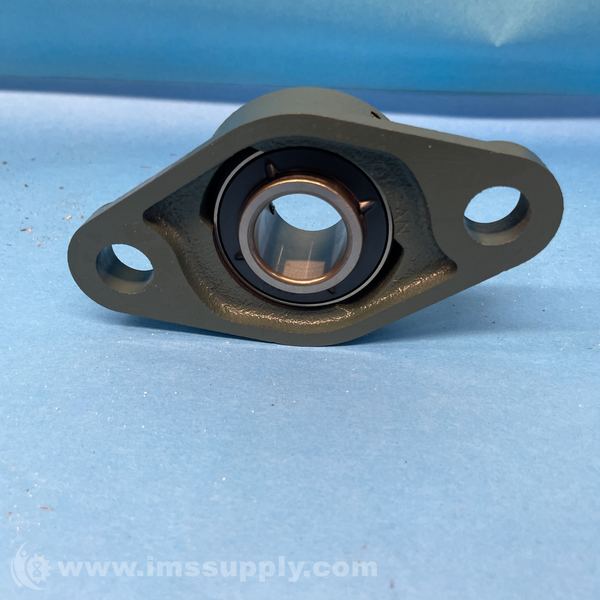

NTN UCFL205D1 2-Bolt Rhombus Flanged Unit
NTN UCFL205D1 is a 2-bolt rhombus flanged unit bearing with a cast iron housing and set screw locking device.
Specifications
- Type: 2-Bolt Rhombus Flanged Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC205D1
- Housing Number: FL205D1
- Housing Material: Cast Iron
- Dynamic Load Rating: 14000 N
- Static Load Rating: 7850 N
- Rotational Speed [Max]: 5900 RPM
- Operating Temperature Range: -40 to 120 degrees C
- Lubrication: Relubricatable
- d: 25 mm
- H: 130 mm
- L: 68 mm
- J: 99 mm
- A: 27 mm
- A0: 35.8 mm
- A1: 13 mm
- A2: 16 mm
- N: 16 mm
- B: 34.1 mm
- S: 14.3 mm
- F: 4.5 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
