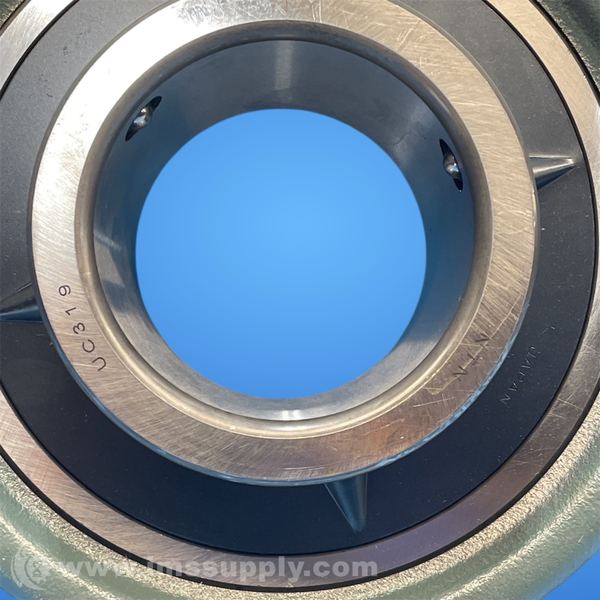

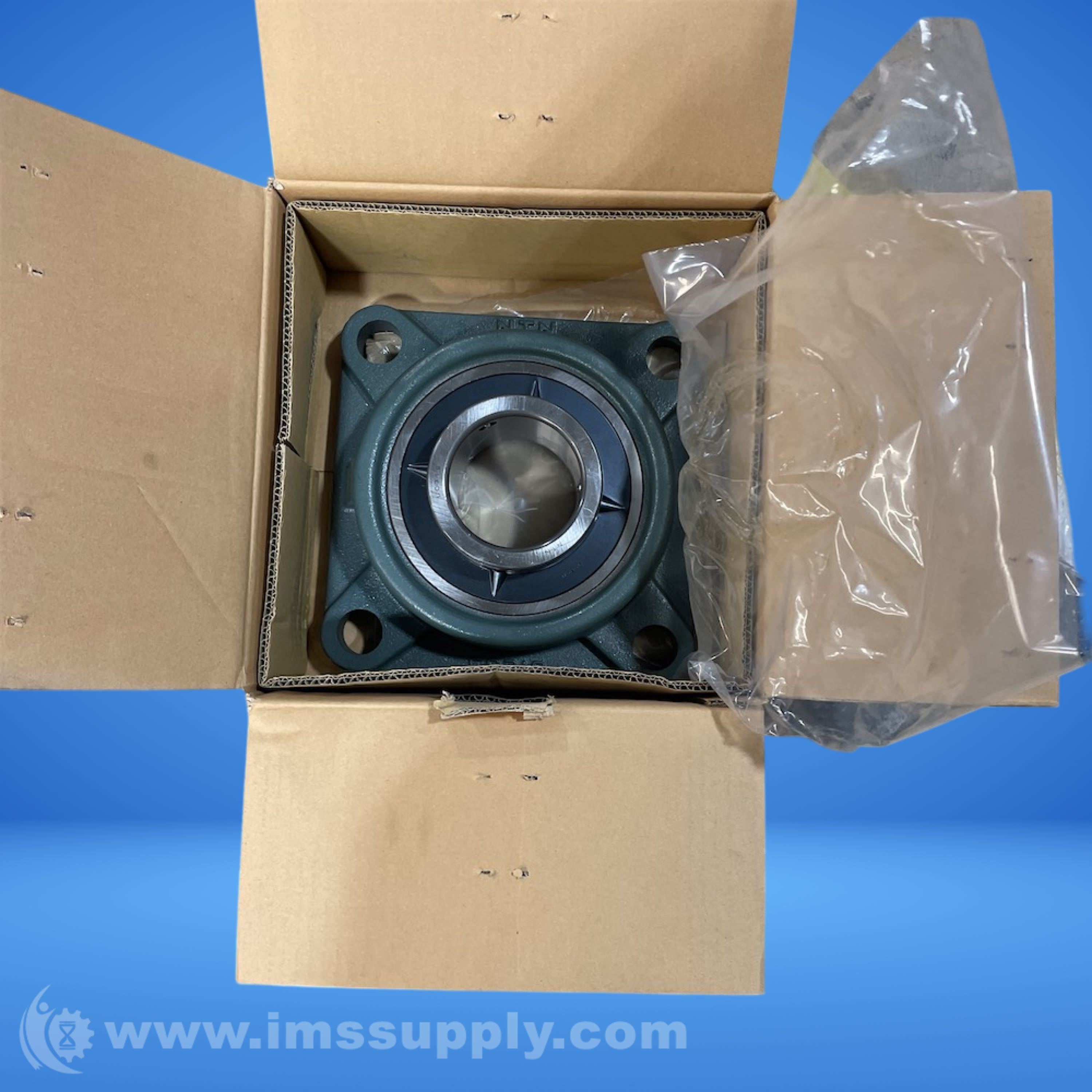

NTN UCFS319 4-BOLT SQUARE FLANGED UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCFS319
IMS Product Code: 2124042
Packaging: Sold Individually
Description:
NTN UCFS319 4-Bolt Square Flanged Unit
4-Bolt Square Flanged Unit - 95 mm Bore, 4-Bolt Flange Mount, Set Screw Locking, Cast Iron Housing Material, Heavy Duty, Contact Seal
Specifications
- Type: 4-Bolt Square Flanged Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC319
- Housing Number: FS319
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- End Type: Open
- Performance: Heavy Duty
- Dynamic Load Rating: 34396 lbf
- Static Load Rating: 26752 lbf
- Rotational Speed [Max]: 1500 RPM
- Weight: 52.920 lb
- Operating Temperature Range: -40 to 250 F
- Lubrication: Non-Relubricatable
- d: 3.7400 in
- L: 11.4063 in
- J: 8.9688 in
- A: 3.7031 in
- A0: 4.7656 in
- A1: 1.1875 in
- A2: 1.5313 in
- A3: 0.7813 in
- H3: 9.8425 in
- N: 1.3750 in
- B: 4.0551 in
- S: 1.6142 in

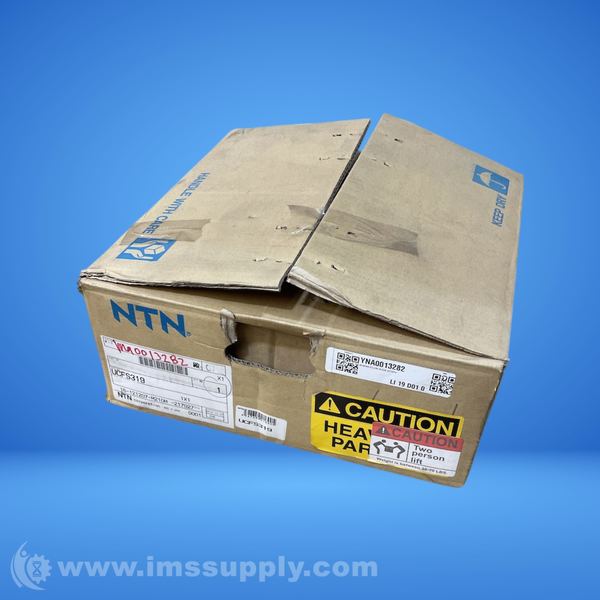

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 2 minutes.
