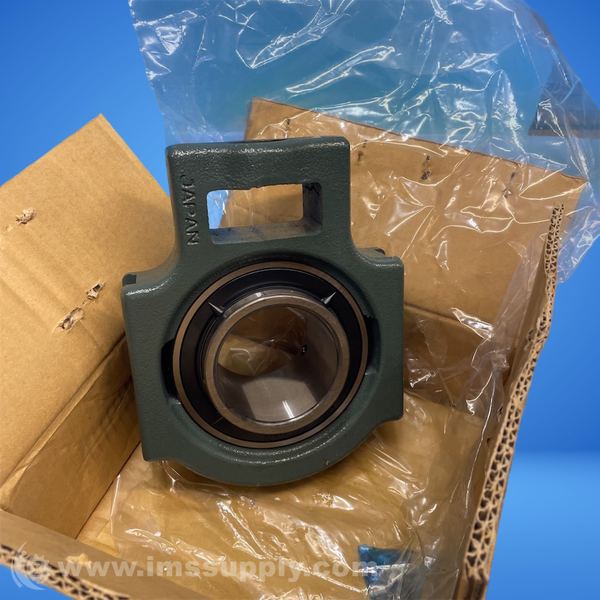

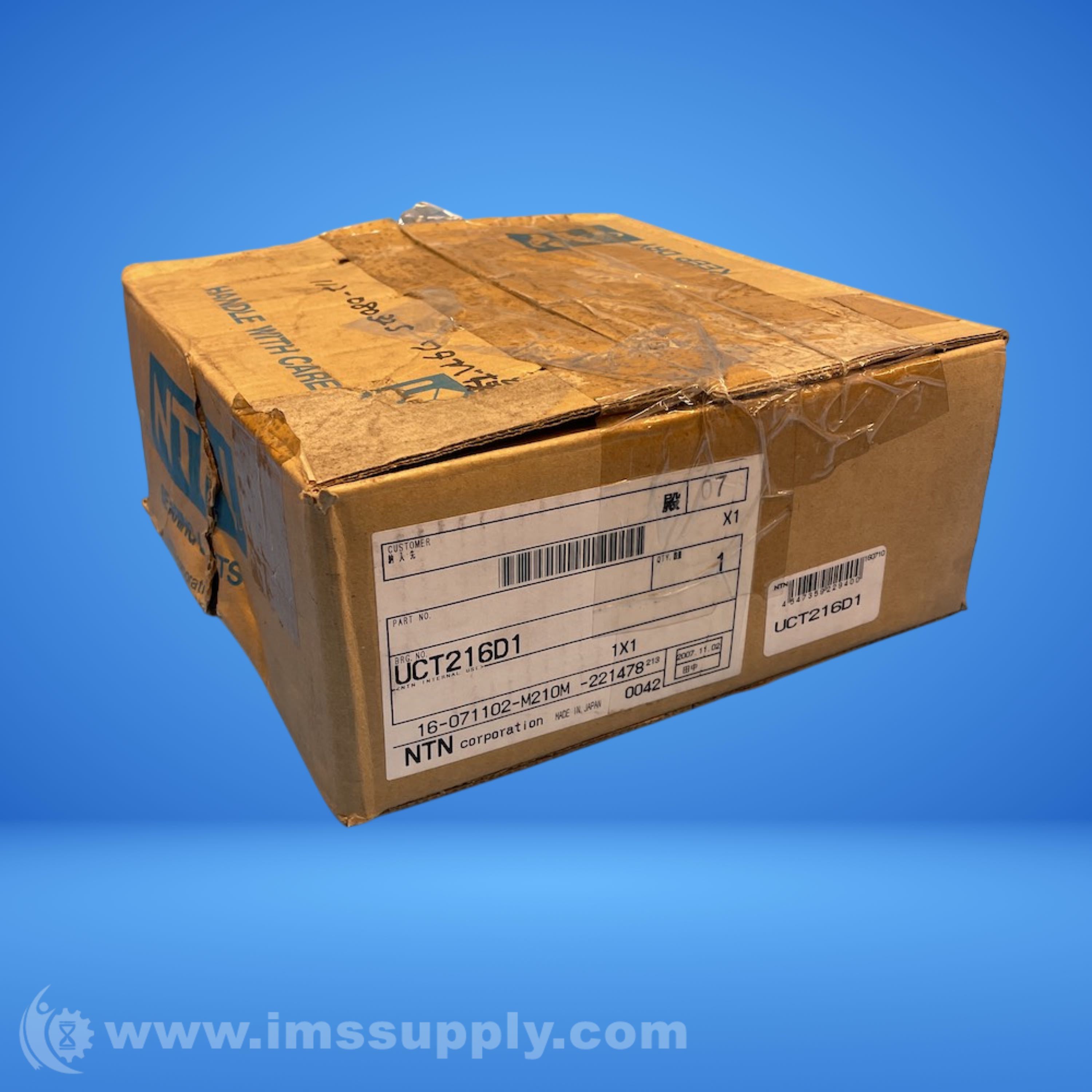

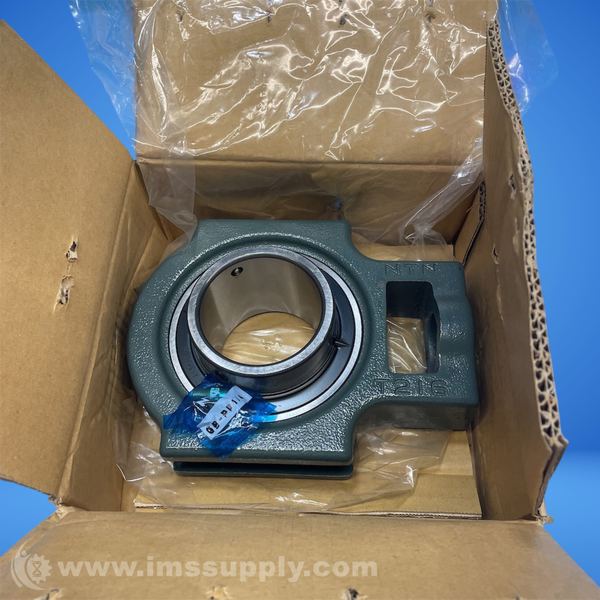

NTN UCT216D1 TAKE-UP BALL BEARING UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCT216D1
IMS Product Code: 2153242
Packaging: Sold Individually
Description:
NTN UCT216D1 Take-Up Ball Bearing Unit
Take-Up Ball Bearing Unit - Side Mount, 80 mm Bore, Cast Iron Housing, Set Screw Collar, Light Duty
Specifications
- Unit Type: Side Mount
- Bore Diameter: 80 mm
- Housing Material: Cast Iron
- Locking Device: Set Screw
- Duty Type: Light Duty
- Seal Type: Contact
- Lubrication Type: Lubrication Fitting
- Expansion Type: Non-Expansion Bearing (Fixed)
- Series: UCT
- Max Rpm: 2000 rpm
- Radial Static Load Capacity: 11900 lbf
- Radial Dynamic Load Capacity: 16300 lbf
- Weight: 18 lbs
- Length: 235 mm
- Width: 82.6 mm
- Height: 184 mm
- Load Capacity: 72500 N
- Operating Temperature Range: -40 to 250 degrees F
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 21 minutes.
