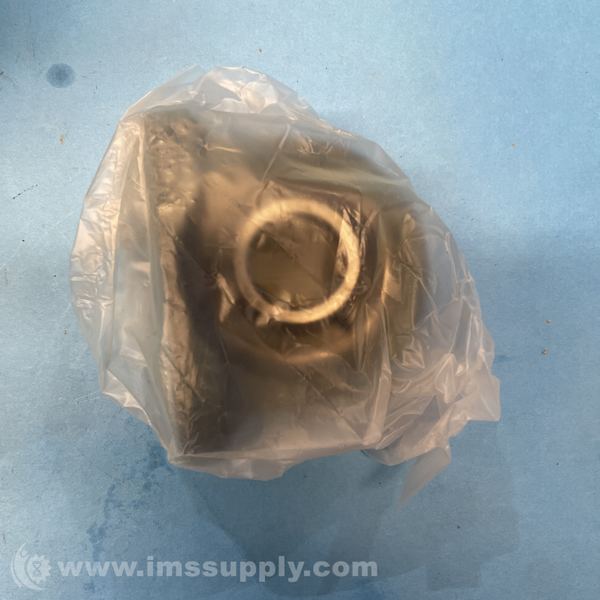

NTN UCUP204 PILLOW BLOCK UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCUP204
IMS Product Code: 2135518
Packaging: Sold Individually
Description:
NTN UCUP204 Pillow Block Unit
Pillow Block Unit, Set Screw, Narrow Style, UCUP Type
Specifications
- Type: Pillow Block Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC204
- Housing Number: UP204
- Housing Material: Steel
- End Type: Open
- Performance: Light Duty
- Dynamic Load Rating: 2878 lbf, 12800 N, 12.80 kN
- Static Load Rating: 1495 lbf, 6650 N, 6.65 kN
- Rotational Speed [Max]: 6700 RPM
- Weight: 1.323 lb, 0.600 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- Lubrication: Non-Relubricatable
- d: 0.7870 in, 20.000 mm
- J: 2.0625 in, 52.0 mm
- L: 3.0000 in, 76.0 mm
- A: 1.5000 in, 38.0 mm
- H: 1.1875 in, 30.2 mm
- H1: 0.4375 in, 11.0 mm
- H2: 2.4375 in, 62.0 mm
- N: M10x1.5
- j: 0.5000 in, 13.0 mm
- B: 1.2205 in, 31.000 mm
- S: 0.5000 in, 12.700 mm
- Ball Material: Through Hardened
- Outside Diameter: 1.8500 in, 47.000 mm
- Bore Type: Cylindrical
- Outside Ring Width: 0.6690 in, 17.000 mm
- Inside Ring Width: 1.2200 in, 31.000 mm
- Clearance: CN
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0

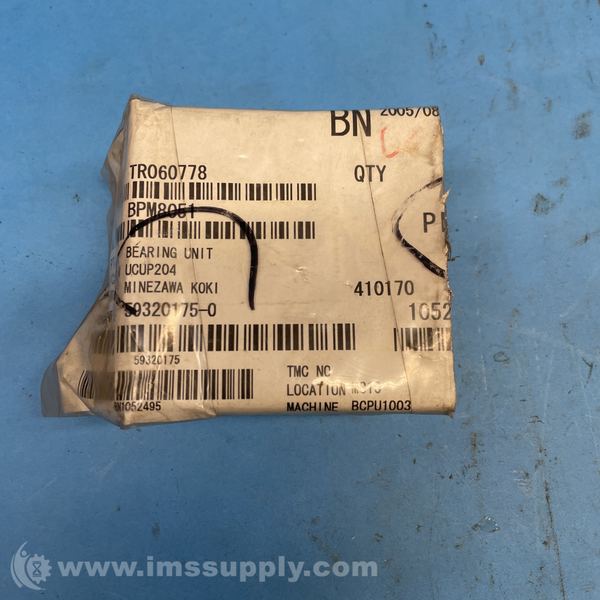

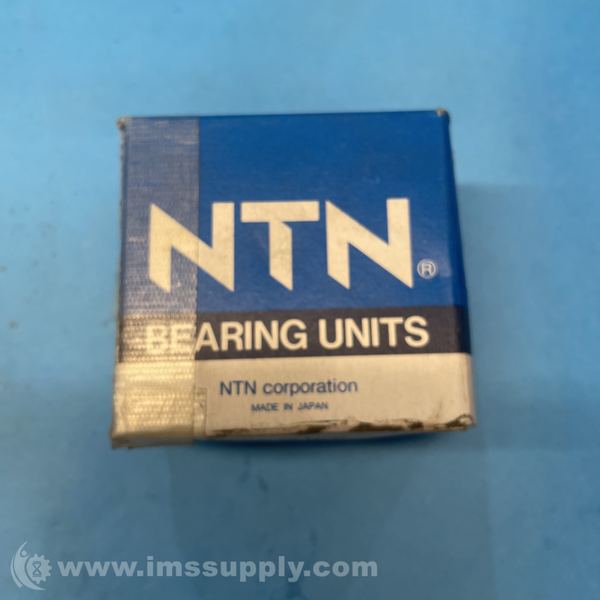

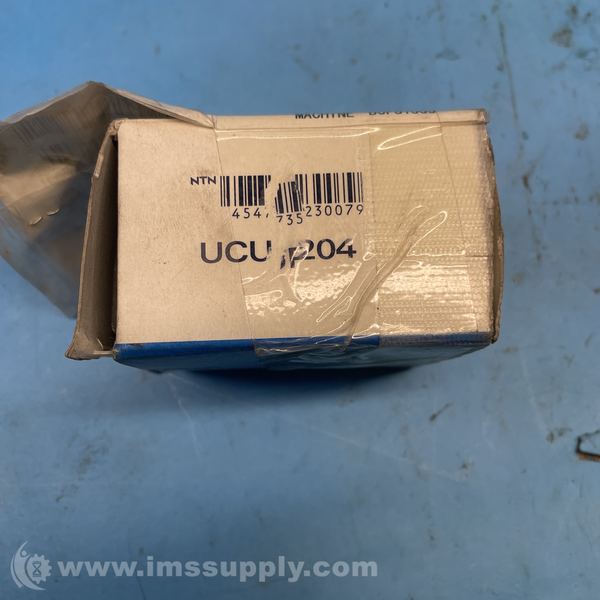

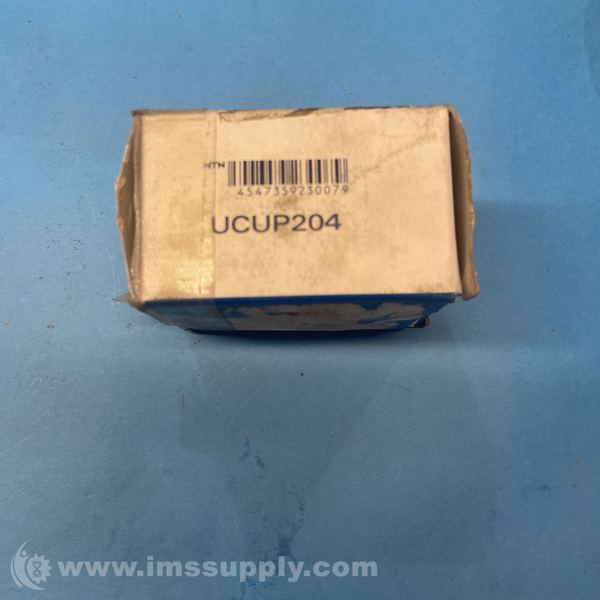

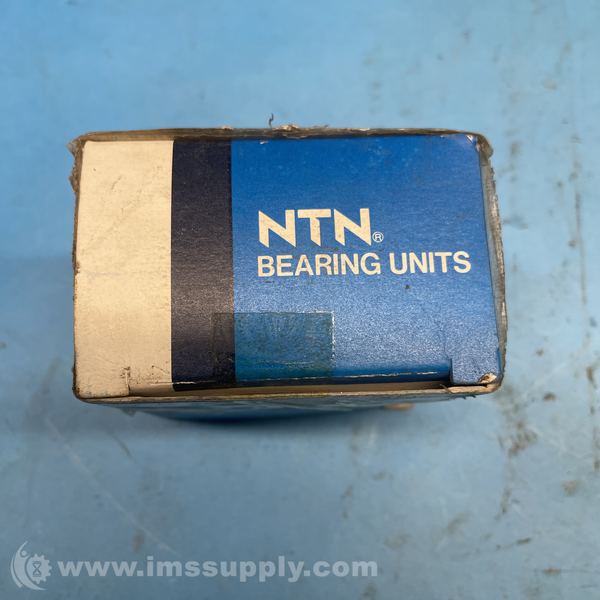

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
