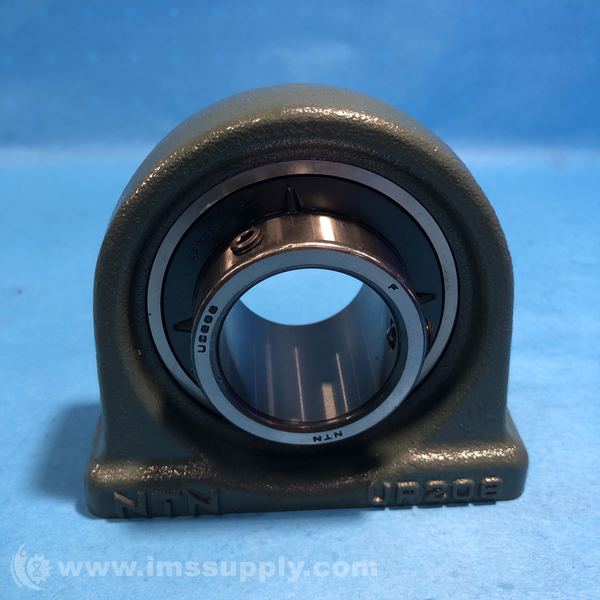

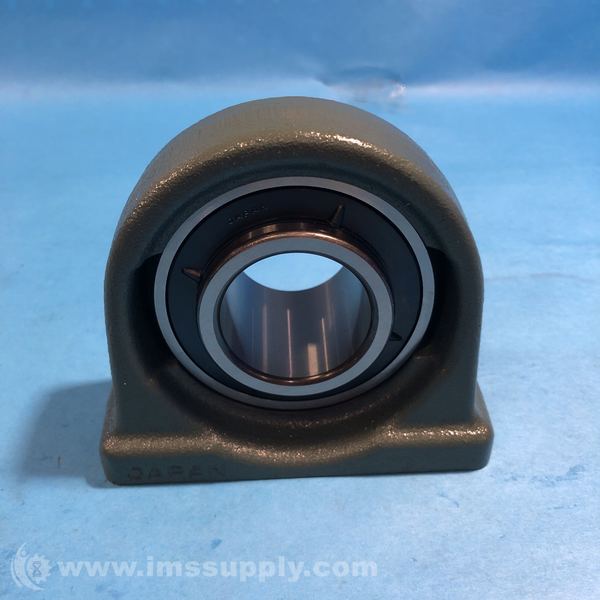

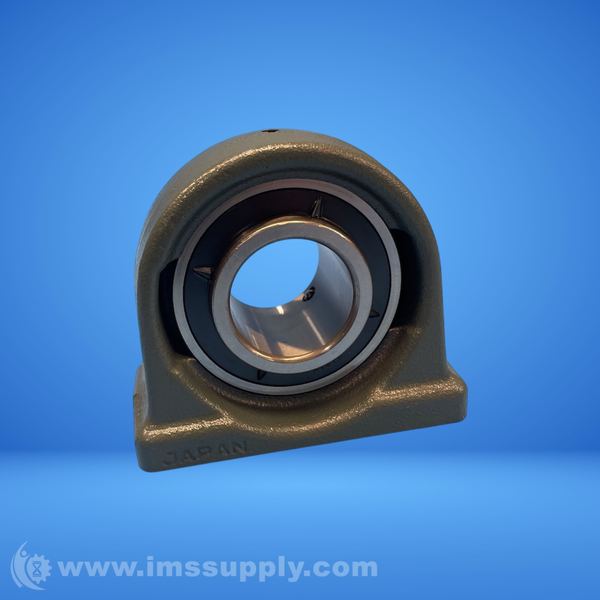

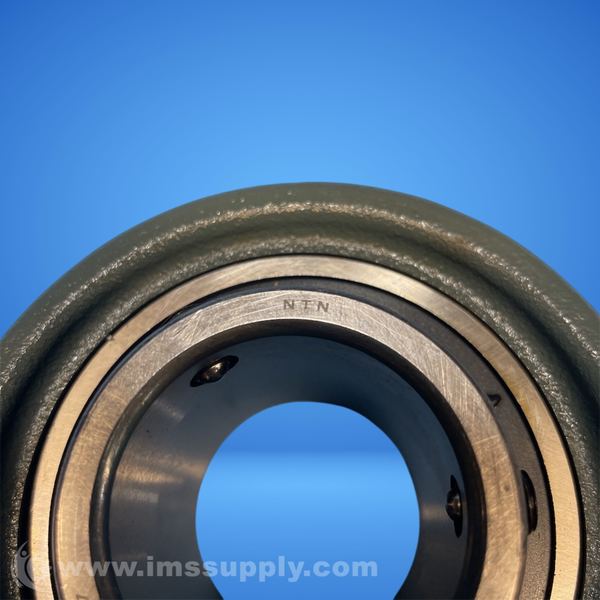

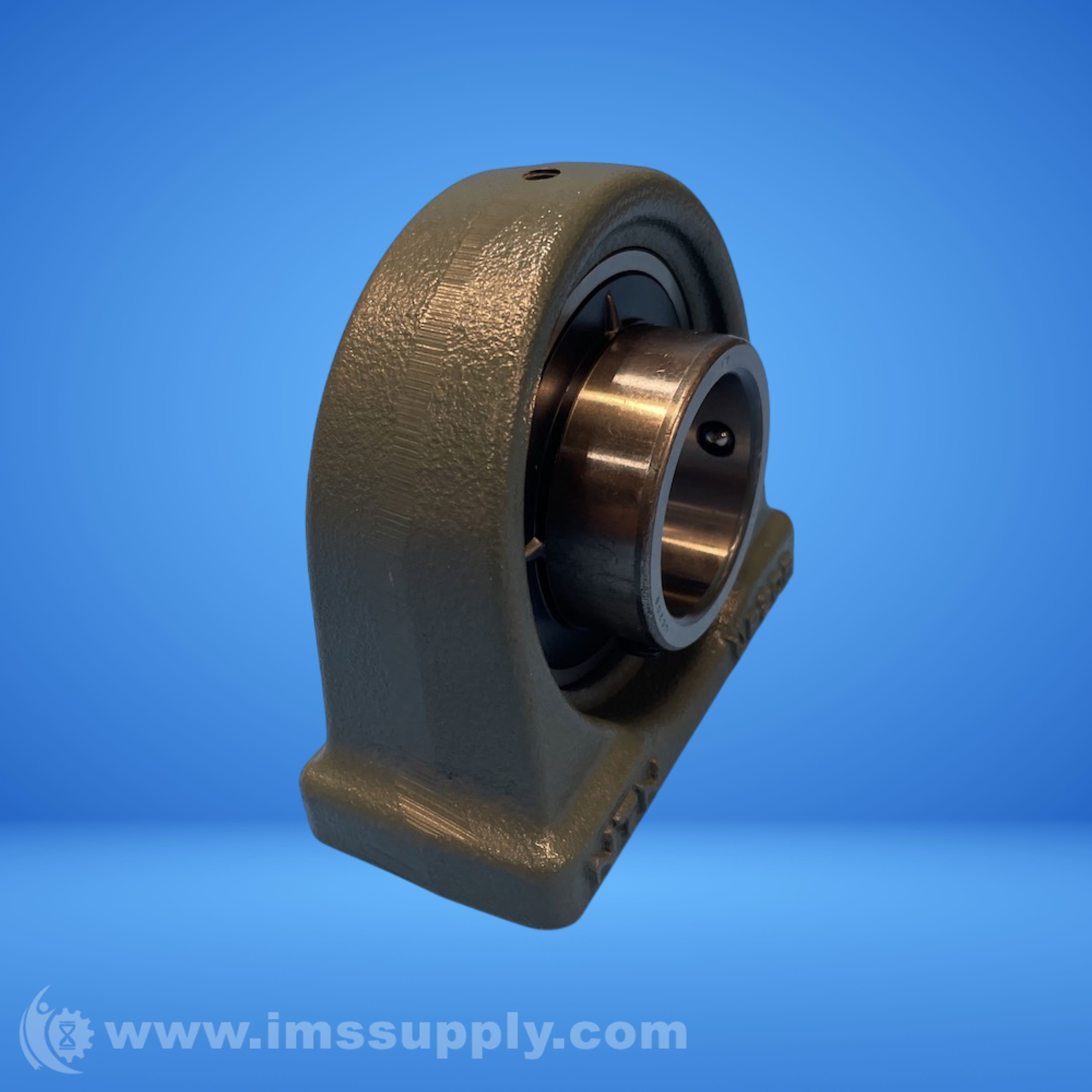

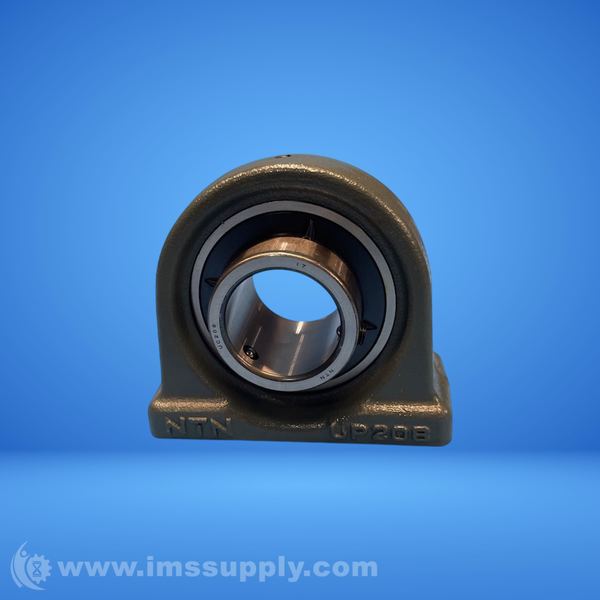

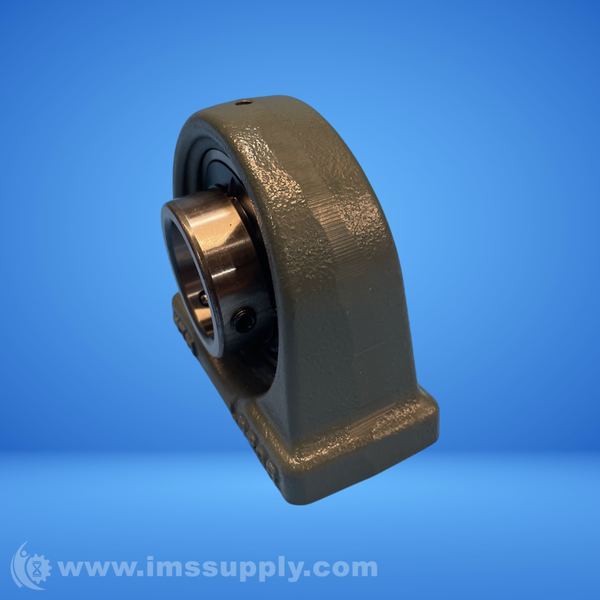

NTN UCUP208 PILLOW BLOCK UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCUP208
IMS Product Code: 1999286
Packaging: Sold Individually
Description:
NTN UCUP208 Pillow Block Unit
Pillow Block Unit, Set Screw, Narrow Style, UCUP Type
Specifications
- Type: Pillow Block Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC208
- Housing Number: UP208
- Housing Material: Steel
- End Type: Open
- Performance: Light Duty
- Dynamic Load Rating: 6550 lbf / 29100 N / 29.10 kN
- Static Load Rating: 4000 lbf / 17800 N / 17.80 kN
- Rotational Speed [Max]: 3700 RPM
- Weight: 1.800 kg
- Operating Temperature Range: -40 to 120 degrees C
- Lubrication: Non-Relubricatable
- d: 40.000 mm
- J: 84.0 mm
- L: 116.0 mm
- A: 54.0 mm
- H: 49.2 mm
- H1: 13.0 mm
- H2: 100.0 mm
- N: M14x2
- j: 20.0 mm
- B: 49.200 mm
- S: 19.000 mm
- Material: Non-Stainless Steel

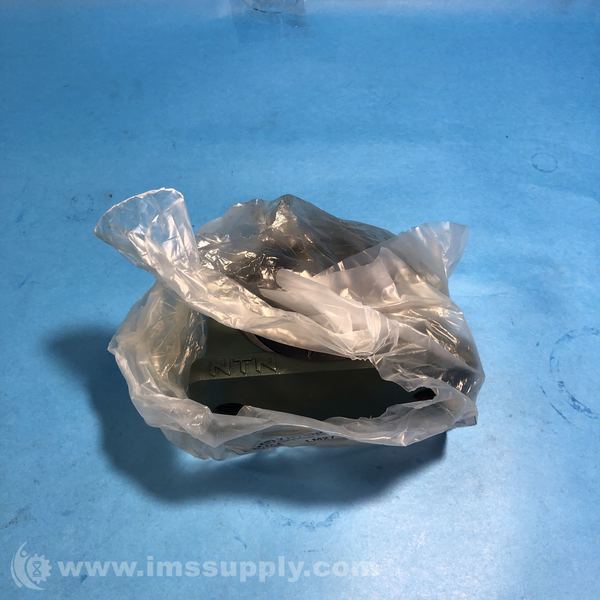

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
