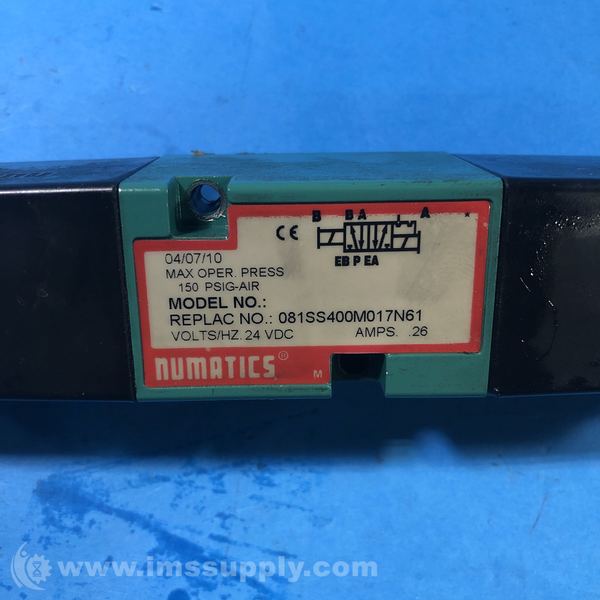

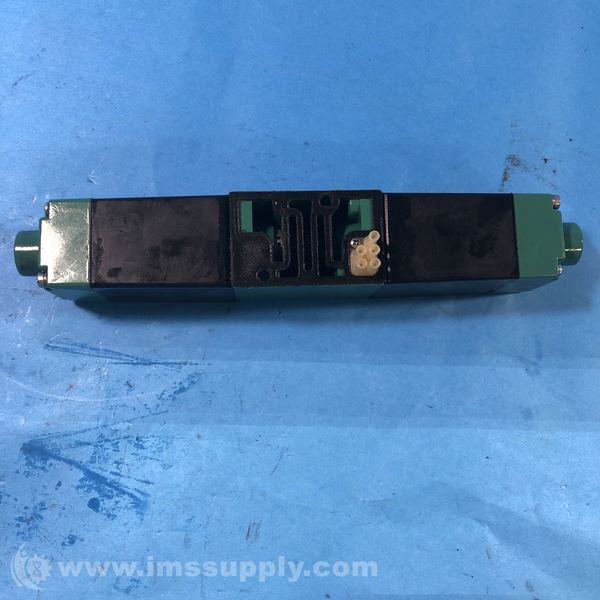

NUMATICS 081SS400M017N61 DOUBLE DIRECT SOLENOID VALVE
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: 081SS400M017N61
IMS Product Code: 984508
Packaging: Sold Individually
Description:
Numatics 081SS400M017N61 Double Direct Solenoid Valve
4-way, 2-position solenoid valve with plug-in wiring and 24 VDC operation.
Specifications
- CV: 0.8 to 1.0
- Port Sizes: 1/8, 1/4 NPTF & G
- Valve Function: 5-ported, 2 and 3-position, 4-way, spool & sleeve
- Flow Capacity: 37 to 46 SCFM @ 80 PSIG / 790 to 985 NI/M @ 6 BAR
- Operating Pressure Range: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
- Pilot Pressure Range: 20 to 115 PSIG / 1.5 to 8 BAR
- Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
- Control Function: Double Direct Solenoid
- Valve Operation: 4-way 2-position - (5/2) detent
- Voltage: 24 VDC w/diode
- Wiring: Plug-in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, February 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
