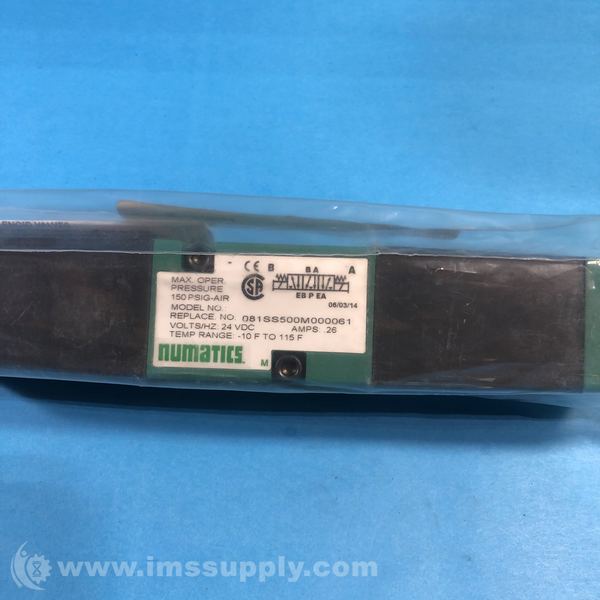

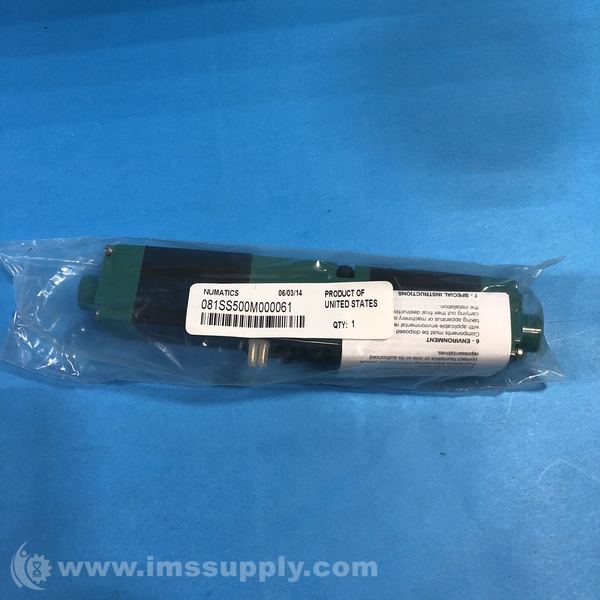

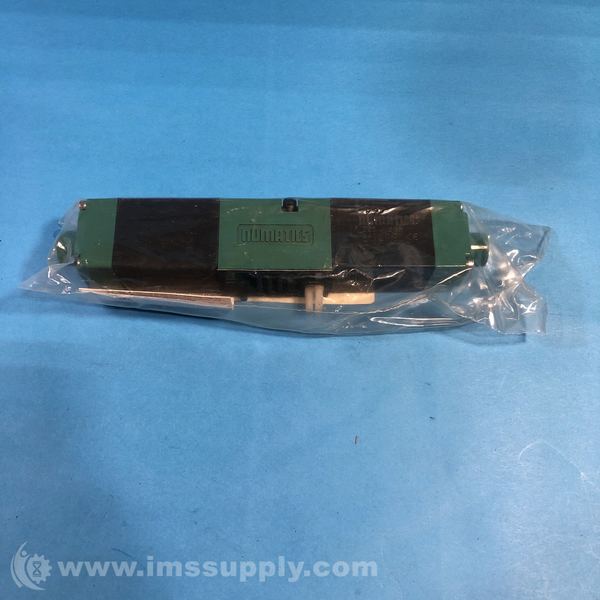

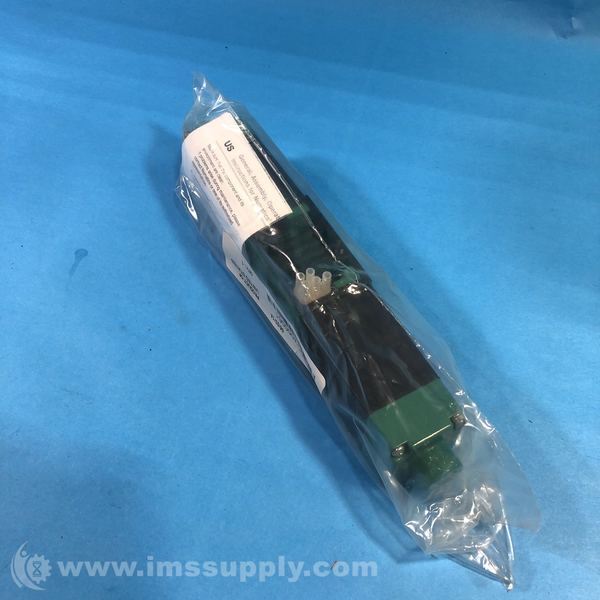

NUMATICS 081SS500M000061 SOLENOID VALVE
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: 081SS500M000061
IMS Product Code: 1734565
Packaging: Sold Individually
Description:
Numatics 081SS500M000061 Solenoid Valve
4-Way, 3-Position Double Direct Solenoid Valve with 24V DC and 1/8" NPTF Ports
Specifications
- Actuator Type: Double Solenoid
- Air Valve Type: 4-Way, 3-Position
- Ambient Temp. Range: -10 Degrees to 115 Degrees F
- Application: High Cycle-Rate Machines
- Body Features: Single
- Body Material: Steel
- Body Style: Base-Mounted
- Center Position: Open
- Coefficient of Volume (Cv): 0.8
- Control Function: Double Direct Solenoid
- Duty Cycle: Continuous
- Electrical Connection Type: Plug-In
- Exhaust Port Connection Gender: Female
- Flow Capacity: 37 to 46 SCFM @ 80 PSIG
- Flow Rate: 37 cfm
- For Media: Air; Inert Gas
- Function: 3 Position, 4-Way (5/3), Open Center, Dual Pressure
- Includes Mounting Hardware: Hardware Not Included
- Inlet Port Connection Gender: Female
- Inlet Port Connection Size: 1/8 in
- Inlet Port Connection Type: NPT
- Mounting: Valve Unit, w/o Mounting
- NEMA Rating: 4
- Number of Ports: 5
- Number of Positions: Three-Position
- Number of Ways: Four-Way
- Operating Pressure - Maximum: 150 psi
- Operating Pressure - Minimum: 14 psi
- Operating Pressure Range: 28" HG. VACUUM TO 150 PSIG
- Operating Temperature - Maximum: 115 °F
- Operating Temperature - Minimum: -10 °F
- Override: Non-Locking
- Overall Height: 3-1/32 in
- Overall Length: 4-9/16 in
- Overall Width: 2 in
- Pilot Port Connection Gender: Female
- Pilot Port Connection Size: 1/8 in
- Pilot Port Connection Type: NPT
- Pilot Pressure Range: 20 TO 115 PSIG
- Pilot Type: Internal Pilot; Remote Pilot
- Pipe Size: 1/8"
- Port Size: 1/8"
- Port Type: FNPT Pressure Ports w/FNPT Conduit Ports or Valve Unit w/o Mounting
- Power Consumption: 6 W
- Pressure Range: 0 to 150 psi
- Return Action: Solenoid Return
- Series: Mark 8
- Spool Material: Stainless Steel
- Temperature Range: -10F To +115F (-23C To +46C)
- Type: Solenoid Valve
- Valve Configuration: 4 WAY 3 POSITION - (5/3) OPEN CENTER
- Valve Type: Spool
- Voltage: 24 VDC
- Wiring Option: Plug-in, w/Light, VDC
