NUMATICS 554SS43AK000030 SOLENOID VALVE
Quick Overview
Manufactured By: NUMATICS

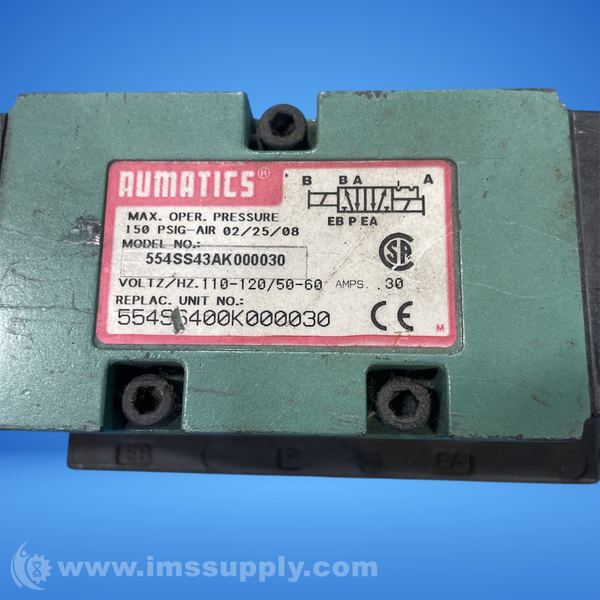

Manufacturer Part Number: 554SS43AK000030
IMS Product Code: 2154620
Packaging: Sold Individually
Description:

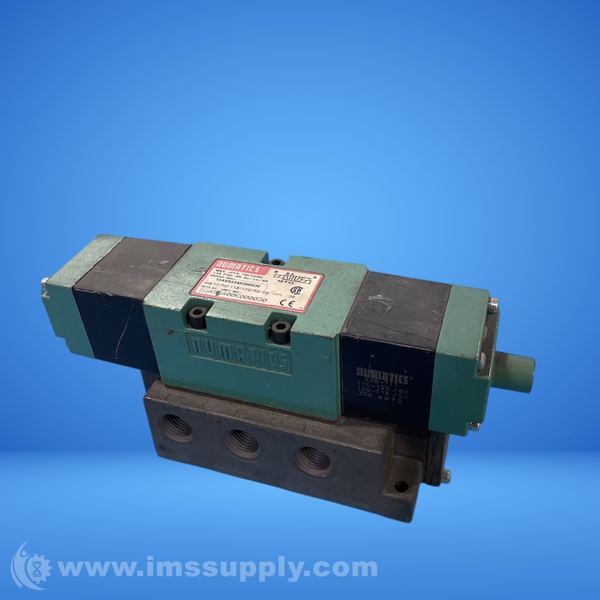

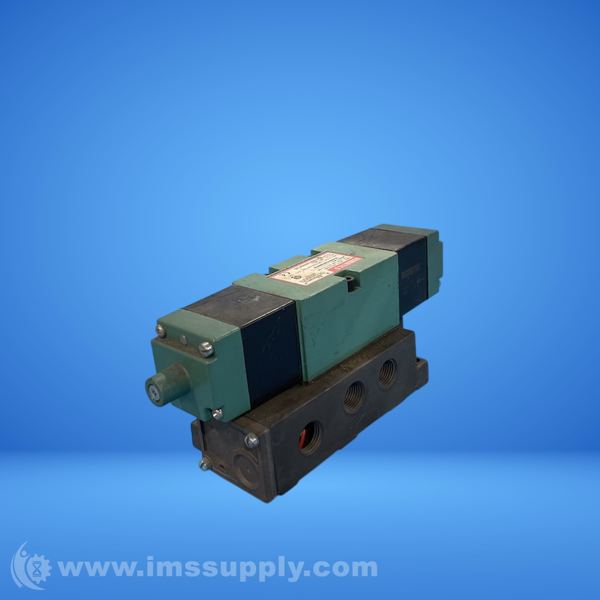

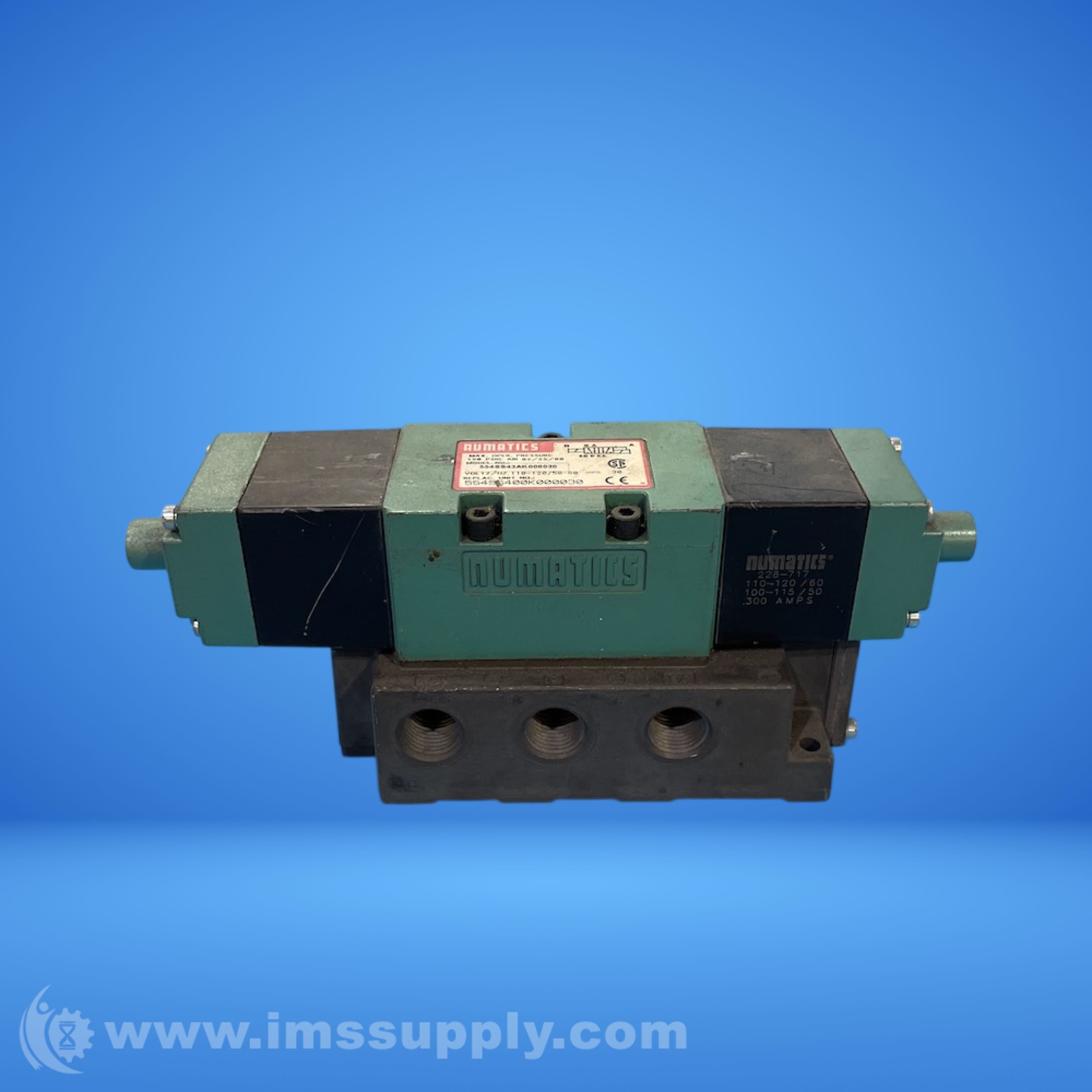

Numatics 554SS43AK000030 Solenoid Valve
Solenoid valve with 1/2" NPT ports, double direct solenoid operation, 4-way 2-position detent function, 120 VAC voltage.
Specifications
- Port Size: 1/2"
- Port Type: NPT
- Control Function: Double Direct Solenoid
- Valve Function: 4 Way 2 Position - (5/2) Detent
- Voltage: 120 VAC
- Port Location: Side Ports
- Exhaust Option: Individual Exhaust
- Wiring: Plug-in
- Speed Control: No
- Special Option: None
- Cv: 5.5
- Flow Capacity: 185 to 255 SCFM @ 80 PSIG / 3940 to 5417 NI/M @ 6 BAR
- Operating Pressure Range: 28" HG. Vacuum to 150 PSIG / Vacuum to 10 BAR
- Pilot Pressure Range: 20 to 125 PSIG / 2 Position Detented 15 to 125 PSIG
- Temperature Range (Ambient): -10 degrees F to +115 degrees F (-23 degrees C to +46 degrees C)
- Weight: 2.12 kgs / 7.00 lbs
Used (Special):
Comes with manifold.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
