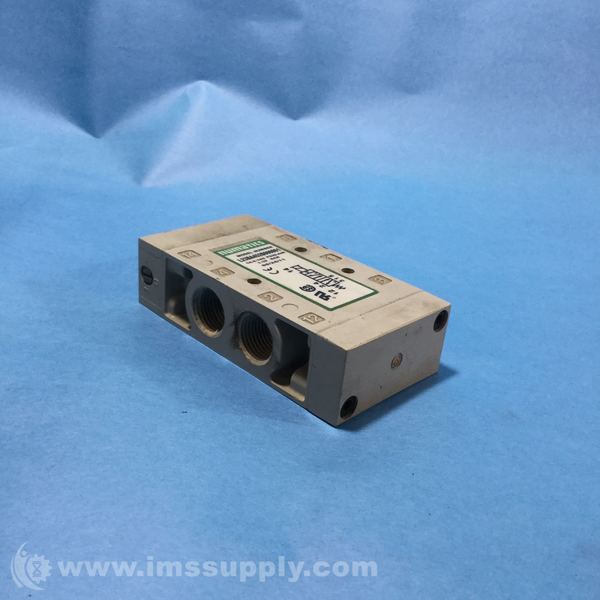

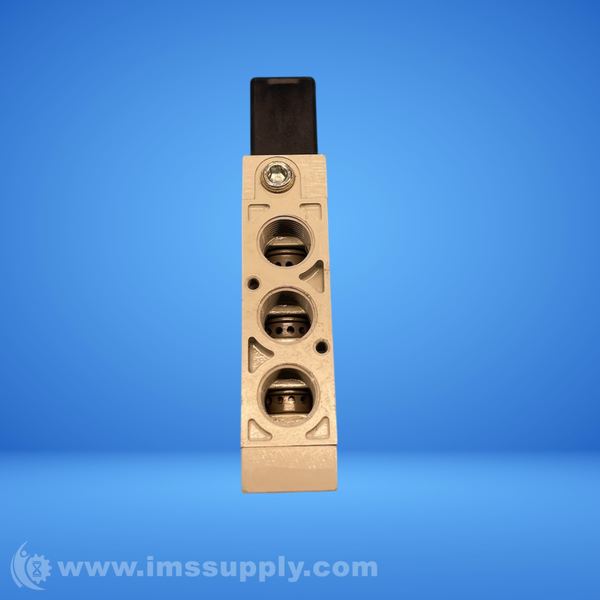

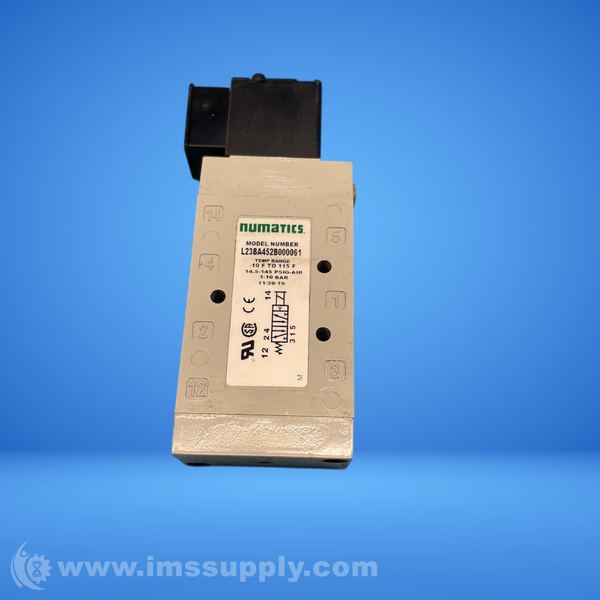

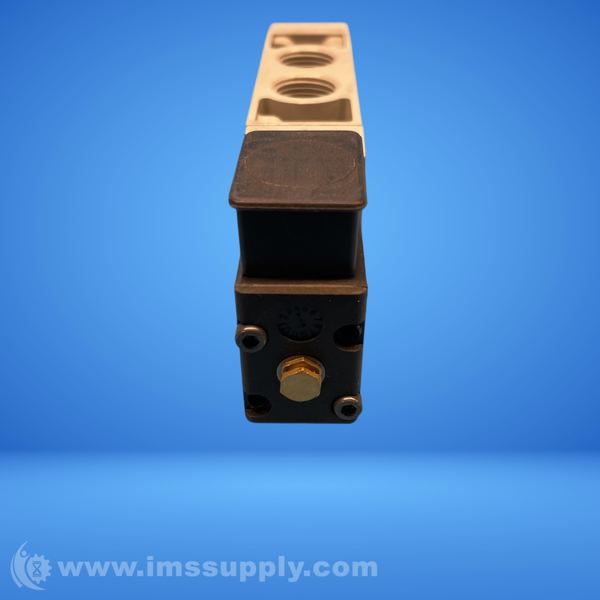

NUMATICS L23BA452B000061 4/2 SOLENOID VALVE
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: L23BA452B000061
IMS Product Code: 1804991
Packaging: Sold Individually
Description:
Numatics L23BA452B000061 4/2 Solenoid Valve
Pneumatic solenoid valve with single solenoid pilot actuation, 4-way 2-position spring return function, and 3/8" NPT ports. Hardwired with 24 VDC voltage.
Specifications
- CV: 1.7
- Flow Capacity: 79 SCFM @ 80 PSIG / 1674 NI/M @ 6 BAR
- Main Valve Operating Pressure Range: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
- Pilot Pressure Range: 14.5 TO 150 PSIG / 1 TO 10 BAR
- Temperature Range (Ambient): -10�F TO +115�F / -23�C TO +46�C
- Port Size: 3/8"
- Port Type: NPT
- Control Function: Single Solenoid Pilot
- Valve Function: 4 Way 2 Position - (5/2) Spring Return
- Voltage: 24 VDC
- Wiring: Hardwired
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 8 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
