NUMATICS P580AEED1010A00 ETHERNET/IP DLR COMMUNICATIONS MODULE
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: P580AEED1010A00
IMS Product Code: 2135512
Packaging: Sold Individually
Description:

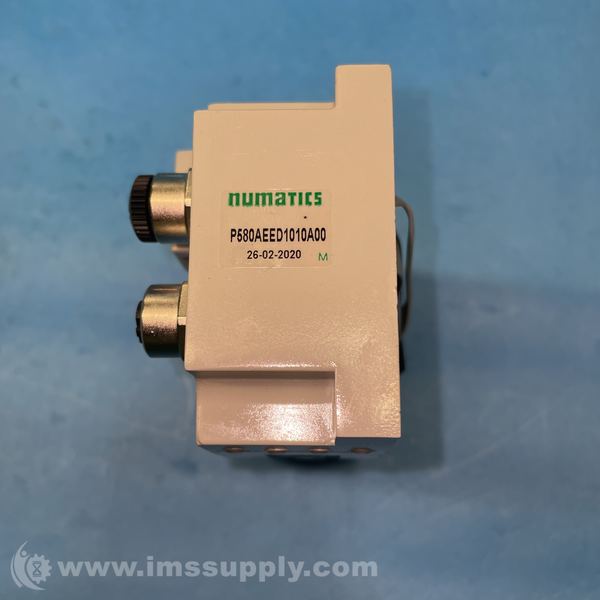

Numatics P580AEED1010A00 EtherNet/IP DLR Communications Module
EtherNet/IP communications module from the 580 Series, designed for high-performance pneumatic valve manifolds. It features Device Level Ring (DLR) support for network redundancy, supports up to 32 solenoid outputs, and includes diagnostic LEDs and an embedded web server for advanced system monitoring and control in industrial automation environments.
Specifications
- Series: 580 Series
- Function: EtherNet/IP Communications Module
- Protocol: EtherNet/IP with Device Level Ring (DLR)
- Power Supply: 24 V DC (Node Power)
- Valve Output Capacity: 4 A
- Valve Capacity: Supports up to 32 solenoids
- Housing Material: Die-Cast Aluminum
- Ingress Protection: IP65 Rated

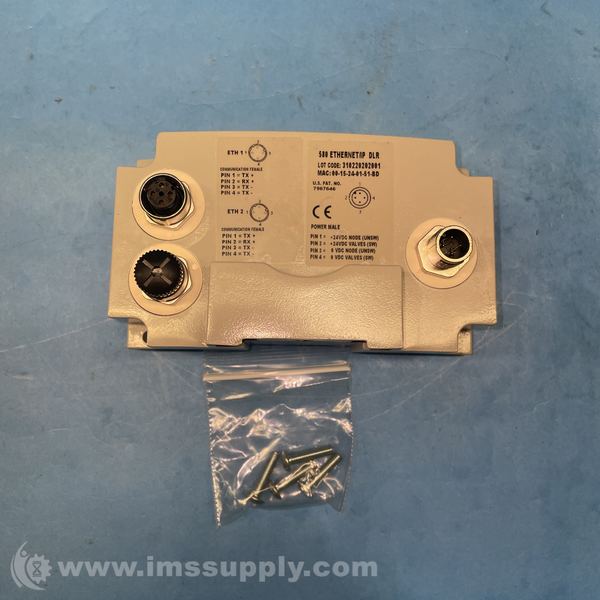

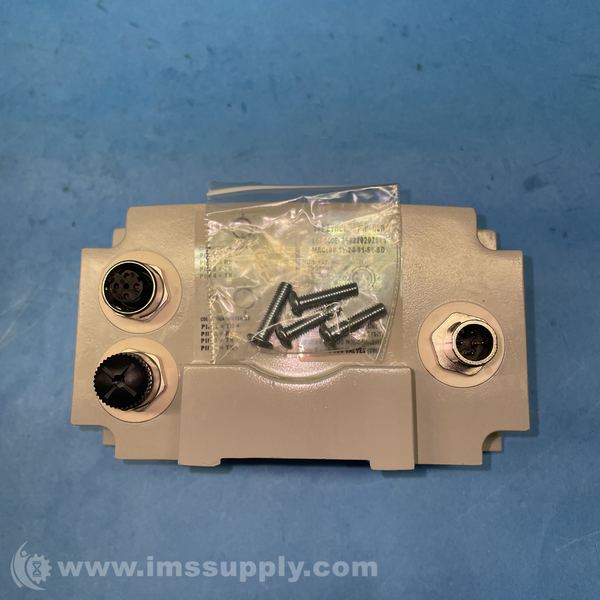

- Connectors: M12 (A-coded for power, D-coded for network)

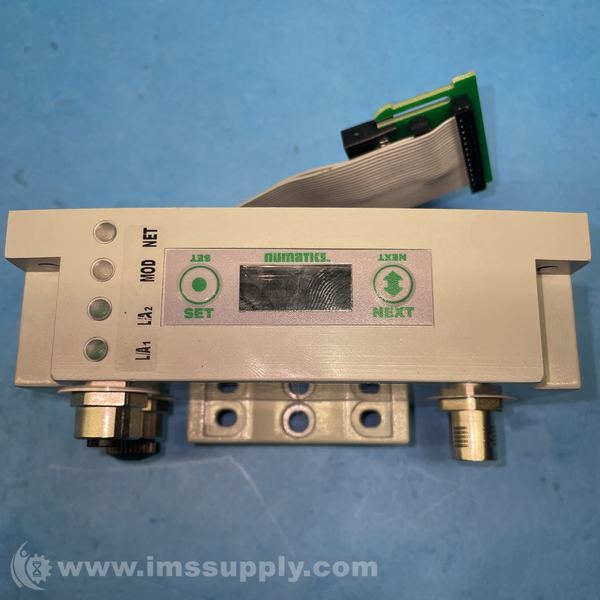

- Status Indicators: LEDs for Module, Network, Link/Activity
- Operating Temperature: -23C to 46C
- Networking Features: Integrated 2-port switch, HTTP/TFTP support, embedded web server
- Electrical Connection Type: Plug (male)
- Electrical Connection Size: M12
- Electrical Connection Number of Poles: 4-pin
- Electrical Connection Coding: A-coded
- Min. Ambient Temperature: -10 C
- Max. Ambient Temperature: 50 C
- Number of Solenoid Coils Max.: 128
- Max. Number of Valve Positions: 110
- Operational Voltage Electronics: 24 V DC
- Electronics Voltage Tolerance: -10% / +10%
- Power Consumption Electronics: 0.9 A
- Operating Voltage, Actuators: 24 V DC
- Total Current for Actuators: 4 A
- Protection Class: IP65
- Diagnosis: Short Circuit
- Weight: 0.337 kg
