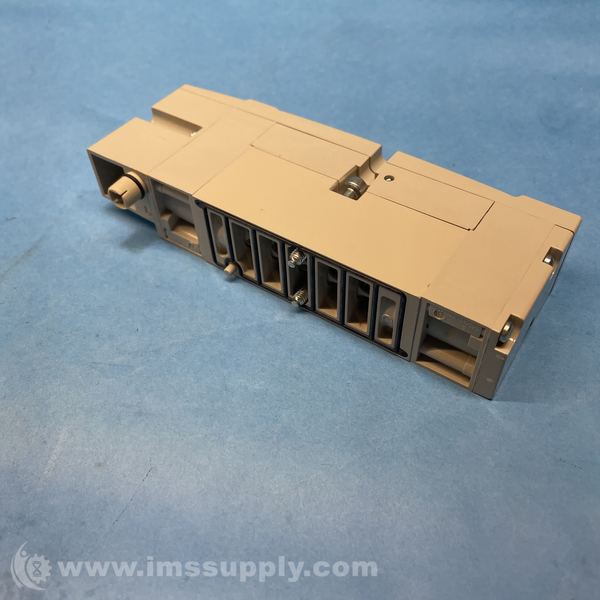

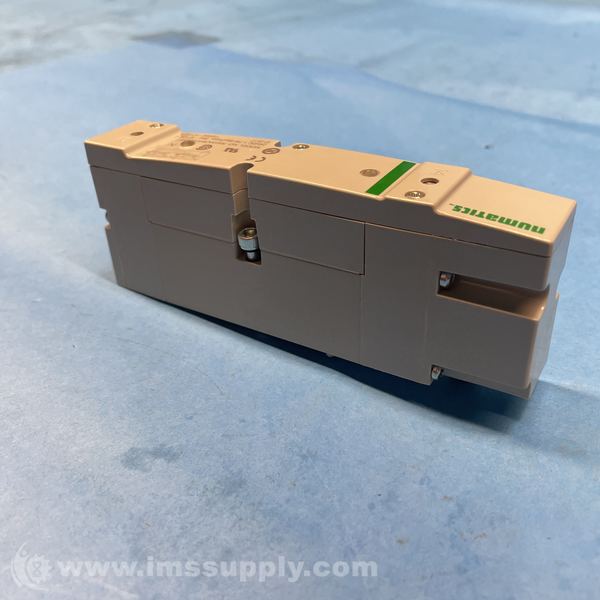

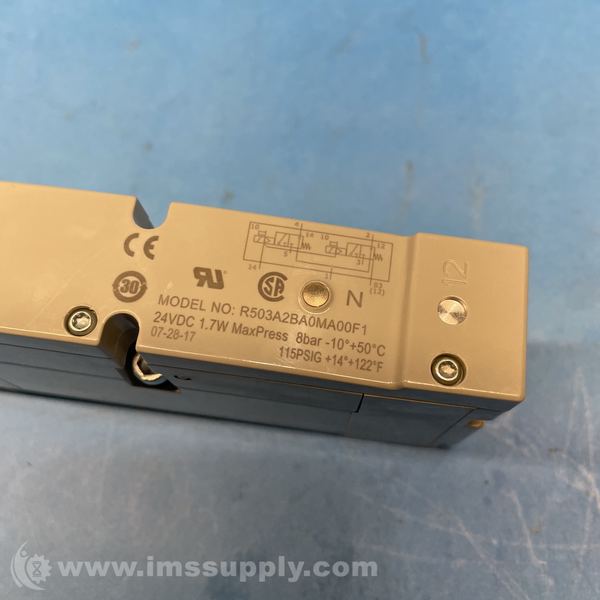

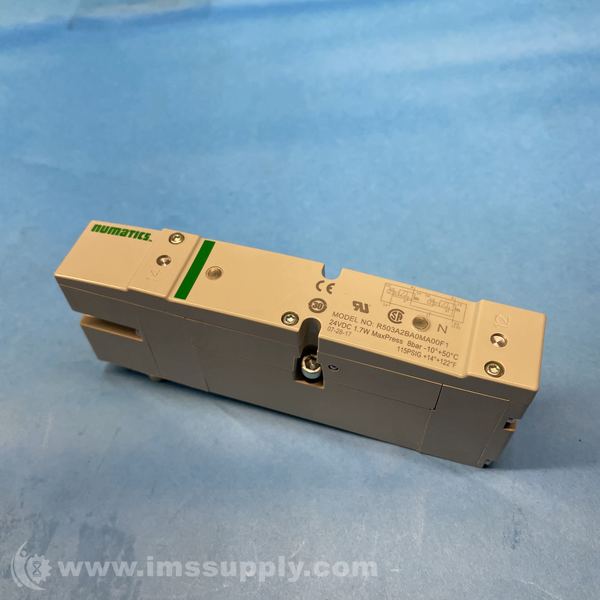

NUMATICS R503A2BA0MA00F1 PNEUMATIC VALVE
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: R503A2BA0MA00F1
IMS Product Code: 2135301
Packaging: Sold Individually
Description:
Numatics R503A2BA0MA00F1 Pneumatic Valve
Pneumatic directional control valve with ultra-high flow ratings, dual 3-way normally open function, solenoid pilot actuation, and 24 VDC voltage.
Specifications
- Control Function: Double Solenoid Pilot
- Valve Function: Dual 3 Way - Normally Open
- Voltage: 24 VDC
- Spool Type: Rubber Packed
- Wiring: Plug-in
- Product Series: 503
- Revision: Initial Release
- Actuation: Solenoid pilot w/ Flush Non-Locking Override
- Function: Dual 3-way (2 x 3/2), 14 Normally Open - 12 Normally Open
- Port Size: No port size
- Electrical: Plug-in, w/ Light, VDC
- Options: Standard (no Options)
- Working pressure min.: 2 bar
- Working pressure max: 8 bar
- Operational voltage: 24 V DC
- Voltage tolerance DC: -15% / +10%
- Protection class with connection: IP65
- Reverse polarity protection: Protected against polarity reversal
- Sealing principle: soft seal
- Power consumption DC: 1.4 W
- Duty cycle: 100 %
- Typ. switch-on time: 15 ms
- Typ. switch-off time: 20 ms
- Min. ambient temperature: -10 degrees C
- Max. ambient temperature: 50 degrees C
- Weight: 0.236 kg
- Housing material: Die cast zinc
- Max. medium temperature: 50 degrees C
- Medium: Compressed air
- Max. particle size: 50 µm
- Oil content of compressed air min.: 0 mg/m³
- Oil content of compressed air max.: 5 mg/m³
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 19 In Stock
Ships today if ordered in the next 12 hours and 14 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 14 minutes.
