OILES LFB-1215 PTFE SLEEVE BEARING
Quick Overview
Manufactured By: OILES AMERICA CORPORATION
Manufacturer Part Number: LFB-1215
IMS Product Code: 2144206
Packaging: Sold Individually
Description:

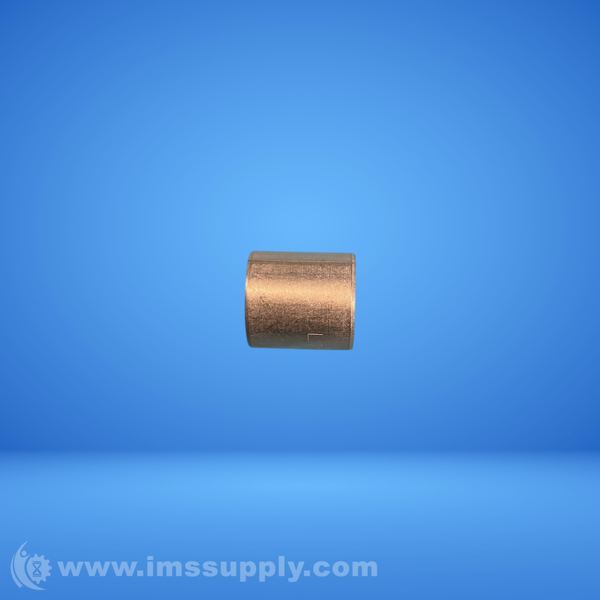

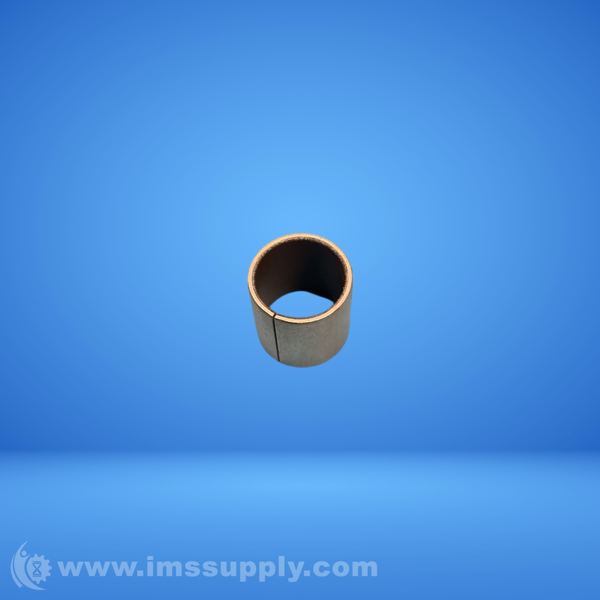

Oiles LFB-1215 PTFE Sleeve Bearing
PTFE sleeve bearing with metal backing, 12mm bore, 14mm OD, 15mm length
Specifications
- Bushing Type: Plain Sleeve
- Bushing Material: PTFE w/ Metal Backing
- Inside Diameter: 12 mm
- Outside Diameter: 14 mm
- Overall Length: 15 mm
- Maximum P Value: 49 N/mm²
- Maximum PV Value: 3.60 N/mm² - m/s
- Max V Value: 0.65 m/s
- Operating Temperature Range: -392 to +536 °F
- Material Specification: Drymet LF
- Series: LFB
- Standards Met: RoHS
- Product Type: Die & Mold Plain-Bearings
- Additional Details: Lead Free
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
