OILES 70B-1620 PLAIN BEARING
Quick Overview
Manufactured By: OILES CORPORATION
Manufacturer Part Number: 70B-1620
IMS Product Code: 2139180
Packaging: Sold Individually
Description:

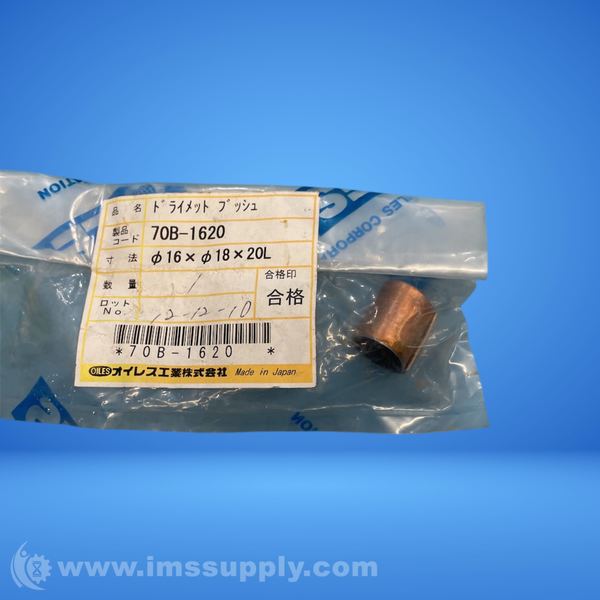

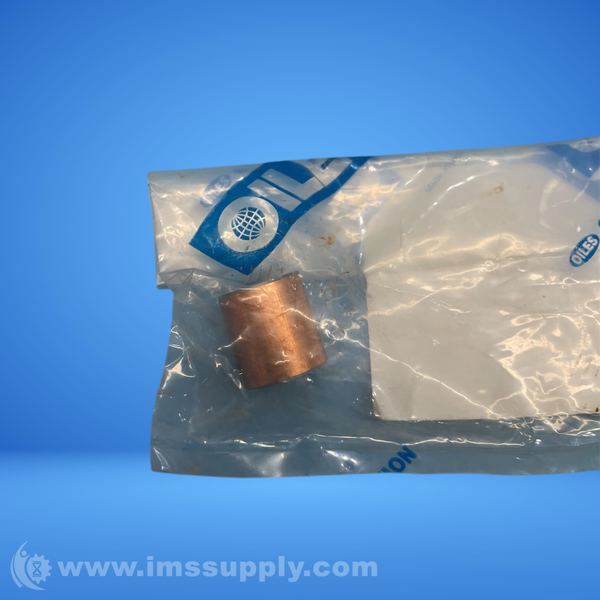

Oiles 70B-1620 Plain Bearing
Die & Mold Plain-Bearing - 16 mm Bore, 18 mm OD, 20 mm Length, Multi-layer Oil-Impregnated Polyacetal with Metal Back Material
Specifications
- Bushing Type: Plain Sleeve
- Bushing Material: Multi-layer Oil-Impregnated Polyacetal with Metal Back
- Inside Diameter: 16 mm
- Outside Diameter: 18 mm
- Overall Length: 20 mm
- Maximum P Value: 24.5 N/mm2;Static 137 N/mm2
- Maximum PV Value: 3.25 N/mm2 x m/s
- Max V Value: 1.15 m/s
- Operating Temperature Range: -40 to +248 degrees F
- Material Specification: Drymet ST
- Standards Met: RoHS
- Series: 70B
- Product Type: Die & Mold Plain-Bearings
- Material: Multi-layer
- Mounting Shaft Fits: h7
- Mounting Hole Fits: H7
- Max. Allowable Surface Pressure Dimension P (n/mm2): 24.5
- Max. Allowable Velocity Dimension V (m/s): 1.15
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships on Monday, November 17, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
