OILES LFF-2525 FLANGED BUSHING
Quick Overview
Manufactured By: OILES
Manufacturer Part Number: LFF-2525
IMS Product Code: 2171552
Packaging: Sold Individually
Description:

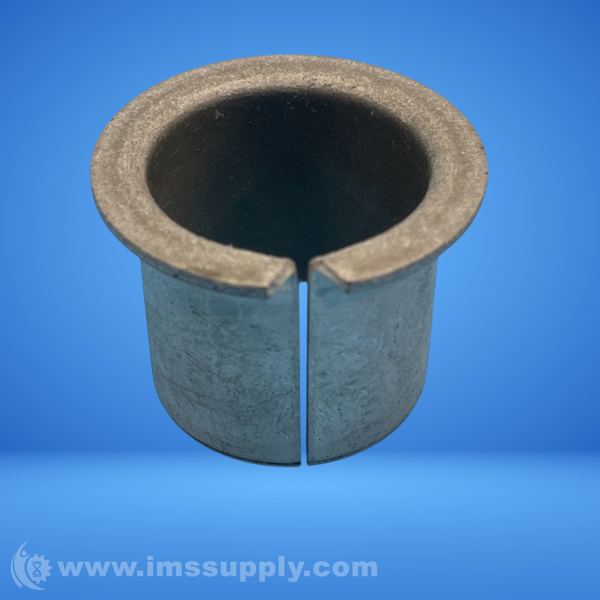

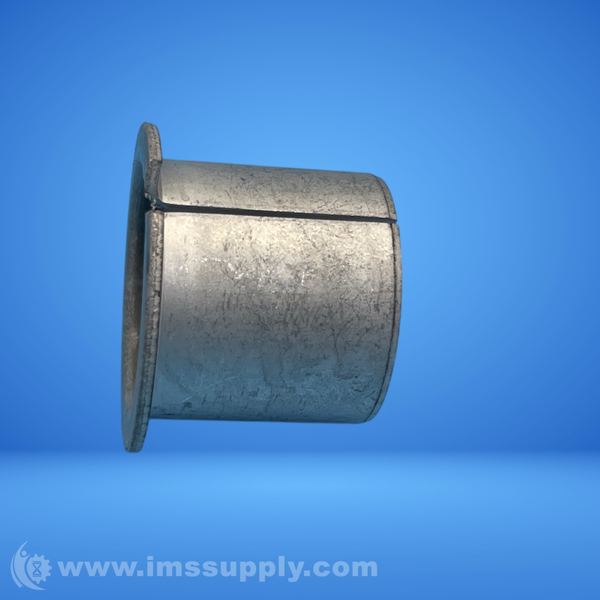

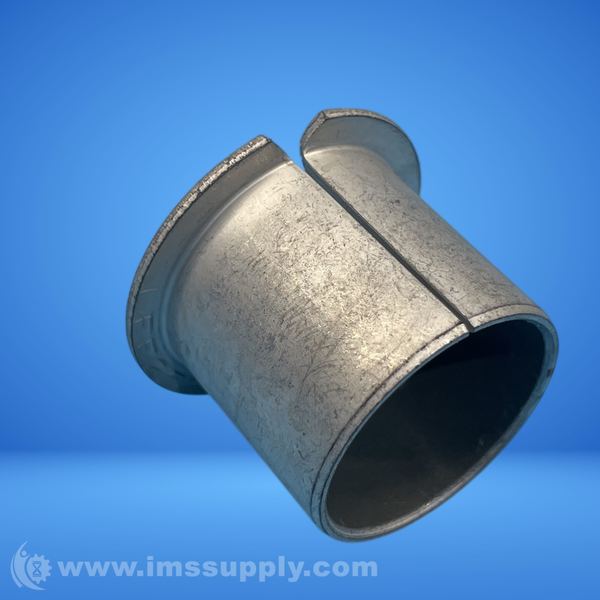

OILES LFF-2525 Flanged Bushing
DryMet LF flange bushing (LFF) with excellent chemical resistance, can be used without oil, has thin walls, and is lightweight.
Specifications
- Inner Diameter: 25 mm
- Outer Diameter: 28 mm
- Length: 25 mm
- Type: Flange Type
- Operating Temperature Range: -200 to +280 degrees Celsius
- T2 Dimension: 1.5 mm
- Lubrication Method: Dry Lubrication
- F Dimension: 36 mm
- T1 Thickness: 1.5 mm
- Length Tolerance: 0 to -0.3 mm
- Thickness Tolerance: 0 to -0.030 mm
- Permissible PV Value: 3.60 N/mm2*m/s [2200 kgf/cm2*m/min]
- Maximum Permissible Surface Pressure P: 49.0 N/mm2 [500 kgf/cm2]
- Maximum Permissible Speed V: 0.65 m/s [39 m/min]
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 6 In Stock
Ships today if ordered in the next 8 hours and 58 minutes.
