OILES SPB-202840 STRAIGHT BUSHING
Quick Overview
Manufactured By: OILES
Manufacturer Part Number: SPB-202840
IMS Product Code: 1911845
Packaging: Sold Individually
Description:

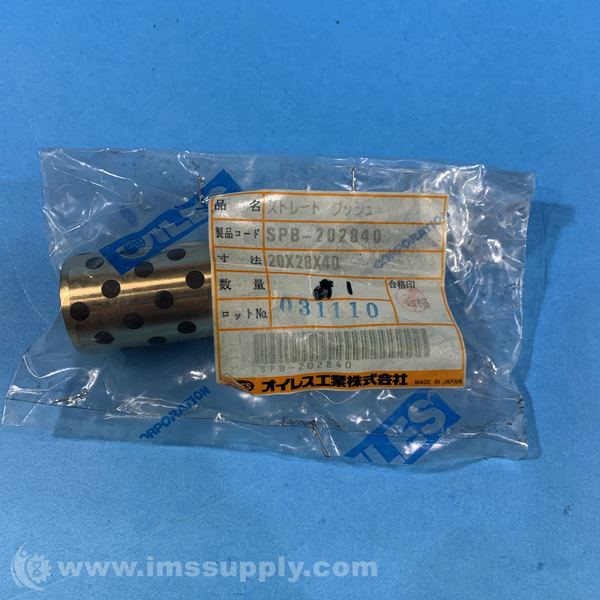

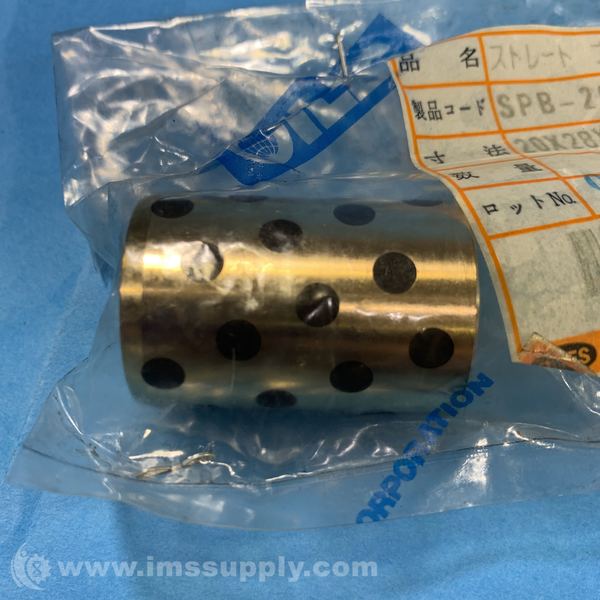

OILES SPB-202840 Straight Bushing
Straight bushing made of high-strength brass with embedded solid lubricant material. It is serviceable without lubrication and offers high performance under high-load and low-speed operations. The bushing has superior wear resistance in applications where oil film is seldom produced, such as reciprocating motions, oscillation, frequent starts, and stops.
Specifications
- Bore Diameter: 20 mm
- Outside Diameter: 28 mm
- Overall Length: 40 mm
- Bearing Material: OILES 500SP1 SL1 High-strength Brass with Embedded Solid Lubricant
- Sleeve Bearing Type: Plain Sleeve
- Material Specification: 500SP1 SL1
- Series: SPB
- Maximum PV Value: Dry 1.65, Periodic Lubrication 3.25 N/mm2 x m/s
- Maximum P Value: 29 N/mm2;Static 150 N/mm2
- Max V Value: Dry 0.50;Periodic lubrication 1.0 m/s
- Operating Temperature Range: Dry -40 to +572, Periodic Lubrication -40 to +302 degrees F
- Standards Met: RoHS
- Additional Details: Lead Free
