OILES SPB-5065100 GUIDE BUSHING
Quick Overview
Manufactured By: OILES
Manufacturer Part Number: SPB-5065100
IMS Product Code: 2141264
Packaging: Sold Individually
Description:

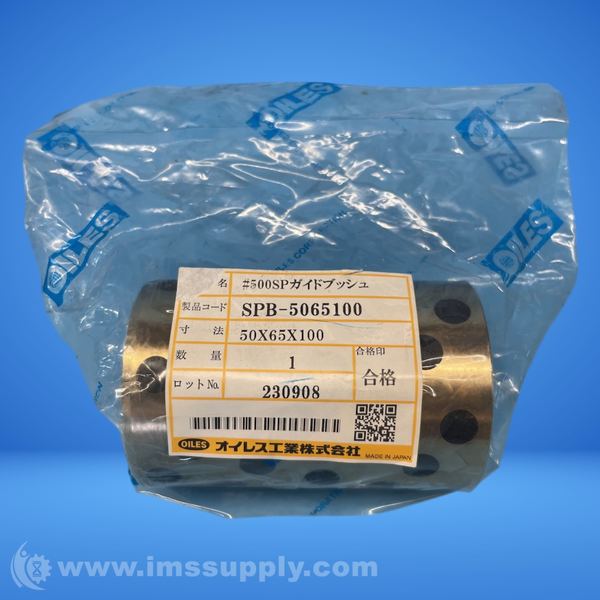

OILES SPB-5065100 Guide Bushing
A self-lubricating bronze bushing made of CuZn25Al5+Graphite, part of the 500 SP1 Series.
Specifications
- Mounting Shaft Fits: e7
- Mounting Hole Fits: H7
- Max. Allowable Surface Pressure Dimension P: 29 n/mm2
- Max. Allowable Velocity Dimension V: 0.5 m/s
- Maximum Allowable PV Value: 1.65 N/mm2 � m/s
- Material: CuZn25Al5+Graphite
- Lubrication: Self-lubricating
- Maximum Temperature: 300 degrees
- Minimum Temperature: -40 degrees
- Precision Rating: P6
- Hardness: >210
- Maximum Pv: 4MPa.m/s
