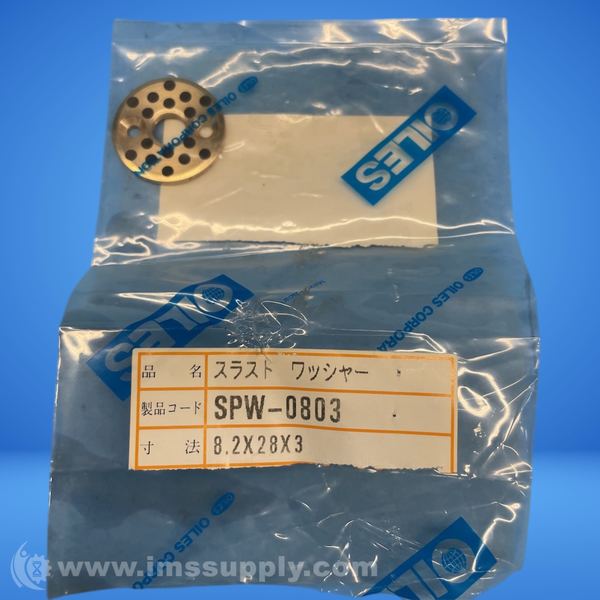

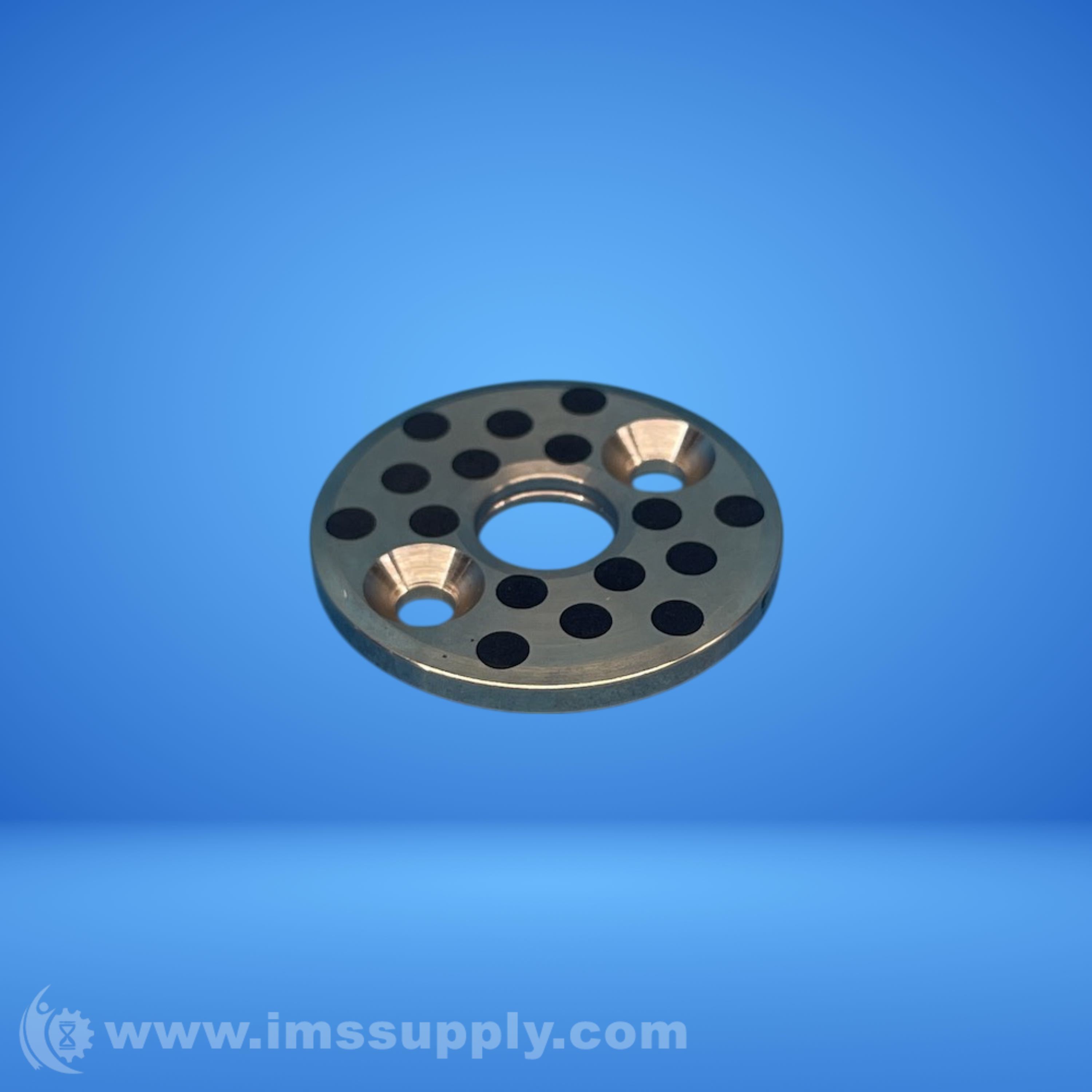

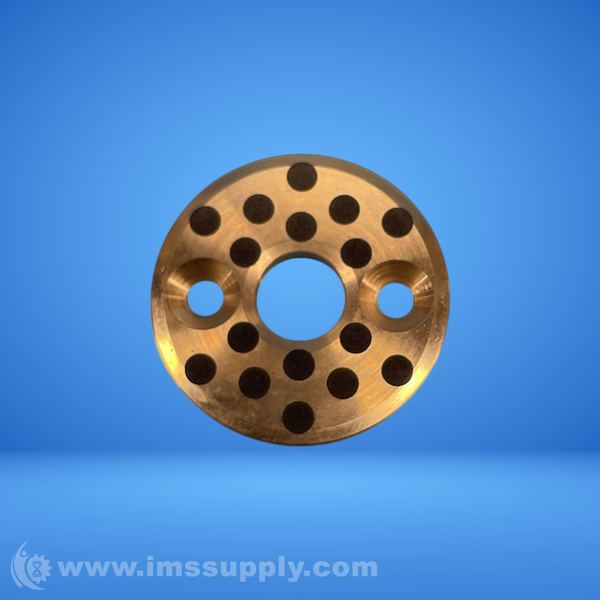

OILES SPW-0803 THRUST WASHER
Quick Overview
Manufactured By: OILES
Manufacturer Part Number: SPW-0803
IMS Product Code: 2144314
Packaging: Sold Individually
Description:
OILES SPW-0803 Thrust Washer
Thrust washer made of high-strength brass with embedded solid lubricant, 8.2 mm ID, 28 mm OD, 3 mm thickness.
Specifications
- Bearing Material: OILES 500SP1 SL1 High-Strength Brass with Embedded Solid Lubricant
- Inside Diameter: 8.2 mm
- Outside Diameter: 28 mm
- Thickness: 3 mm
- Material Specification: 500SP1 SL1
- Series: SPW
- Product Type: Plain Sleeve Thrust Washers
- Standards Met: RoHS
- Operating Temperature Range: Dry -40 to +572 degrees F, Periodic Lubrication -40 to +302 degrees F
- Maximum PV Value: Dry 1.65 N/mm2 x m/s, Periodic Lubrication 3.25 N/mm2 x m/s
- Maximum P Value: 29 N/mm2; Static 150 N/mm2
- Max V Value: Dry 0.50 m/s; Periodic lubrication 1.0 m/s
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 17 minutes.
