OMRON D4N-2120 SAFETY LIMIT SWITCH
Quick Overview
Manufactured By: OMRON CORPORATION
Manufacturer Part Number: D4N-2120
IMS Product Code: 2137557
Packaging: Sold Individually
Description:

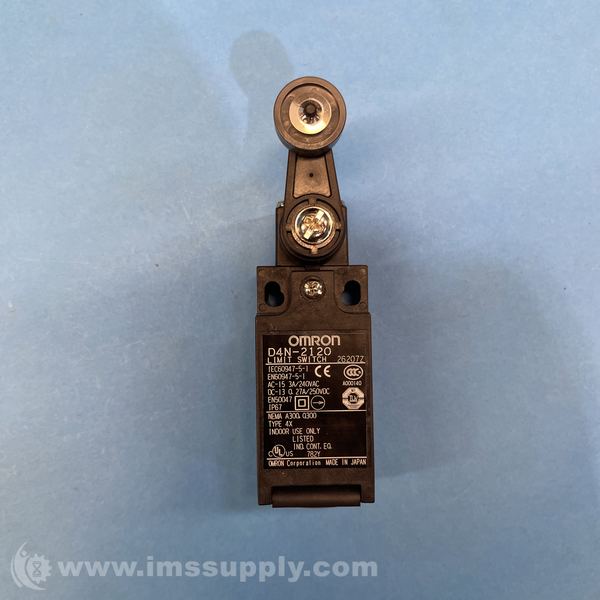

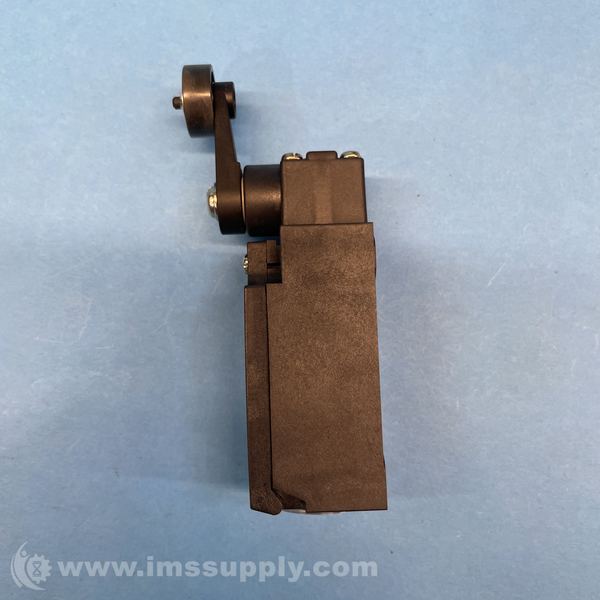

Omron D4N-2120 Safety Limit Switch
Safety Limit Switch with Roller Lever Actuator, Snap Action Mechanism, 1NC/1NO Contact Configuration, G1/2 Conduit
Specifications
- Actuator: Roller lever 17.5 dia. x 6.8 Resin lever, Resin roller R26
- Operating mechanism: Snap action
- Contact form: 1NC/1NO
- Degree of protection: IP67
- Conduit: G1/2
- Number of conduit: 1
- Ambient temperature: Operating: -30 to 70 degrees C (with no icing)
- Ambient humidity: 95 %RH max.
- Permissible operating frequency: 30 operations / 1 minute max.
- Contact resistance (Initial value): 25 mO max.
- Insulation resistance: 100 MO min.
- Impulse withstand voltage: Between each terminal of the same polarities: 2.5 kV Between each terminal of the different polarities: 4 kV Between each terminal and non-live-metallic part: 6 kV
- Durability: Mechanical: 15,000,000 operations min.
- Vibration resistance: Malfunction: 10 to 55 Hz, 0.75 mm single amplitude
- Shock resistance: Destruction: 1000 m/s2 Malfunction: 300 m/s2
- Classification of protection against electric shock: Class II (Double insulation)
- Operating Force (OF): Standard value 5 N max.
- Release Force (RF): Standard value 0.5 N min.
- Pre-Travel (PT): Standard value 18 to 27 degrees
- Movement Differential (MD): Standard value 14 degrees max.
- Over-Travel (OT): Standard value 40 degrees min.
- Total Travel (TT): Reference value 80 degrees
- Direct Opening Force: Standard value 20 N min.
- Direct Opening Travel: Standard value 50 degrees min.
- Connection method: Terminal block
- Cable entry direction: Bottom

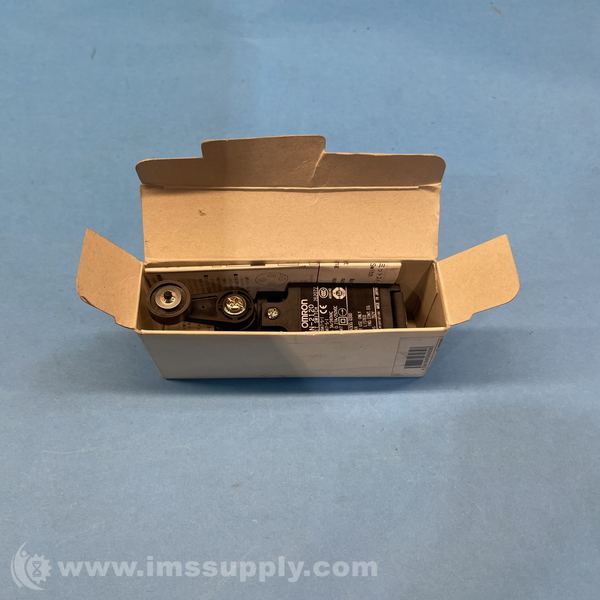

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
